1" Threaded, Spirovent Jr. Vertical Air Eliminator

Spirotherm

Brand: Spirotherm

Mfr Part#: VJV100

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$117.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs (1)

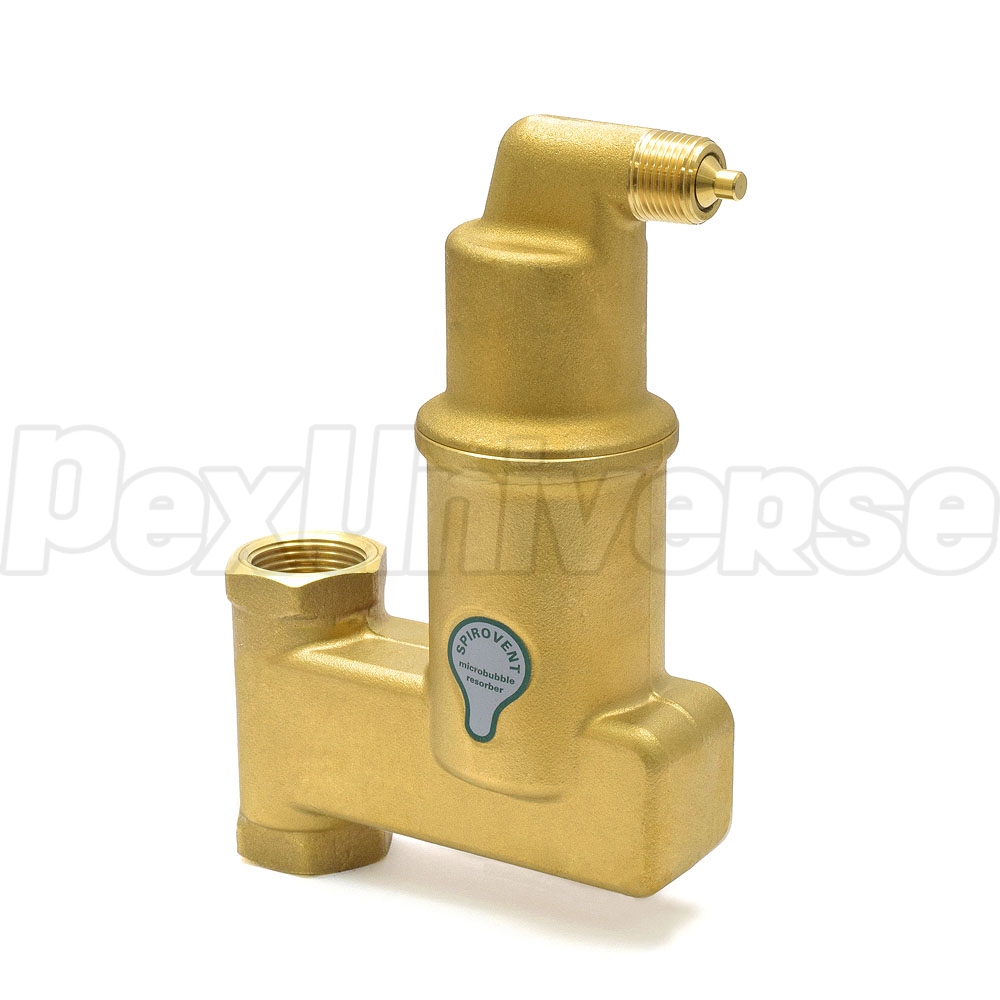

The Spirovent Jr Vertical Air Eliminator (Spirotherm model VJV100) has 1" threaded connections and employs a patented Spirotube coalescing medium that “scrubs” the air from the system fluid.

Spirovent Jr series, vertical air eliminators are best suited for residential and light commercial applications, especially in locations with low ceilings, such as basements. Easy to install, straight in-line design, solid brass construction, integral patented air release mechanism and a 20 year limited warranty.



Installation manual included.


Technical Specifications:

  • Connections: 1" FNPT threaded;
  • Max. operating pressure: 150 PSI;
  • Max. temperature: 270F;
  • Flow at 4ft/sec. velocity: 10 GPM;
  • Weight: 5.0 lbs.

Warranty:

20 year limited warranty by the manufacturer.
No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Will this air vent work in a situation where the pex piping is above the manifold?
Read 1 answer
Yes, as long as the air eliminator is installed at the highest point in the system.
Answered on 7/3/2012 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
