0010 Circulator Pump w/ IFC, 1/8 HP, 115V

Taco

Brand: Taco

Mfr Part#: 0010-F3-1IFC

UPC#: 687752552270

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$224.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs (1)

Cast Iron Taco 0010-F3-1IFC Circulator Pump with an Integral Flow Check (IFC) is designed to reduce installation costs when using Taco 0010 circulators. The bulit-in IFC increases the flow performance when compared to regular in-line check valve. Taco 0010-F3-1IFC model can be used for medium head, medium/higher flow residential or light commercial applications such as hydronic heating, radiant floor heating, and hydro-air fan coils. Both the IFC (Integral Flow Check) and circulator pump cartridge are easily accessed for service and eliminate the need for replacing the entire unit.



Taco 0010-F3-1IFC circulator replaces:

Grundfos UPS15-58FC @ spd 3.



Applications:
• Hydronic Heating/Cooling
• Radiant Heating
• Zoning with Pumps
• Hydro-Air Fan Coils

• And others

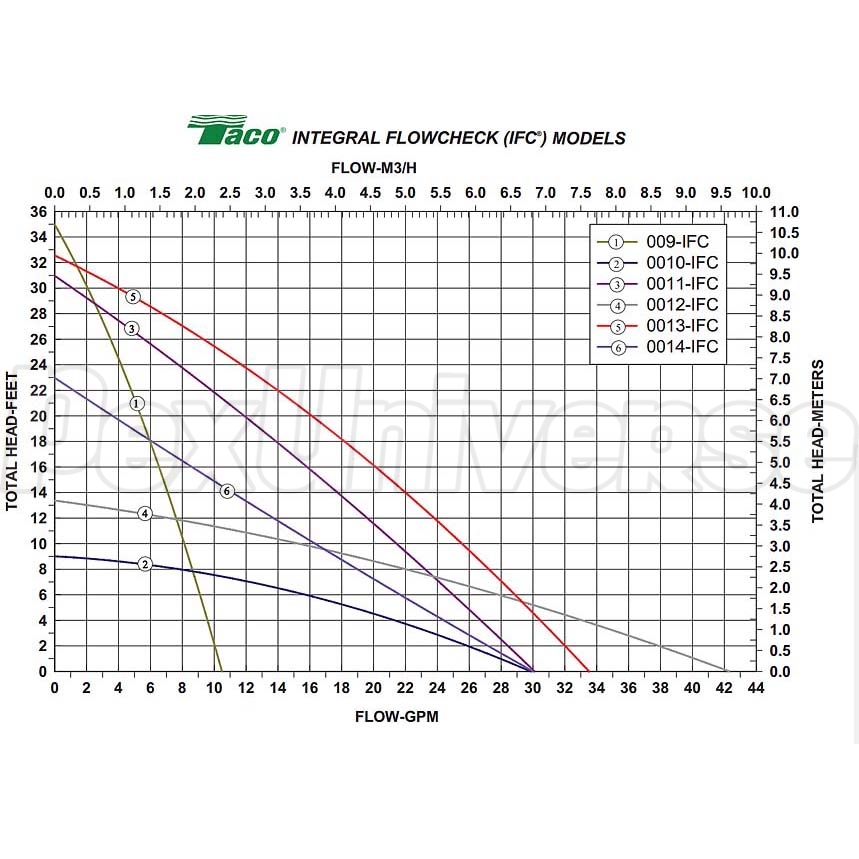

Performance Data:
Flow Range: 0 – 30 GPM
Head Range: 0 – 9 Feet
Minimum Fluid Temperature: 40˚F (4˚C)
Maximum Fluid Temperature: 230°F (110˚C)
Maximum Working Pressure: 125 psi
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged



Electrical Data:
Voltage: 115V;

Hertz: 60Hz;

Phase: 1;

Amps: 1.10A;

HP: 1/8HP;



Warranty:
3 year manufacturer's warranty.

No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
can this pump be controlled directly by a thermistate. or do you have a similar one that is
Read 1 answer
Taco 0010-F3-1IFC cannot be controlled directly by a thermostat. You'll need a switching relay, such as Taco's SR-501.
Answered on 12/10/2013 by PexUniverse Customer Service
