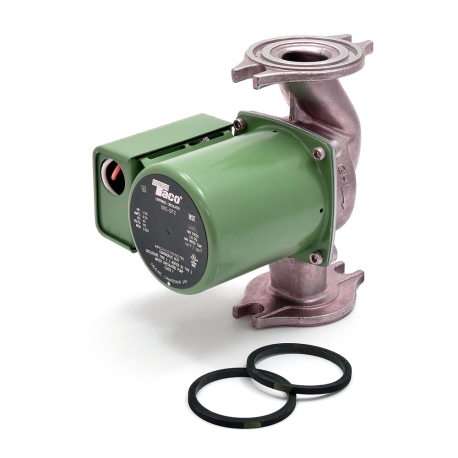

005 Stainless Steel Circulator Pump, 1/35 HP, 115V

Taco

Brand: Taco

Mfr Part#: 005-SF2

UPC#: 687752592207

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$236.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews (1)
  • FAQs

Taco 005-SF2 Stainless Steel circulator pump is designed for a wide range of residential and light commercial water circulating applications. It’s unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design of the Taco 005-SF2 pump is ideal for high efficiency jobs.

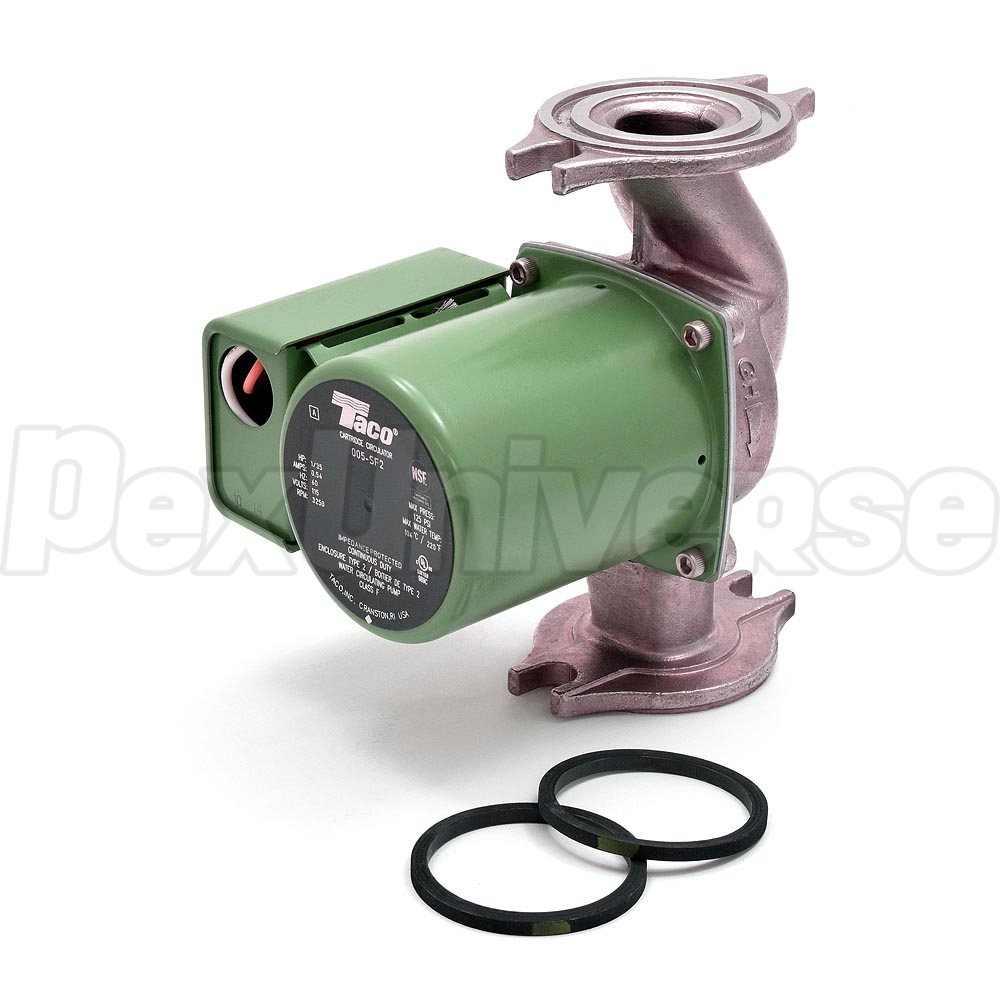

Gaskets (O-rings) included;



Applications:
Hydronic Heating/Cooling;
Radiant Heating;
Indirect Water Heaters;
Domestic Water Recirculation;
Solar Systems;

And many others.

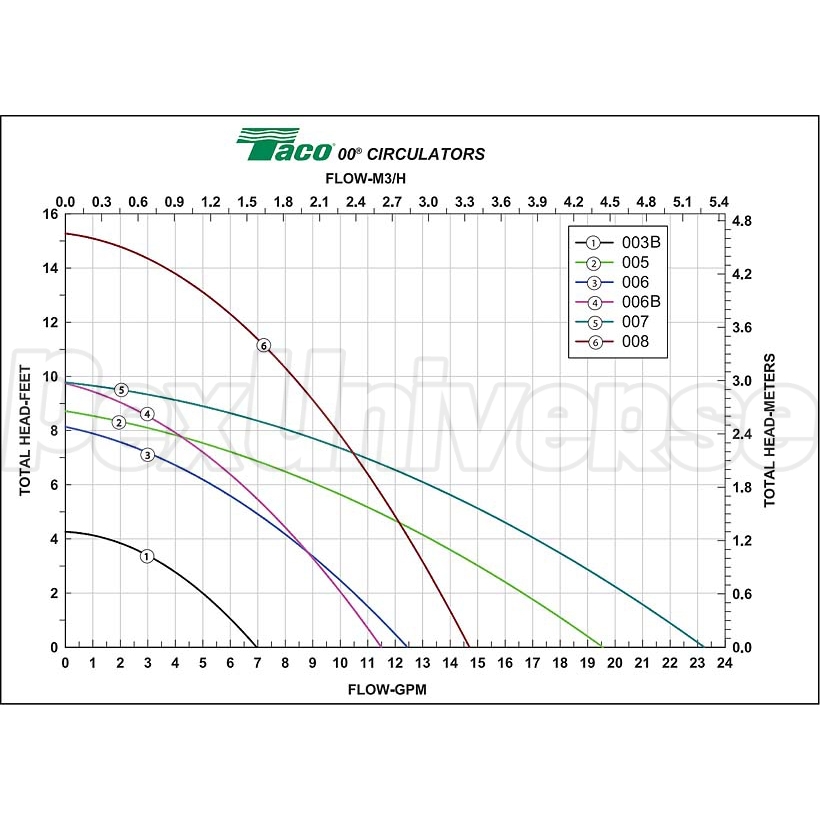

Performance Data:
Flow Range: 0 – 19 GPM
Head Range: 0 – 9 Feet
Minimum Fluid Temperature: 40°F (4°C)
Maximum Fluid Temperature, Cast Iron: 230°F (110°C)
Maximum Working Pressure: 125 psi
Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged



Electrical Data:
Voltage: 115V;

Hertz: 60Hz;

Phase: 1;

Amps: 0.54A;

HP: 1/35HP;



Warranty:
3 year manufacturer's warranty.

005 Stainless Steel Circulator Pump, 1/35 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.

Taco Circulating Pump
By RJ (from San Antonio, TX) on 1/21/2014
Pump used in hot water loop to master bathroom shower, tub and other fixtures.Works great. Instructions could be more clearer in stating that the direction of flow arrow is toward the hot water heater source.
