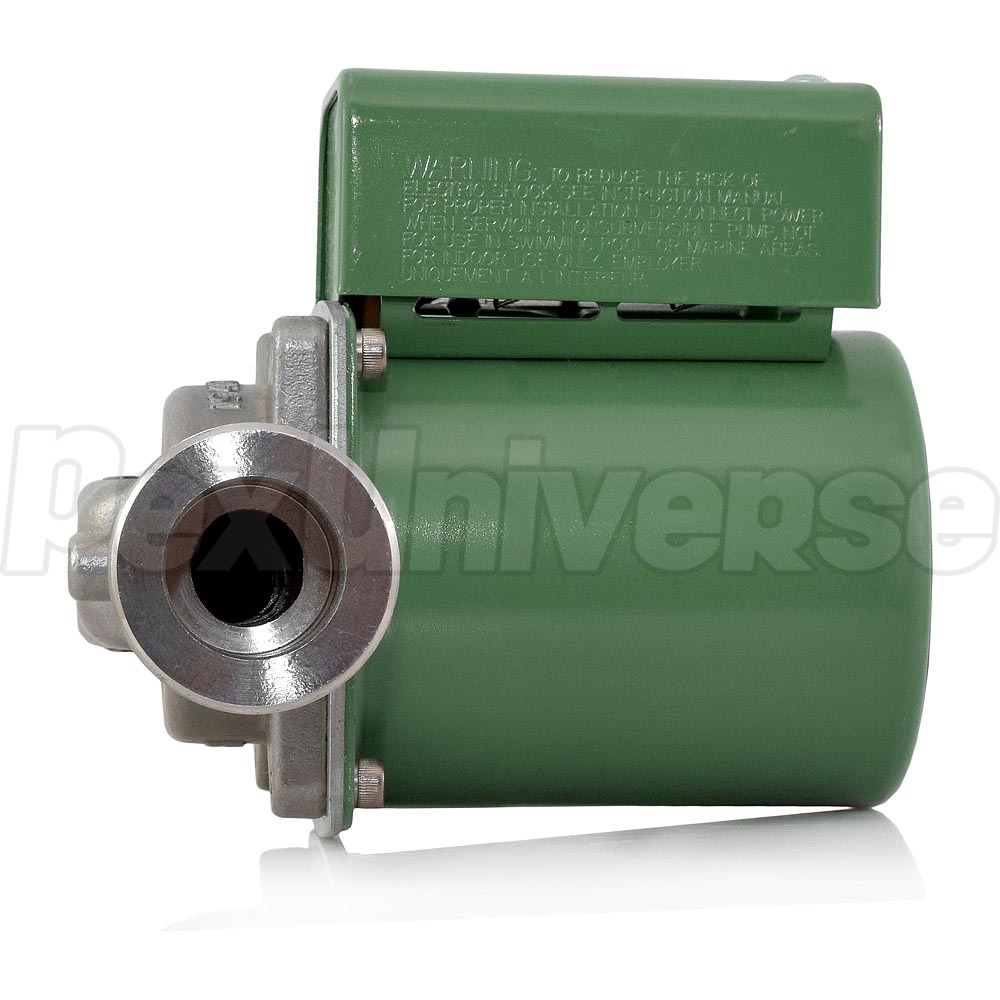

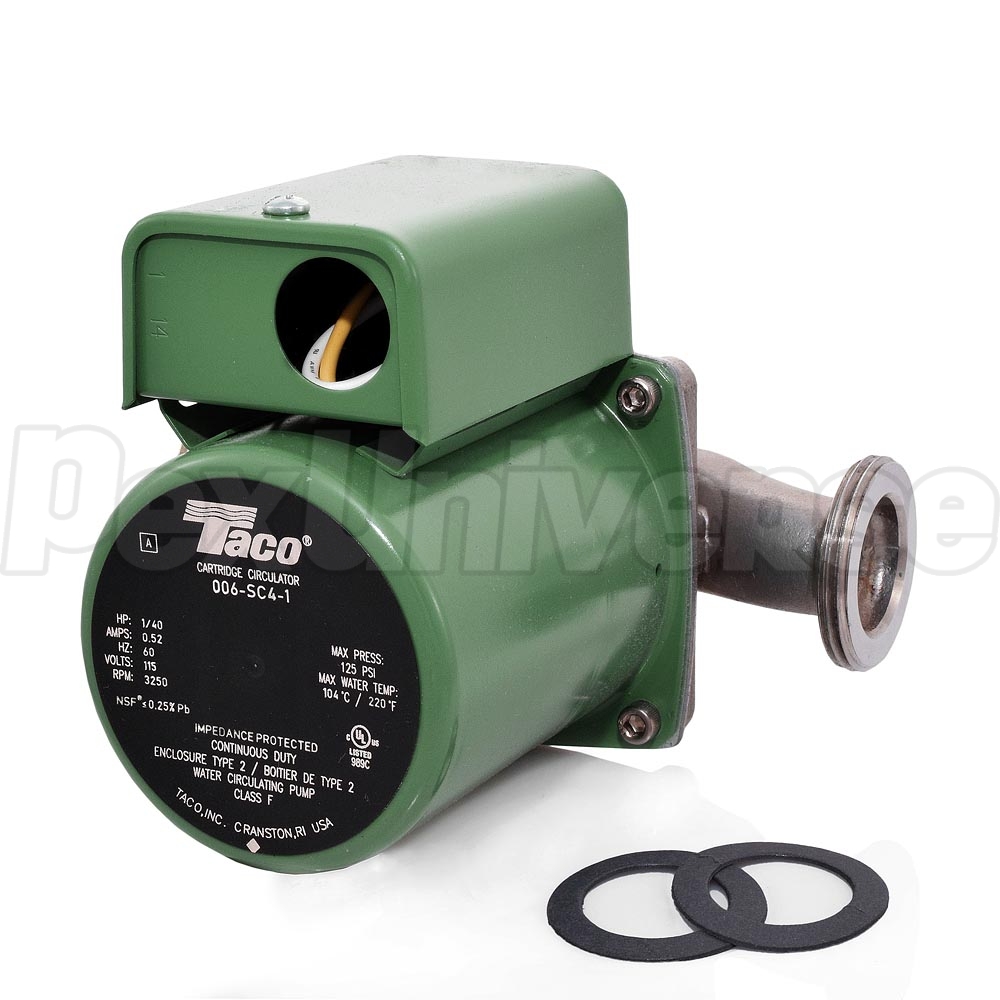

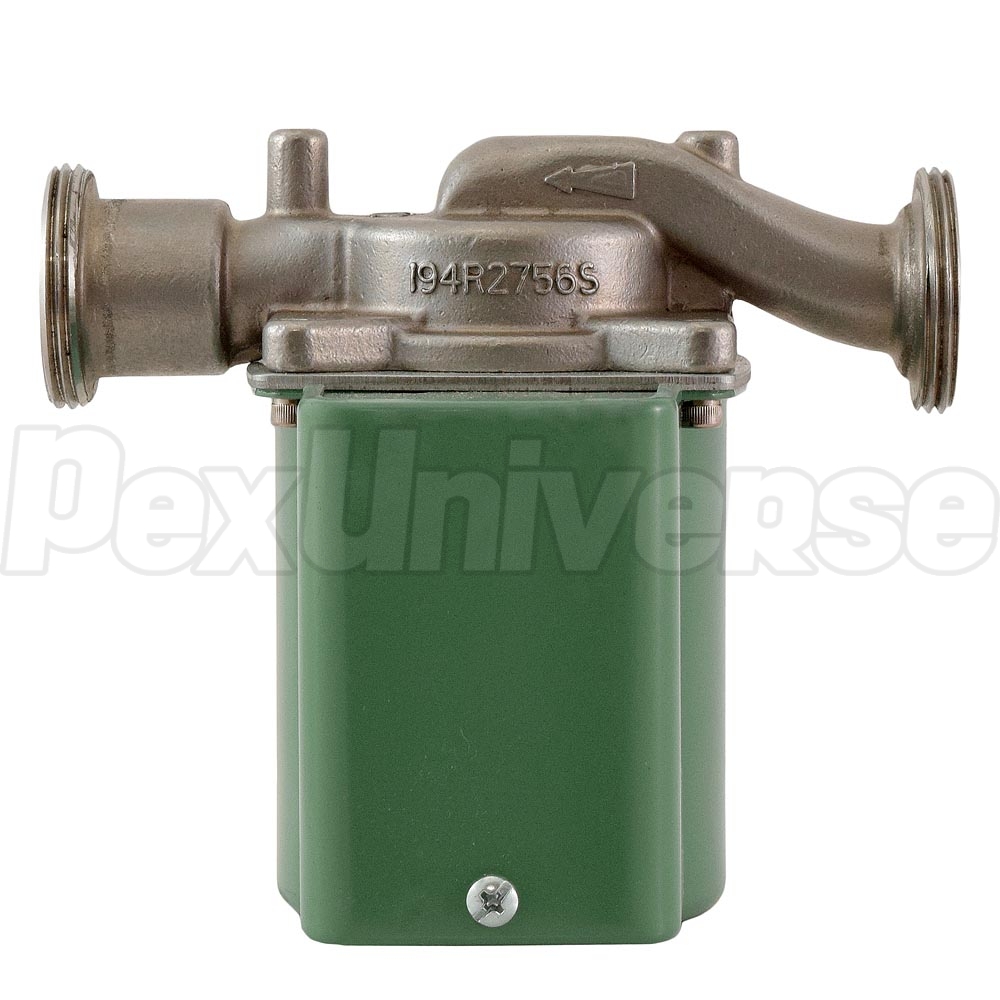

Taco 006-SC4-1 Stainless Steel Circulator Pump, 1/40 HP (1-1/4" Union Connections)

Taco 006-SC4-1 Stainless Steel Circulator Pump is the 006 series Taco pump with stainless steel housing and 1-1/4" union connections on both inlet and outlet. Taco 006-SC4-1 model circulator pump is designed for circulating hot or chilled fresh water in open or closed loop applications. Common uses include radiant and hydronic heating, chilled water cooling, domestic hot water systems, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications.
Taco 006-SC4-1 Circulator Pump features a unique replaceable cartridge which allows for easy service, instead of replacing the entire circulator. This Taco pumps is compact, direct-drive, features low power consumption and is ideal for high-efficiency jobs.

Taco 006-SC4-1 replaces an older Taco 006-BC4 model.

Applications:

Domestic Hot Water Recirculation;

Hydronic Heating / Cooling;

Radiant Heating;

Heat Recovery Units,

Solar;

And many others;

Features:

• Standard High Capacity Output-Compact Design;
• Quiet, Efficient Operation;
• Direct Drive-Low Power Consumption;
• Unique Replaceable Cartridge Design-Field Serviceable;
• Self-Lubricating;
• No Mechanical Seal;
• Unmatched Reliability -Maintenance Free;
• Bronze or Stainless Steel Construction with Sweat, Threaded or Union Connections;
• Certification: cULus;

Technical Specifications:

• Horsepower: 1/40;
• RPM: 3250;
• Connection: Union;
• Ph: 1;

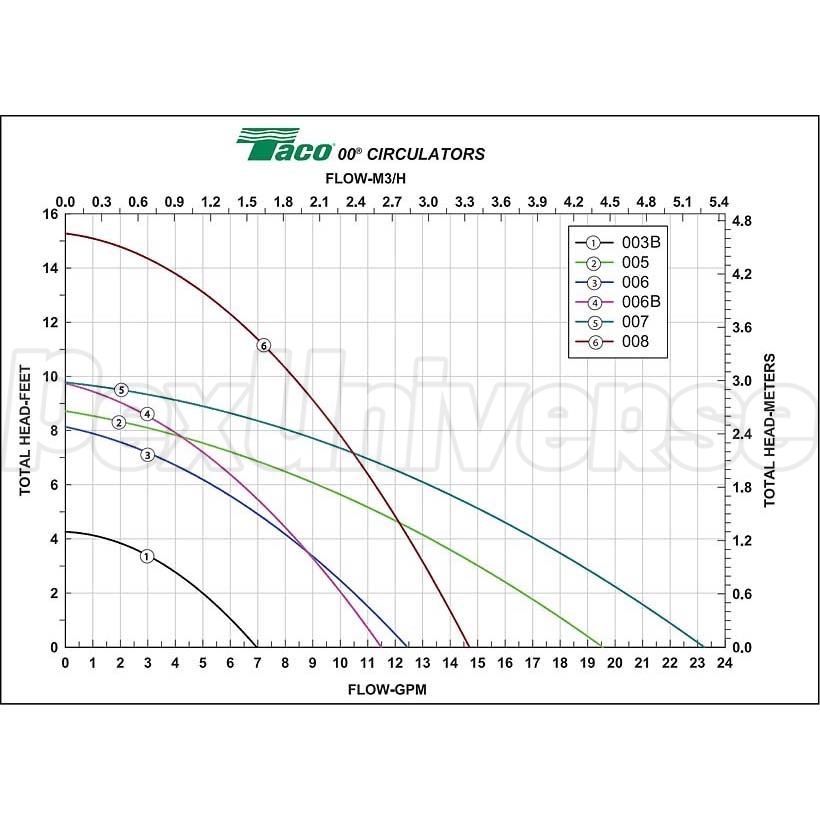

• Flow Range: 0-10 GPM;
• Head Range: 0-9 Feet;
• Minimum Fluid Temp: 40F (4C);
• Maximum Fluid Temp: 220F (104C);
• Maximum Working Pressure: 125 psi;
• Voltage: 115V;
• Hertz: 60;
• Amps: 0.52;
• Weight: 6 lbs;
• Height: 4";
• Widht: 3-5/16";
• Length: 5-5/8";
• Conncections: 1-1/4" Union

Literature:

Taco 006-SC4-1 Circulator Pump Submittal Data (pdf)

Taco 006-SC4-1 Cartridge Circulator Brochure (pdf)

Cross-Reference Table: Taco - Grundfos - Armstrong - B&G - Wilo (pdf)

For other Taco circulator pumps please click here>>
