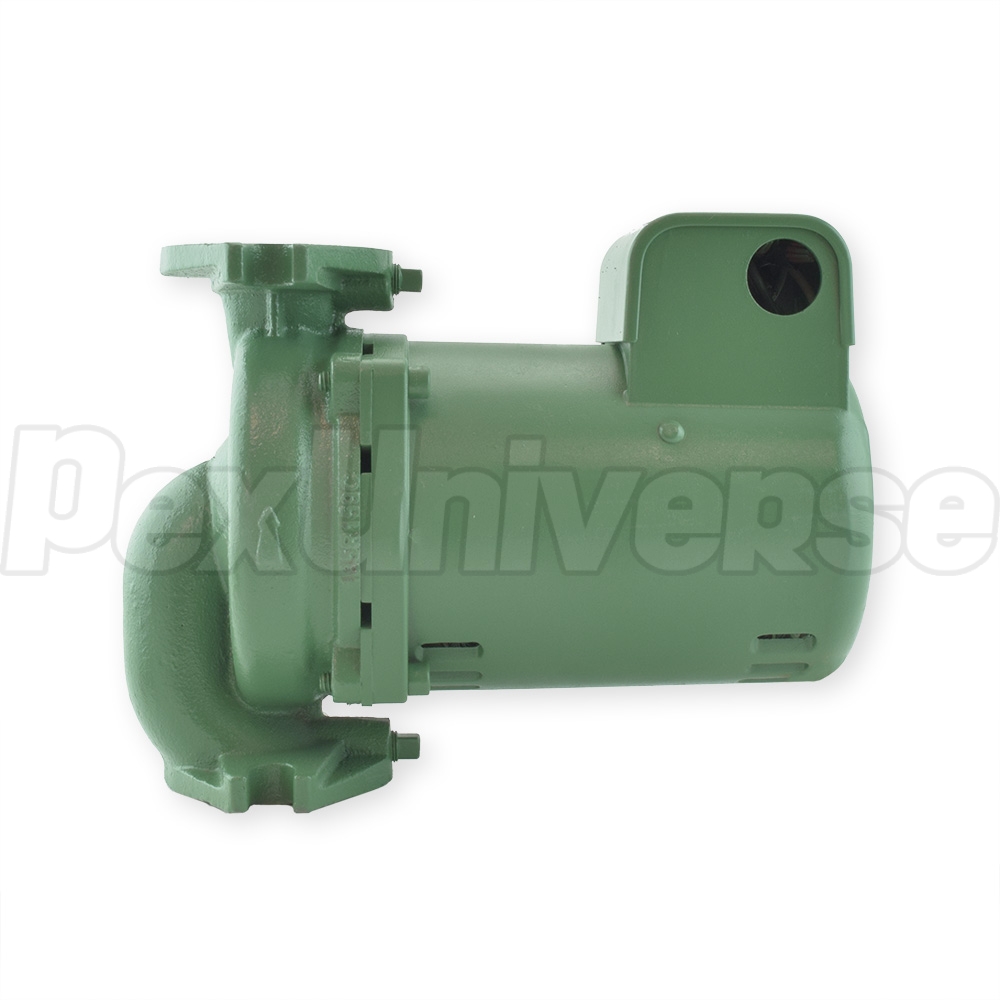

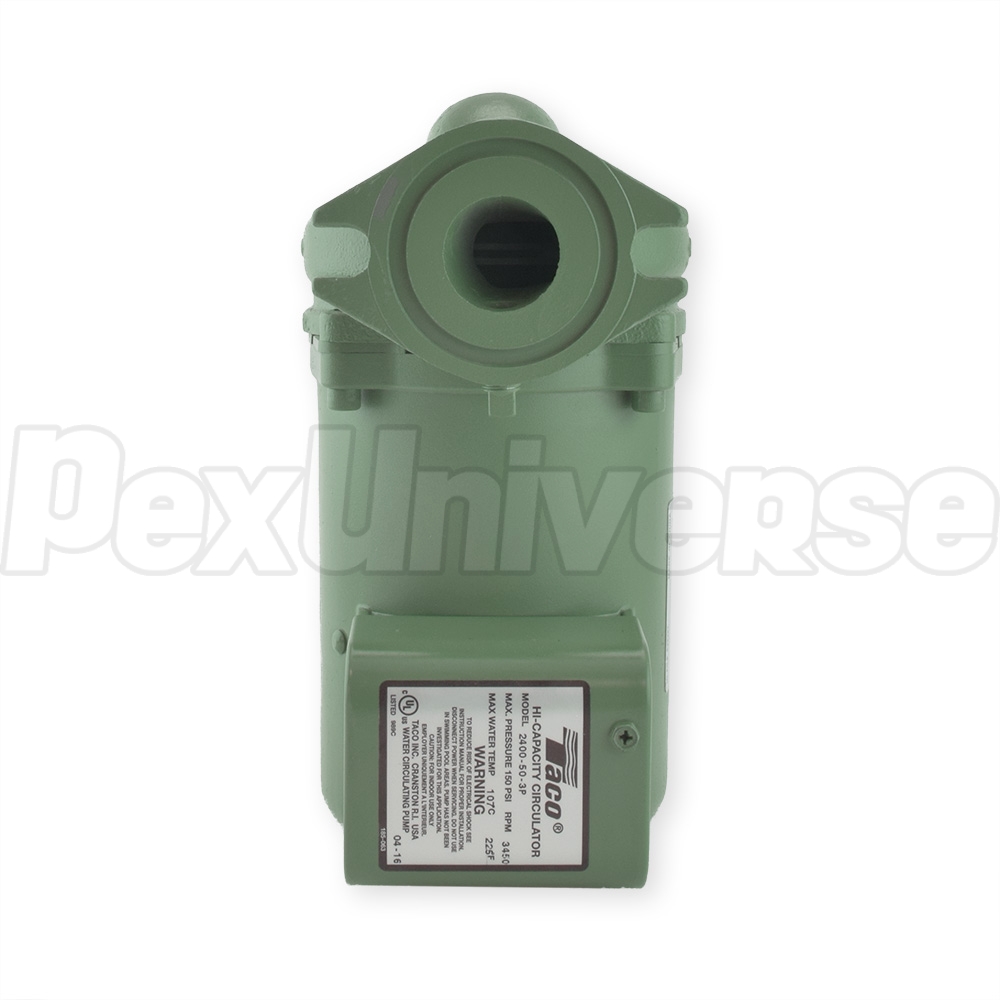

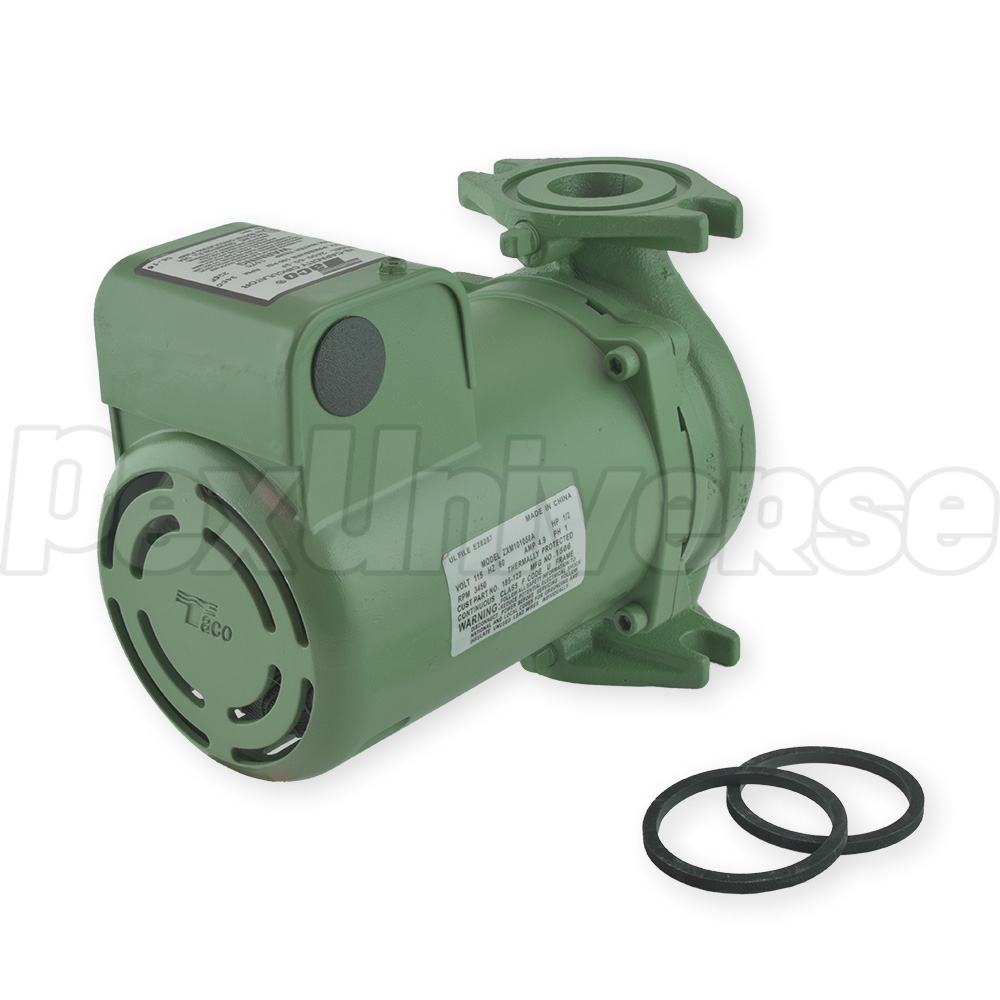

2400 Series Circulator Pump, 1/2 HP, 115V

Taco

Brand: Taco

Mfr Part#: 2400-50-3P

UPC#: 687752084733

Availability: Out Of Stock
Usually ships: Upon availability
Qty Price
$489.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs

Taco 2400-50-3P High Capacity Circulator Pump is specifically designed for quiet and efficient operation with high flow/head hydronic heating, hot water recirculation or chilled water cooling applications. This high capacity circulator pump provides the maximum head of 46 feet and maximum flow of 37 gallons per minute. The space saving, close-coupled, maintenance free motor with permanently lubricated, sealed-for-life bearings, Noryl impeller and durable, carbon/silicon-carbide mechanical seal provide unmatched reliability.


Features:

  • Compact, space saving design;
  • Powerful close-coupled, maintenance free motor;
  • Superior efficiency, high starting torque;
  • Parmanently lubricated, sealed for life bearings;
  • Rugged 1/2" Stainless Steel Shaft.

Technical Specifications:

  • Horsepower: 1/2 HP;
  • Maximum Shut-off Head: 46 ft;
  • Maximum Flow: 37 GPM;
  • Maximum Operating Pressure: 150 psi;
  • Fluid Temperature: 40-225°F (4-107°C);
  • Voltage: 115V;
  • Frequency: 60 Hz;
  • Amperage: 4.9 A;
  • Frequency of Rotation: 3450 RPM;
  • Casing: Cast Iron;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged.
