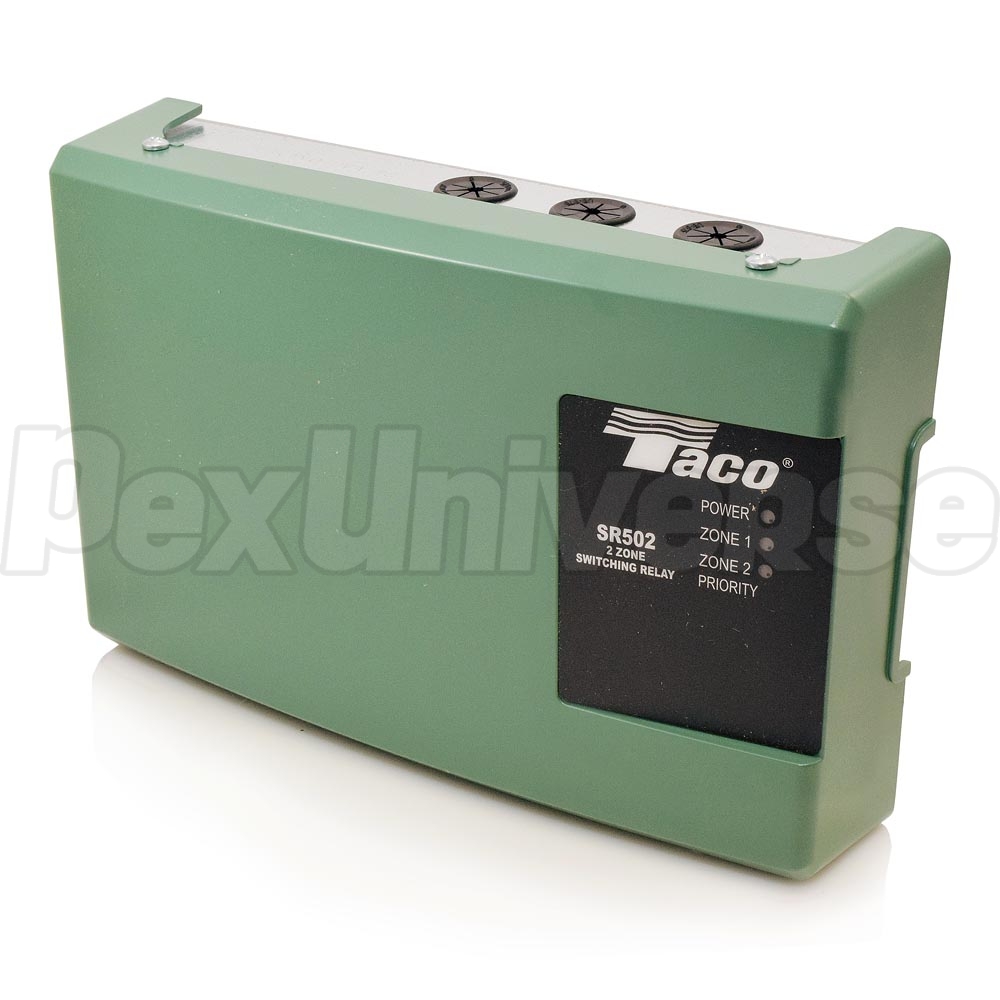

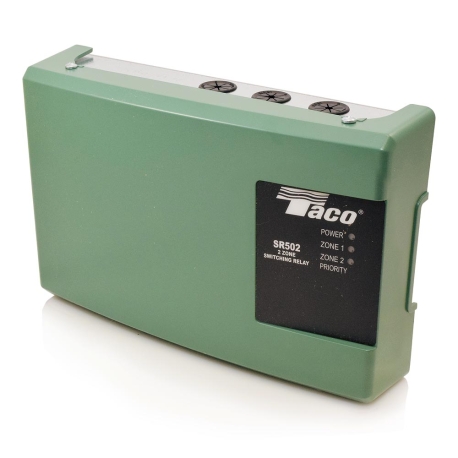

Taco SR502-4 Switching Relay Module Side View
Click on image to enlarge

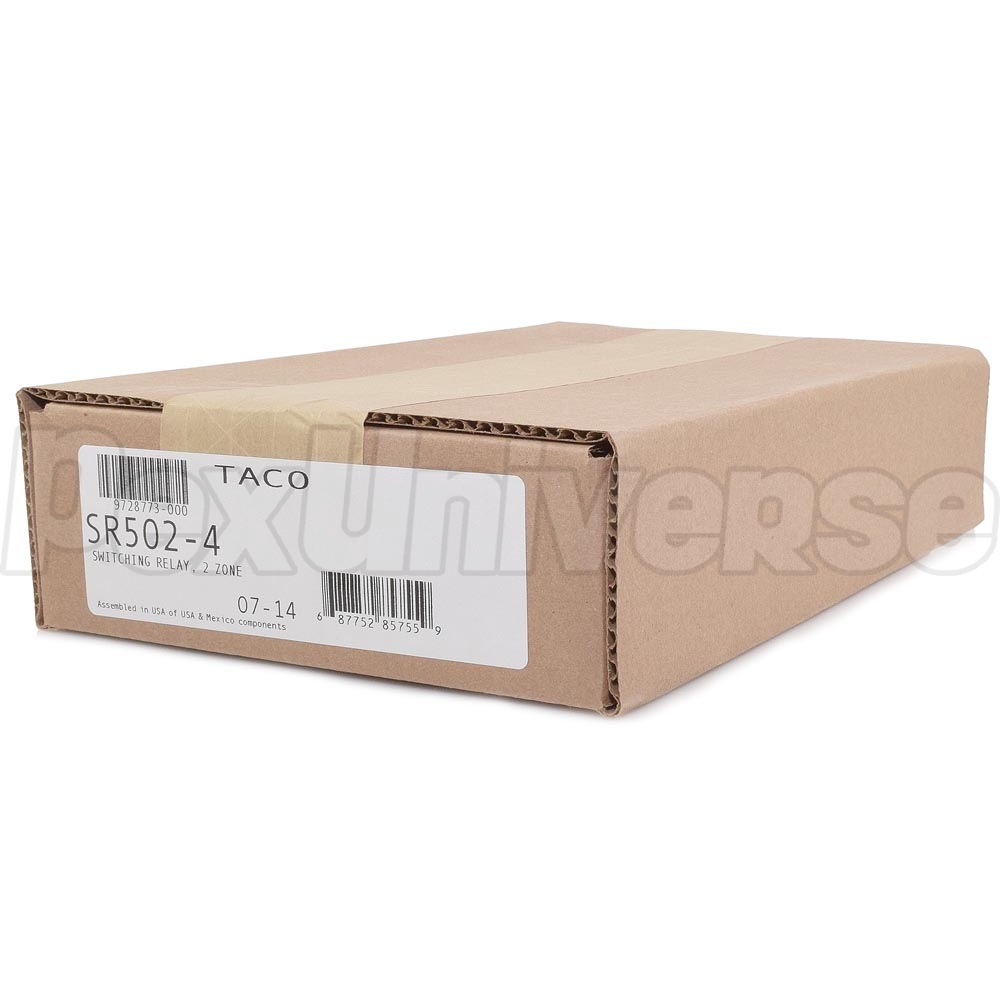

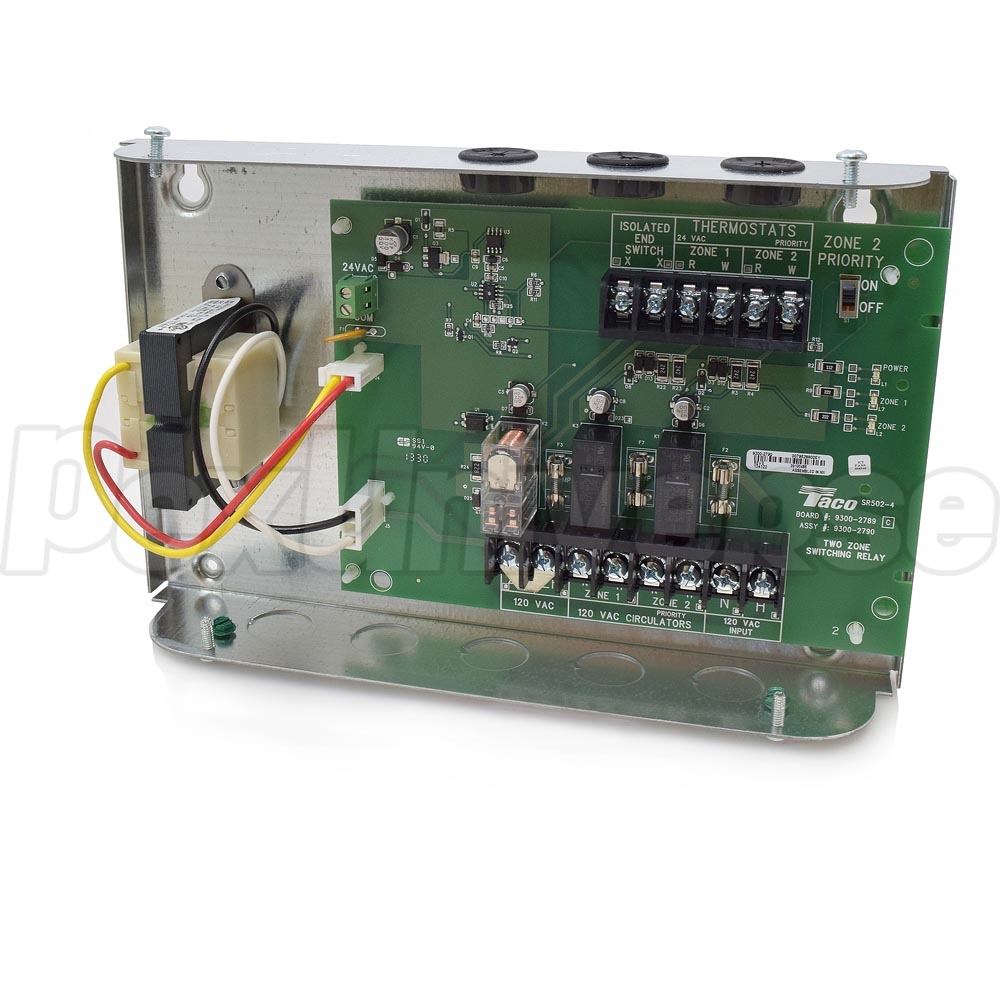

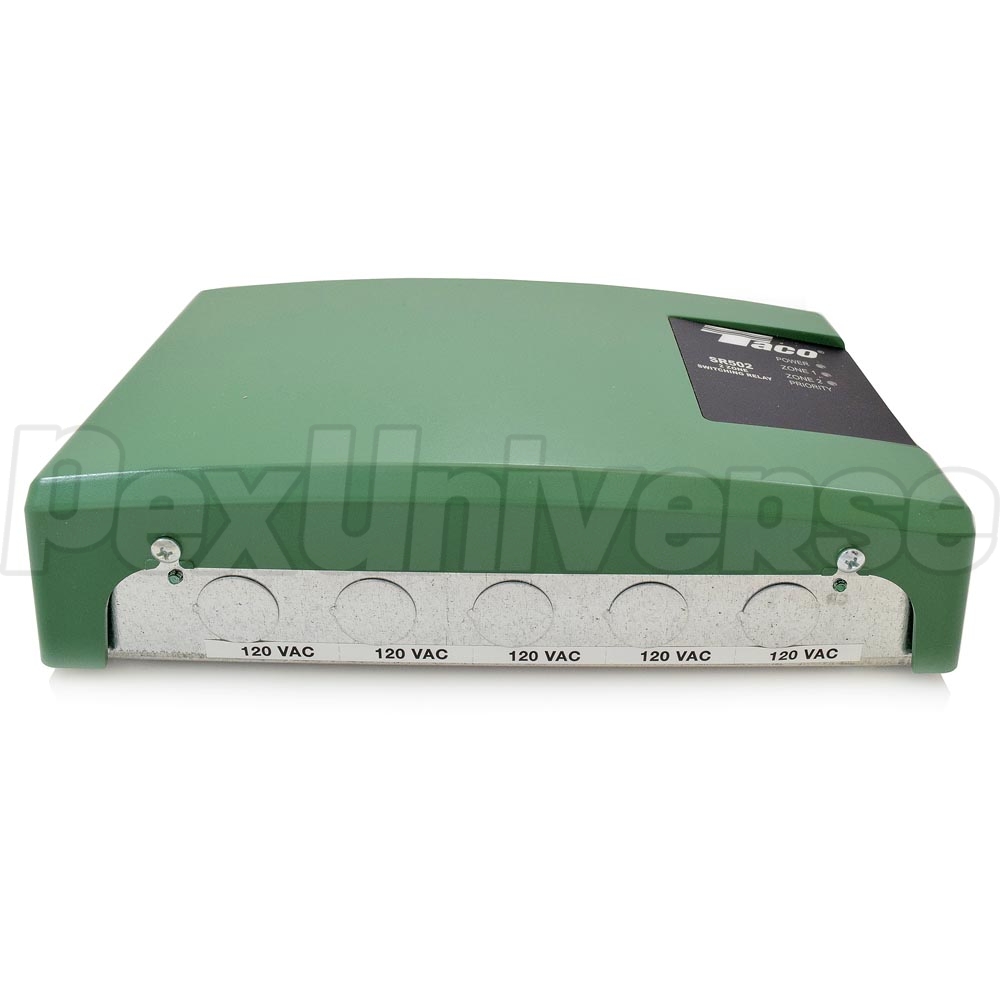

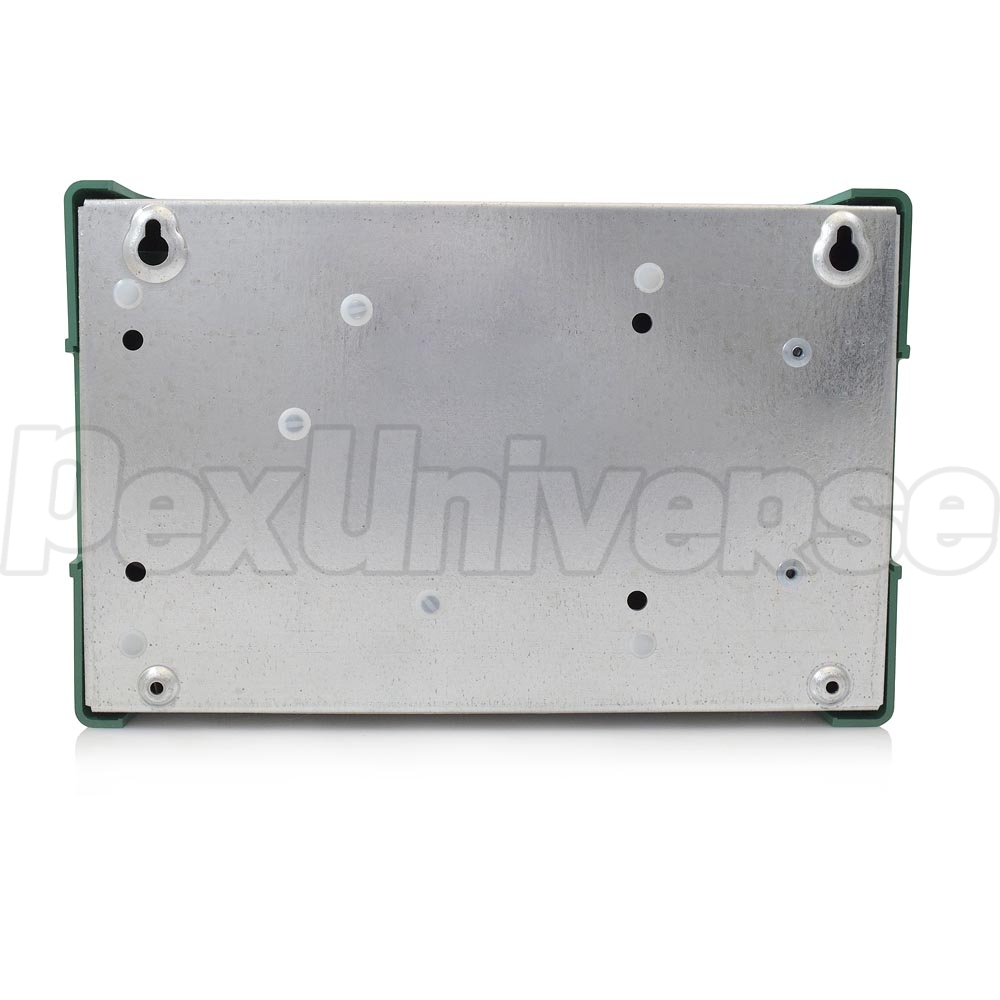

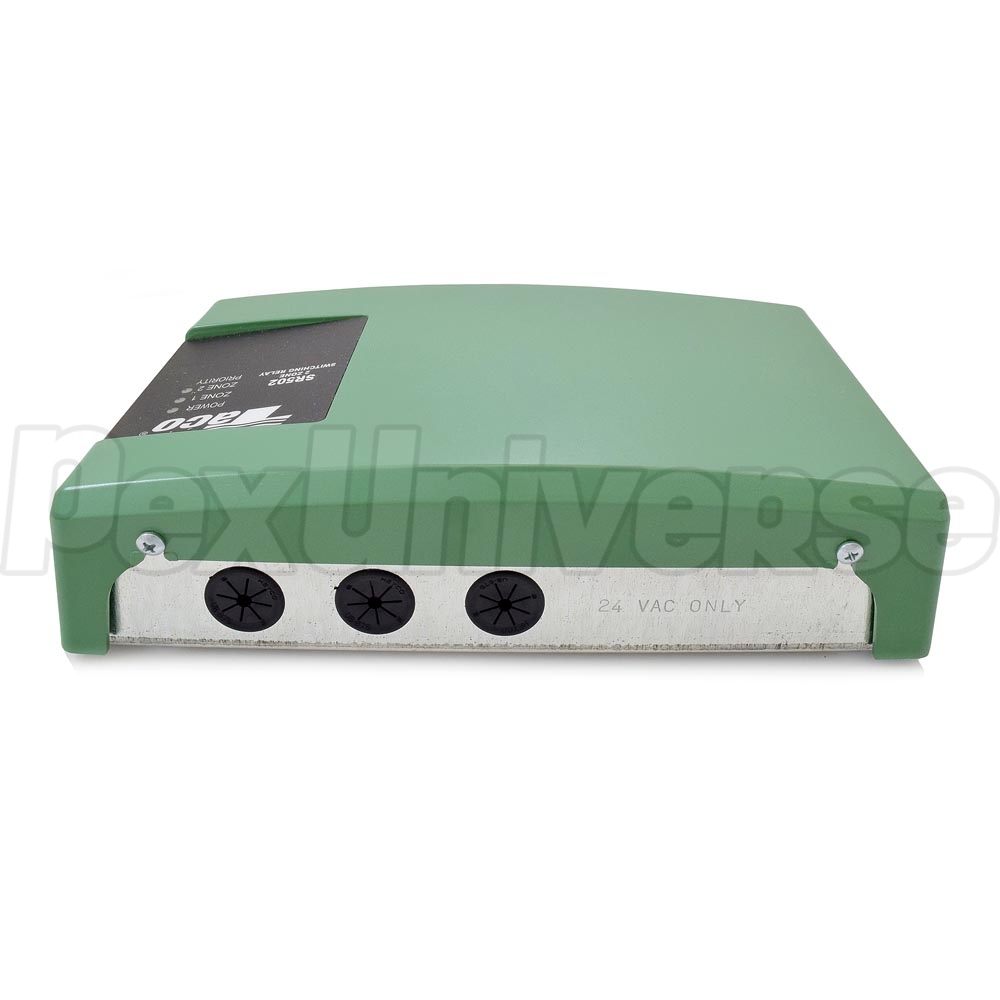

Taco SR502-4 Switching Relay Module Top ViewTaco SR502-4 Switching Relay Module Bottom ViewTaco SR502-4 Switching Relay Module BackTaco SR502-4 Switching Relay Module Open SideTaco SR502-4 Switching Relay Module Open FrontTaco SR502-4 Switching Relay Module in Box

2-Zone Switching Relay w/ Priority

Taco

Brand: Taco

Mfr Part#: SR502-4

UPC#: 687752857559


Availability: In Stock
Usually ships: within 1 business day
Qty Price
$112.95 / each
Add to cart
McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams
  • Description
  • Literature
  • Reviews
  • FAQs

Taco SR502 Switching Relay combines clearly labeled PC board layout with advanced features that allow for total system customization. External indicator lights provide instant diagnostic feedback, making a snap of service calls or new installation start-ups. Taco SR502 switching relays are UL and CSA listed, use standard “ice cube” replaceable relays and are compatible with conventional and programmable thermostats.



Features:

  • External Indicator Lights
  • Switchable Priority
  • Simplified Wiring
  • Fully Enclosed Snap-Out Relays
  • Compact Design
  • Fuse Protected
  • 100% Factory Tested
  • Isolated End Switch
  • Contractor Friendly PC Board Layout
  • Universal Thermostat Compatibility
  • UL and CSA Approved
  • 24 Volt Power Input or Output Terminal
  • Extended 3 Year Warranty
  • Made in the USA



Specs:

Zones: 2;

Power: 120VAC;

Max combined load: 15.0 AMPs;

Dimensions: 10.25" wide x 6.75" high x 2.75" deep.

No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Is it possible to control a zone valve from a switching relay?
Read 1 answer
Taco SR switching relays are for circulators only. If you need to control zone valves, use Taco ZVC (Zone Valve Controls).
Answered on 12/10/2013 by PexUniverse Customer Service
I have 4 zones of baseboard heat in my home. I installed a fifth zone which is radiant heat with its on pump, zone valve and mixing valve. I purchased a tacosr502 switching relay so that the pump can run for the radiant side when thermostat call for heat. My question is do I leave all the the existing thermostat wires connected to the TT ?
Read 1 answer
If radiant heating zone requires a separate temperature control, then a separate thermostat has to be installed and wired to the Taco SR502 panel.
Answered on 9/4/2012 by PexUniverse Customer Service
