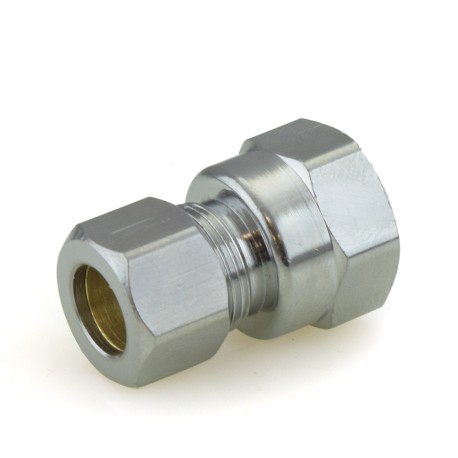

3/8" OD No Tube Stop x 3/8" FIP Threaded Compression Adapter, Chrome Plated, Lead-Free
Brand: BrassCraft
Part#: 10X-C
In Stock
Usually ships: within 1 business days
This compression Chrome-plated adapter fitting is used to connect 3/8" OD copper/plastic pipe (or flexible water connector) to a 3/8" male threaded outlet or pipe in a straight line. "Drill-through/No-stop" design allows to insert the copper tubing or riser deeper into the fitting without the need to trim it to size. Made from lead-free brass and approved for potable water applications.

Technical Specifications:
  • Connections: 3/8" OD (1/4" Nominal/CTS) Compression x 3/8" FIP (Female Threaded)
  • Operating Temperature Range: -65° - 250° F
  • Max Operating Pressure: 200 psi
  • Material: Lead-Free Brass (Chrome Plated), approved for potable water use
  • CSA Listed, NSF/ANSI 372.
