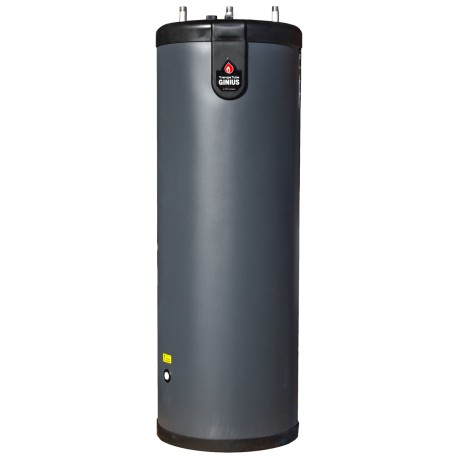

Triangle Tube Ginius 55 Indirect Water Heater, 54-Gallon
Brand: Triangle Tube
Part#: GINIUS55
This product has been discontinued.
Direct Replacement:
SKU: SMART60
Brand: Triangle Tube
Triangle Tube
With all-stainless steel construction (both inner tank and outer shell), Ginius series idirect water heaters are designed to outlast and outperform any competition. Like other Triangle Tube indirect series, Ginius features a tank-in-tank design which effectively increases heat transfer area by 1.5 - 2 times, allowing for higher energy efficiency and faster domestic hot water recovery times - up to x3 times faster than traditional gas or electric tank water heaters.

Features:
  • All stainless steel construction (internal tank and outer shell)
  • ACV exclusive tank-in-tank design
  • Self-cleaning, maintenance-free heat exchanger with surface area 1.5 - 2 times larger than traditional coil
  • Provides abundant hot water with a recovery rate of up to 3 times higher than conventional gas or electric water heater
  • Tank drain port
  • Built-in aquastat
  • Low standby loss (CFC/HCFC free foam insulation)
  • Small footprint
  • Lifetime residential warranty

Technical Specifications:
  • Domestic Water Capacity (Gallons): 54.0
  • Heat Exchanger Type: Tank-in-Tank
  • Heating Water Volume (Gallons): 1.0
  • Domestic Water Connections: 3/4" NPT
  • Boiler Connections: 1" NPT
  • Required Min. Boiler Output @180°F Supply & 50°F Temp. Differential (BTU/hr): 92,000
  • Required Min. Boiler Output @200°F Supply & 50°F Temp. Differential (BTU/hr): 155,000
  • 1st Hour Rating @ 180°F boiler water and 90°F Rise (Gallons/hr): 163.0
  • 1st Hour Rating @ 200°F boiler water and 90°F Rise (Gallons/hr): 250.0
  • Peak Flow @ 180°F Boiler Supply Temp. (Gallons/hr): 63
  • Peak Flow @ 200°F Boiler Supply Temp. (Gallons/hr): 80
  • Continious Flow @ 180°F Boiler Supply Temp. (Gallons/hr): 120
  • Continious Flow @ 200°F Boiler Supply Temp. (Gallons/hr): 205
  • Circulator Min. Flow (GPM): 14
  • Heat Exchanger pressure rating: 80 psi
  • Heat Exchanger Pressure Drop: 4ft of head @ 15 GPM
  • Empty Weight (lbs): 124
  • Dimensions (Diameter x Height): 22" x 64"
