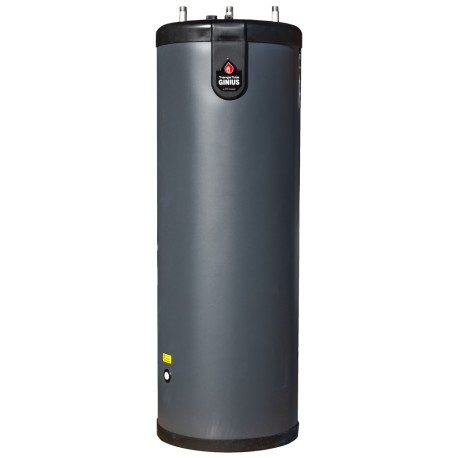

Triangle Tube Ginius 65 Indirect Water Heater, 64-Gallon (w/ Dual Heat Exchanger)
Brand: Triangle Tube
Part#: GINIUS65
Usually ships: within 2-3 business days
With all-stainless steel construction (both inner tank and outer shell), Ginius series idirect water heaters are designed to outlast and outperform any competition. Like other Triangle Tube indirect series, Ginius features a tank-in-tank design which effectively increases heat transfer area by 1.5 - 2 times, allowing for higher energy efficiency and faster domestic hot water recovery times - up to x3 times faster than traditional gas or electric tank water heaters.

Features:
  • All stainless steel construction (internal tank and outer shell)
  • ACV exclusive tank-in-tank design
  • Dual geat exchangers allow for use with (2) separate heat sources and offer piping flexibility
  • Self-cleaning, maintenance-free heat exchanger with surface area 1.5 - 2 times larger than traditional coil
  • Provides abundant hot water with a recovery rate of up to 3 times higher than conventional gas or electric water heater
  • Tank drain port
  • Built-in aquastat
  • Low standby loss (CFC/HCFC free foam insulation)
  • Small footprint
  • Lifetime residential warranty

Read more

Technical Specifications:
  • Domestic Water Capacity (Gallons): 64.0
  • Heat Exchanger Type: Tank-in-Tank (Dual)
  • Heating Water Volume (Gallons): 1.0 (2.0 in dual mode)
  • Domestic Water Connections: 3/4" NPT
  • Boiler Connections: 1" NPT
  • Required Min. Boiler Output @180°F Supply & 50°F Temp. Differential (BTU/hr): 92,000
  • Required Min. Boiler Output @200°F Supply & 50°F Temp. Differential (BTU/hr): 155,000
  • 1st Hour Rating @ 180°F boiler water and 90°F Rise (Gallons/hr): 170.0 (Single Coil mode), 275.0 (Dual Coil - Series), 290.0 (Dual Coil - Parallel)
  • 1st Hour Rating @ 200°F boiler water and 90°F Rise (Gallons/hr): 255.0 (Single Coil mode), 415.0 (Dual Coil - Series), 430.0 (Dual Coil - Parallel)
  • Peak Flow @ 180°F Boiler Supply Temp. (Gallons/hr): 70 (Single Coil mode), 88 (Dual Coil - Series), 90 (Dual Coil - Parallel)
  • Peak Flow @ 200°F Boiler Supply Temp. (Gallons/hr): 85 (Single Coil mode), 110 (Dual Coil - Series), 115 (Dual Coil - Parallel)
  • Continious Flow @ 180°F Boiler Supply Temp. (Gallons/hr): 120 (Single Coil mode), 225 (Dual Coil - Series), 240 (Dual Coil - Parallel)
  • Continious Flow @ 200°F Boiler Supply Temp. (Gallons/hr): 205 (Single Coil mode), 365 (Dual Coil - Series), 380 (Dual Coil - Parallel)
  • Circulator Min. Flow (GPM): 26.5
  • Heat Exchanger pressure rating: 80 psi
  • Heat Exchanger Pressure Drop: 4ft of head @ 15 GPM
  • Empty Weight (lbs): 164
  • Dimensions (Diameter x Height): 22" x 72"
