30 Gal, Defender Atmospheric Vent Short Water Heater (LP), 6-Yr Wrty
Brand: Bradford White
Part#: RG230S6X
Usually ships: within 3-5 business days

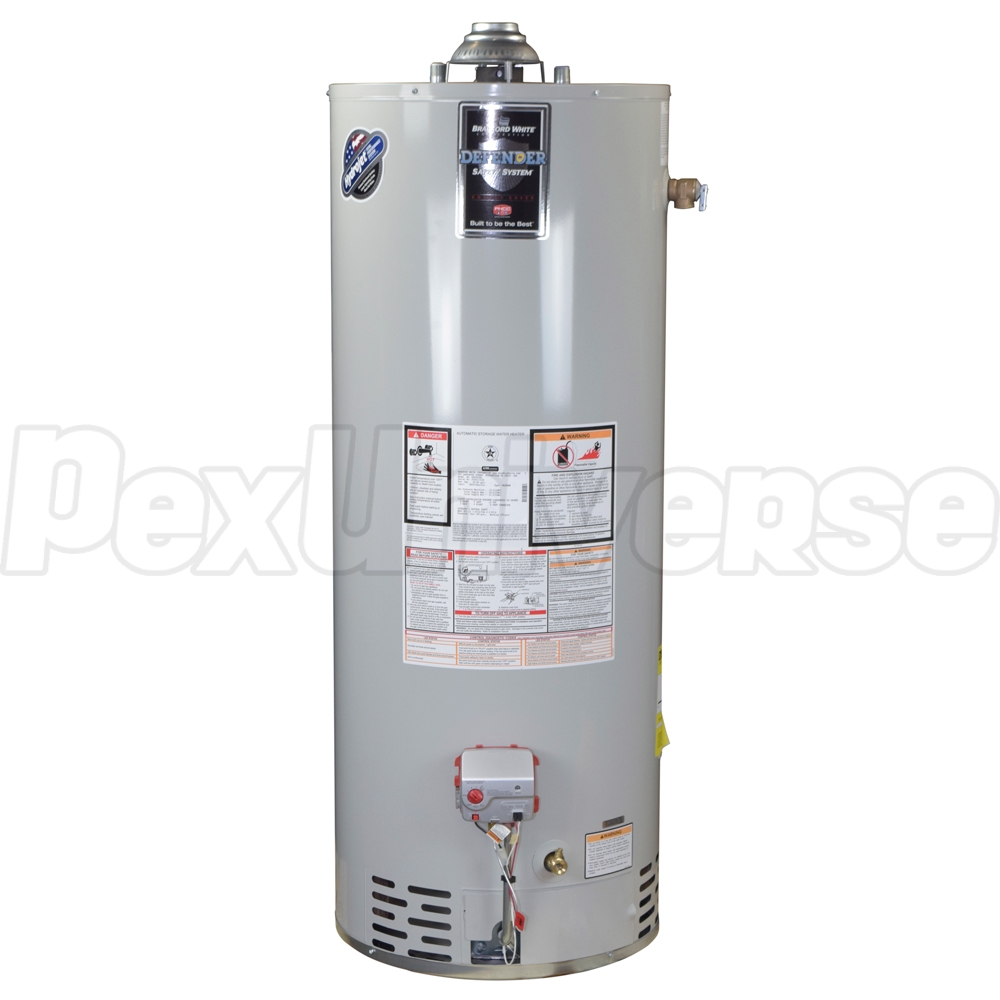

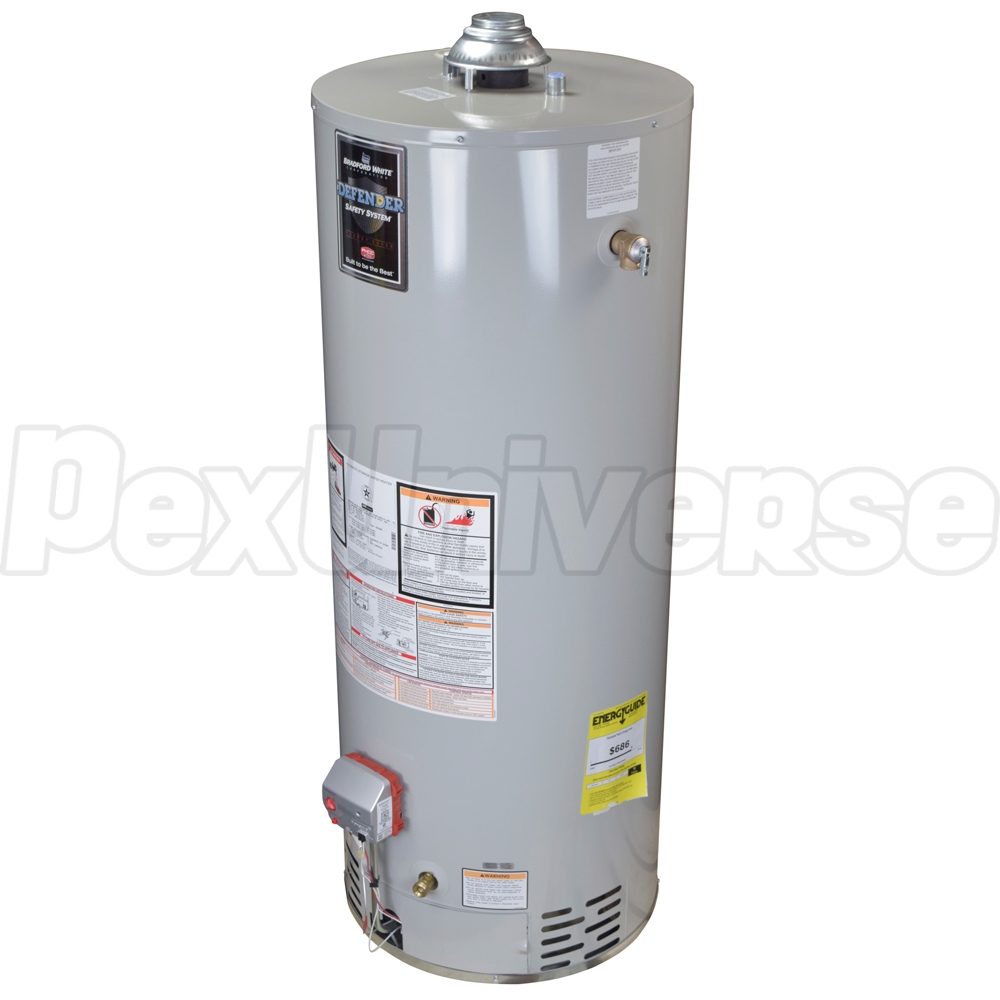

Bradford White RG230S6X model is a 30-gallon propane gas (LP), short-profile atmospheric vent residential water heater with 6-year warranty. T&P valve included.

  • Defender FVIR system w/ ScreenLok flame arrestor prevents ignition of flammable vapors outside the water heater
  • Vitraglas enamel lining helps to extend tank life
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
  • 3" x 4" Snap-Lock draft diverter allows for 3" or 4" vent connections
  • Non-CFC foam covers the sides and top of the tank, reducing heat loss
  • Factory-installed heat traps reduce stand-by heat loss
  • Sight window allows to observe operation of pilot and burner
  • Protective magnesium anode rod
  • Pedestal base
  • Titanium Stainless Steel propane burner
Read more

Technical Specifications:
  • Fuel: Propane (LP)
  • Nominal Capacity (Gallons): 30
  • Rated Storage Volume (Gallons): 28
  • Input (BTU): 30,000
  • Uniform Energy Factor: 0.60
  • Recovery Efficiency: Up to 80%
  • 1st Hour Rating (Gallons): 57
  • Recovery Rise @90° F (GPH): 32
  • NOx Emissions: less than 40ng/J
  • Water Connections: 3/4" NPT
  • Gas Connection: 1/2" NPT
  • Max Working Pressure: 150 PSI
  • Ignition Type: Piezo push button ignitor
  • R-Value: 16
  • Insulation Thickness: 2"
  • Vent Type: Atmospheric (Standard)
  • Vent Size: 3" or 4" (adapter included)
  • Vent Material: B-Vent
  • Dimensions (Diameter x Height): 20" x 49-1/4"
  • Weight (lbs): 113
Read more

6-year limited tank warranties / 6-year limited warranty on components parts
