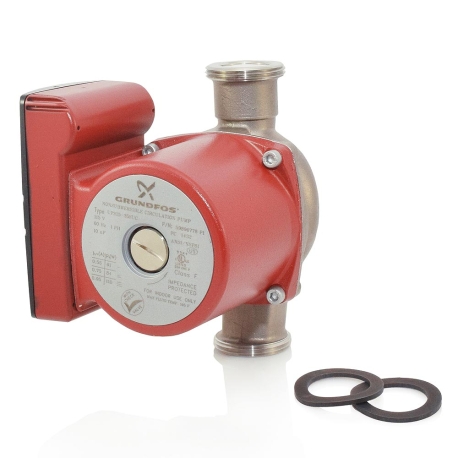

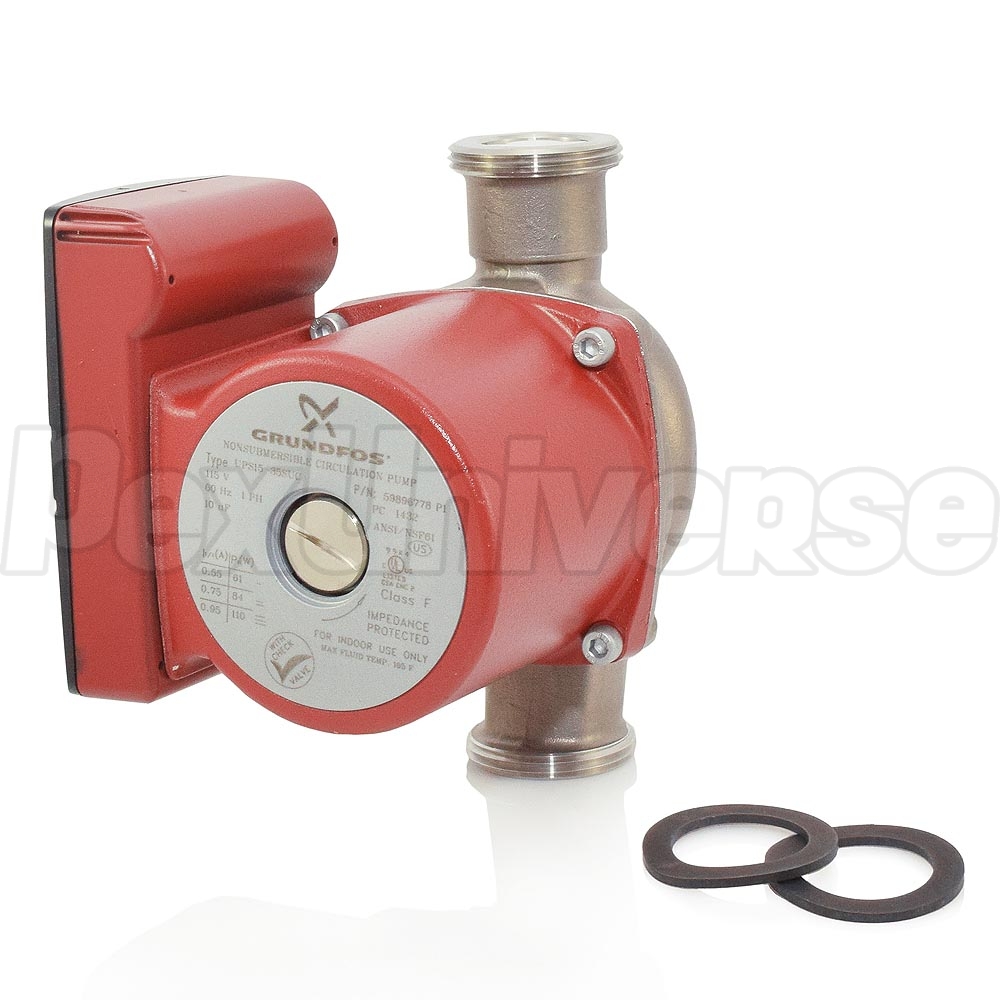

UPS15-35SUC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1-1/4" Union, 1/6 HP, 115V Grundfos
UPS15-35SUC 3-Speed Stainless Steel Circulator Pump w/ IFC, 1-1/4" Union, 1/6 HP, 115V
Brand: Grundfos
Part#: 59896778
Model: UPS15-35SUC
This product has been discontinued. No direct replacement is available at this time.

Description

Grundfos UPS15-35SUC pump is a 1/6HP Stainless Steel Circulator Pump (Grundfos SKU# 59896778) with 3 speeds, removable Integral Check Valve and 1-1/4" union connections (GU125). Grundfos UPS15-35SUC circulator model can be easily integrated into the system by adjusting the speed (Low/Med/High) and thus matching the system's requirements. Built-in check valve performs better than traditional in-line check valves and eliminates the need to buy and install a separate one.

Features:
  • Ceramic shaft and radial bearings
  • Carbon axial bearing
  • Stainless steel rotor can and bearing plate
  • Corrosion-resistant impeller, Composite, PES

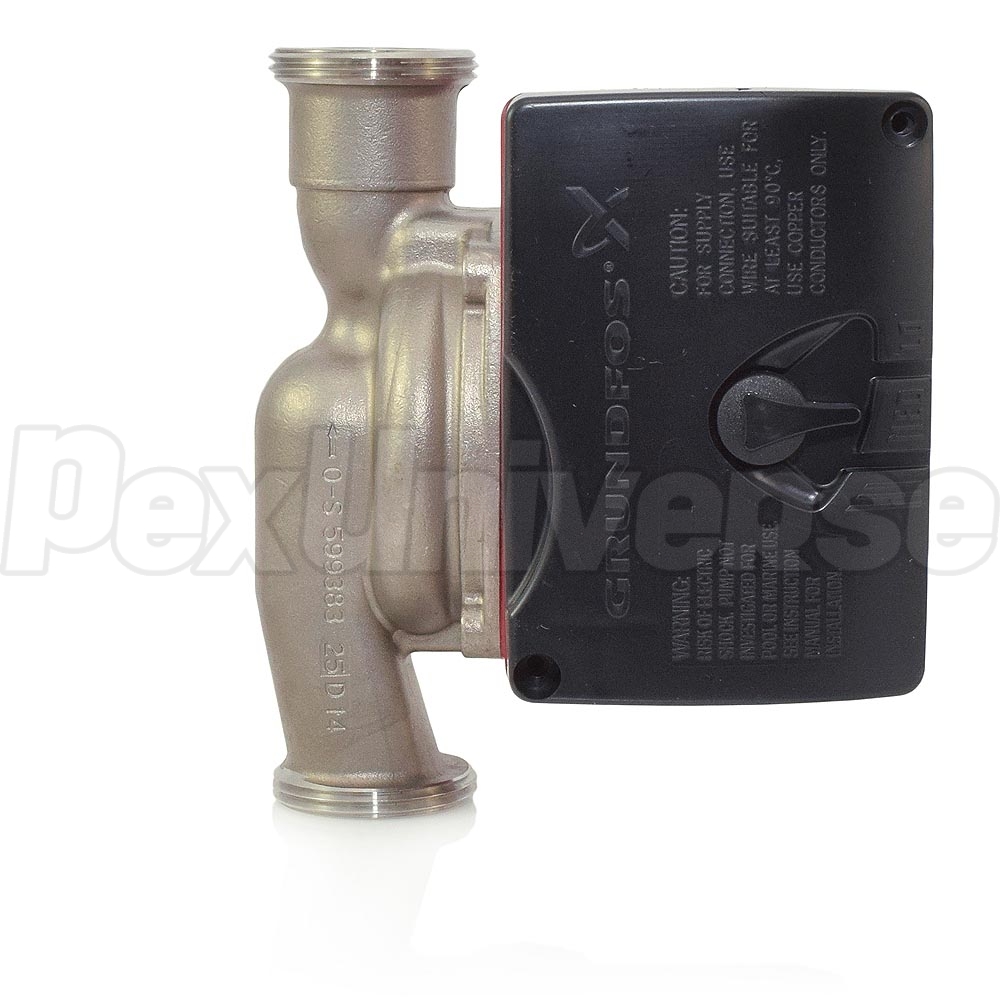

  • Stainless steel pump housing
  • Union connection
  • Check valve

Technical Specifications:
  • Speed Number: 3

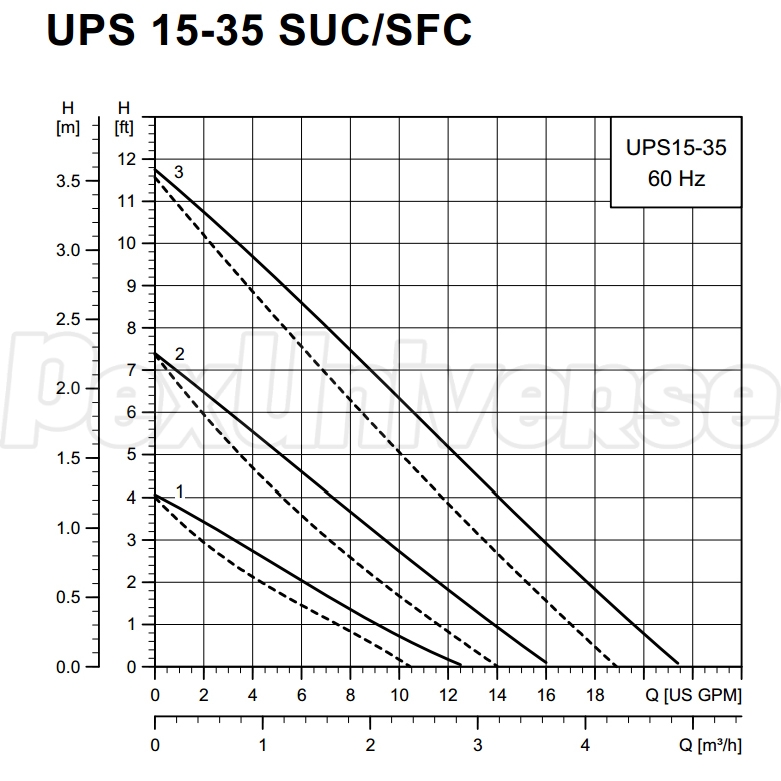

  • Max flow: 21.6 US gpm
  • Head max: 12.1 ft
  • Liquid temperature range: 35.6 .. 165.2 F
  • Maximum operating pressure: 145 psi
  • Approvals on nameplate: UL, CSA
  • Pump housing: Stainless steel
  • Pump housing: DIN W.-Nr. 1.4301
  • Pump housing: AISI 304
  • Impeller: Composite, PES
  • Maximum ambient temperature: 104 F
  • Ambient max at 176 F liquid: 176 F
  • Maximum operating pressure: 145 psi
  • Flange standard: USA Threaded
  • Type of connection: S.S. Union
  • Pipe connection: 1-1/4" NPSM
  • Pressure stage: 10
  • Port-to-port length: 5.87"
  • Number of poles: 2
  • Power input in speed 1: 61 W
  • Power input in speed 2: 85 W
  • Max. power input: 110 W
  • Rated power in speed 1: 1/6HP
  • Rated power in speed 2: 1/9HP
  • Rated power in speed 3: 1/12HP
  • Main frequency: 60 Hz
  • Voltage: 115V
  • Current in speed 1: 0.6 A
  • Current in speed 2: 0.75 A
  • Current in speed 3: 0.95 A
  • Capacitor size - run: 10 mF/180 V
  • Insulation class (IEC 85): F
  • Gross weight: 5.4 lbs

Warranty:
2 years from date of installation.
