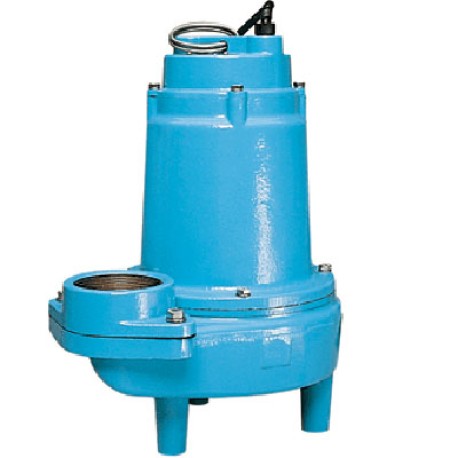

14S-CIM Manual Sewage Pump w/ 20' cord, 1/2 HP, 115V
Brand: Little Giant
Part#: 514320
Model: 14S-CIM
This product has been discontinued. No direct replacement is available at this time.

Little Giant 14S-CIM (514320) is a Manual Submersible Sewage Ejector Pump 1/2 HP, 115V, 20' power cord - Dominator 14S Series, recommended for use in sumps, basins or lift stations and is suitable for pumping sewage, effluent, wastewater and other non-explosive, non-corrosive liquids with a wide use in residential, commercial, industrial and agricultural applications with light to medium transfer demands.

14S-CIM Dominator submersible Sewage Ejector Pump features a vertical 2" FNPT discharge with head capacity of 25' and ABS base. The 14S Series Pump was specifically engineered to handle liquids and up to 2" diameter soft solid waste materials and deals with tough effluent and demanding tasks in wastewater and effluent waste transfer with high efficiency and long term dependability. Little Giant 14S-CIM has an epoxy coated heavy-duty cast iron housing and volute, to ensure rust resistance, with all exposed component parts made of corrosion resistant materials to provide a longer service life. Little Giant 14S-CIM boasts dynamically balanced two-vane non-clogging epoxy coated cast iron impeller with pump-out vanes for enhance pumping performance and efficiency, maximum 140F operating temperature, mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic shaft seal) and 300 Series stainless steel hardware. Oil filled motor housing of 14S-CIM provides lifetime lubrication and rapid heat dissipation. Little Giant's powerful 1/2 HP, single phase induction 1625 RPM motor with automatic reset thermal overload protection delivers 100 GPM of wastewater at 10' total dynamic head. This newest 14S-CIM Submersible Sewage Ejector Pump is an ideal solution for effluent and wastewater removal and handling where such materials must be moved upward from a collection area to sewer or septic lines or drainage areas.


Features:
  • Handles liquids and solid waste materials up to 2" diameter
  • Cast iron housing with protective epoxy coating for corrosion resistance
  • Oil-filled motor housing for lifetime lubrication and rapid heat dissipation
  • 2" FNPT discharge
  • Stainless steel screws, bolts and lifting ring
  • Mechanical seal (stainless steel spring, nitrile parts, carbon and ceramic faces) for long life & reliability
  • Secondary Exclusion Seal to help protect mechanical seal
  • 1/2 HP, 1625 RPM, ball bearing motor with thermal overload protection
  • Capacitor & power cord connections isolated from oil filled motor housing for ease of field maintenance
  • Dynamically balanced two-vane non-clogging impeller with pump-out vanes to enhance pumping performance & efficiency
  • UL / CSA listed

Technical Specifications:
  • Motor: 1/2 HP Permanent Split Capacitor
  • Maximum flow rate: 100 GPM @10'
  • Maximum Head: 25'
  • Solids handling (dia.): 2"
  • Max Liquid Temp: 140F
  • Discharge: 2" FNPT
  • Cord Length: 20'
  • Voltage: 115 V
  • Hertz: 60 Hz
  • Amps: 11.6 A
  • Watts: 1100 W
  • Weight: 87 lbs.
  • Height: 17.2"
  • Width: 9.9"
  • Length: 14.1"

Warranty:
2 years manufacturers warranty from the date of purchase.
