Grundfos UP15-10SU7P/TLC, 3/4" NPT, Comfort System w/ Comfort Valve & Connectors (595916)

Grundfos UP15-10SU7P/TLC (595916) Comfort System is an all-in-one, easy to install solution for domestic hot water recirculation needs. This system is well suited for existing construction and can be easily intergrated without the need for running a separate return line.

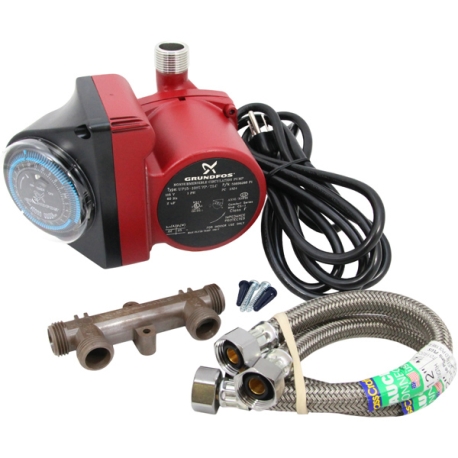

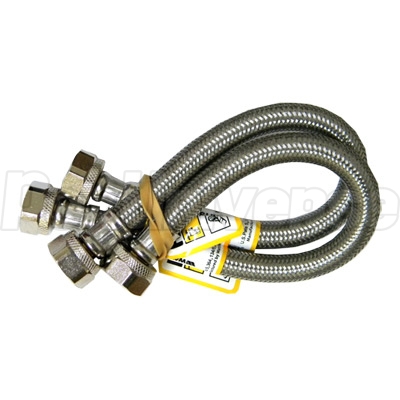

Grundfos UP15-10SU7P/TLC Comfort System also includes a Timer, Line Cord, Comfort Valve (SKU# 595926) and Flexible Connectors, thus eliminating the need for purchase and installation of addidtional components. Simply connect the lines, plug the pump into the electrical outlet and let the system do the rest.

This Grundfos Circulator Pump is for open systems with Maximum liquid temperature 150 F.

How it works:

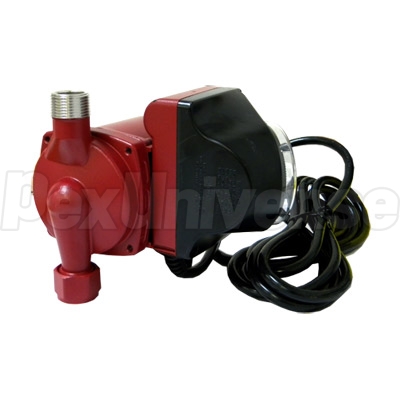

The stainless steel circulator pump is installed directly onto the hot water discharge on the water heater. The comfort valve is installed at the fixture furthest from the water heater. The system uses the cold water line to return hot water to the water heater, thus saving on utility bills.

Grundfos UP15-10SU7P/TLC Features:

• Built-in timer & line cord
• Built-in motor protection for longer life
• Designed to not require additional components for installation
• Stainless steel body
• Engineered to meet the needs of residential hot water and heating systems
• UL/CSA listed

Applications:

• Most commonly used in domestic hot water recirculation.
• Can also be used for various open and closed loop hydronic and radiant heating applications.

Technical Specifications of Grundfos UP15-10SU7P/TLC:

• Voltage: 115V;
• Amperage: 0.23 Amps;
• Hertz: 60 Hz;
• Phase: 1;
• Watts: 25W;
• Max Pressure: 145 psi;
• Max Temperature: 150F;
• Min Temperature: 36F;
• Flow Range: 0-6.3 GPM;
• Head Range: 0-5.1 ft;
• Horse Power: 1/25HP;
• Body: Stainless Steel;
• Connections: 3/4" Female NPT Inlet, 3/4" Male NPT Outlet;

Manufacturer's warranty:

2 years from the date of installation

Documentation:

Grundfos UP Series Product Guide (pdf)

Grundfos UP15-10SU7P/TLC (595916) Installation Manual

Grundfos UP15-10SU7P/TLC (595916) Secondary Installation Manual

Grundfos UP15-10SU7P/TLC (595916) Product Data
