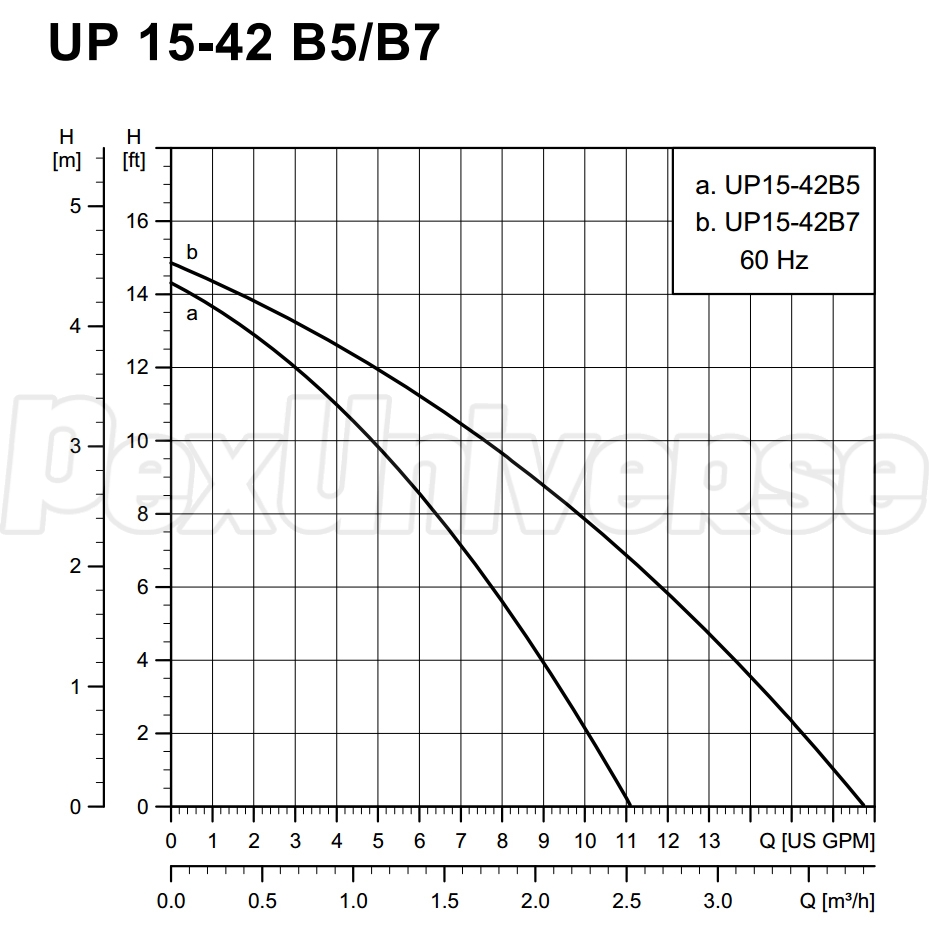

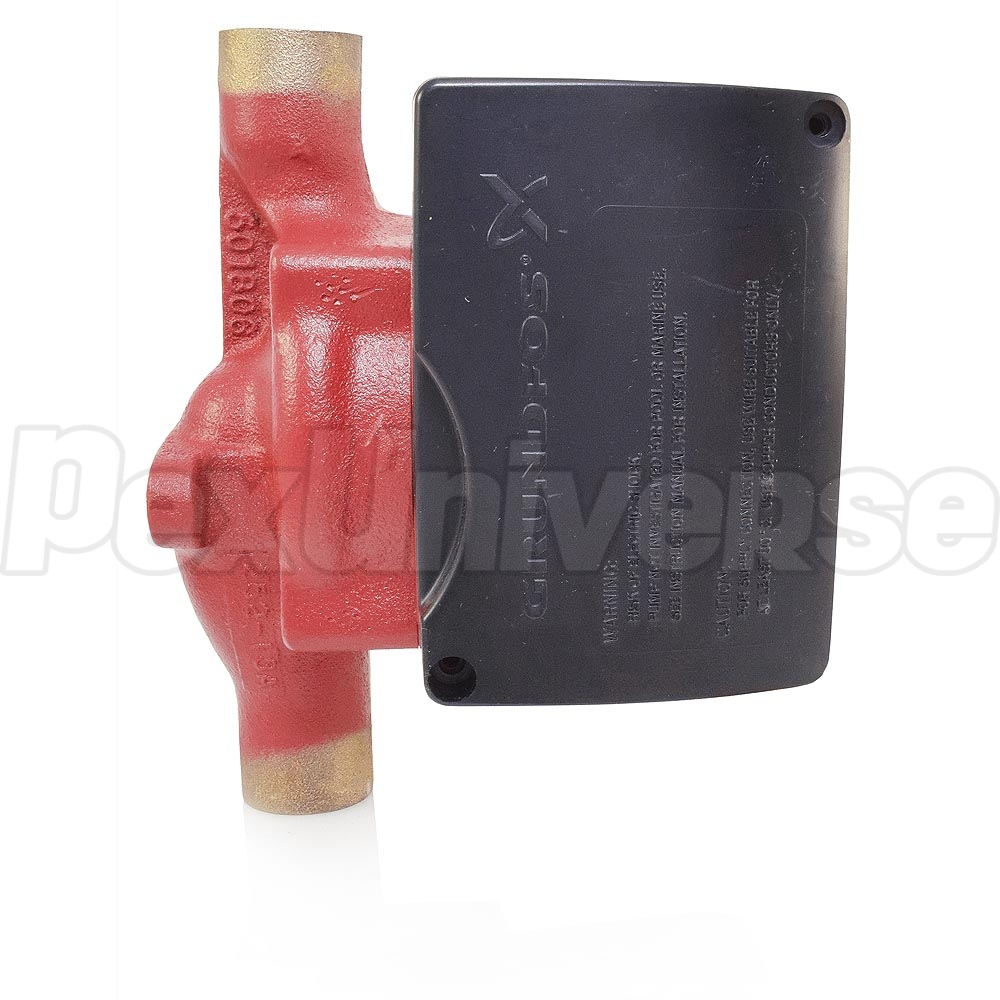

Grundfos UP15-42B5 Circulator Pump Side ViewGrundfos UP15-42B5 Circulator Pump in BoxGrundfos UP15-42B5 Circulator Pump Curve

UP15-42B5 Bronze Circulator Pump, 1/2" Sweat, 1/25 HP, 115V

Grundfos
Available For US Only

Brand: Grundfos

Mfr Part#: 59896145

Model: UP15-42B5

UPC#: 632514000452


Availability: In Stock
Usually ships: within 1 business day
Qty Price
$200.95 / each
Add to cart
McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams
  • Description
  • Literature
  • Reviews
  • FAQs

Grundfos UP15-42B5 (Grundfos SKU# 59896145) is a 1/25HP, single-speed Bronze Circulator Pump with 1/2" Sweat inlet/outlet connections. Bronze body of the Grundfos UP15-42B5 model improves corrosion resistance of the pump and allows to use it in both closed lopp and open loop systems, such as radiant heating, domestic hot water recirculation, solar systems, etc.



Grundfos UP15-42B5 Features:

  • Suitable for all heating systems including hydronic heating, fan coil heating, radiant heating,  solar heating, and other systems;
  • Built-in motor protection for long life;
  • Bronze body;
  • UL/CSA listed.



Technical Specifications of Grundfos UP15-42B5:

  • Voltage: 115V;
  • Amperage: 0.74 Amps;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Watts: 85W;
  • Max Pressure: 145 psi;
  • Max Temperature: 230F;
  • Min Temperature: 36F;
  • Flow Range: 0-17 GPM;
  • Head Range: 0-15 ft;
  • Horse Power: 1/25HP;
  • Body: Bronze;
  • Connections: 1/2" Sweat;



Manufacturer's warranty:

2 years from the date of installation.
