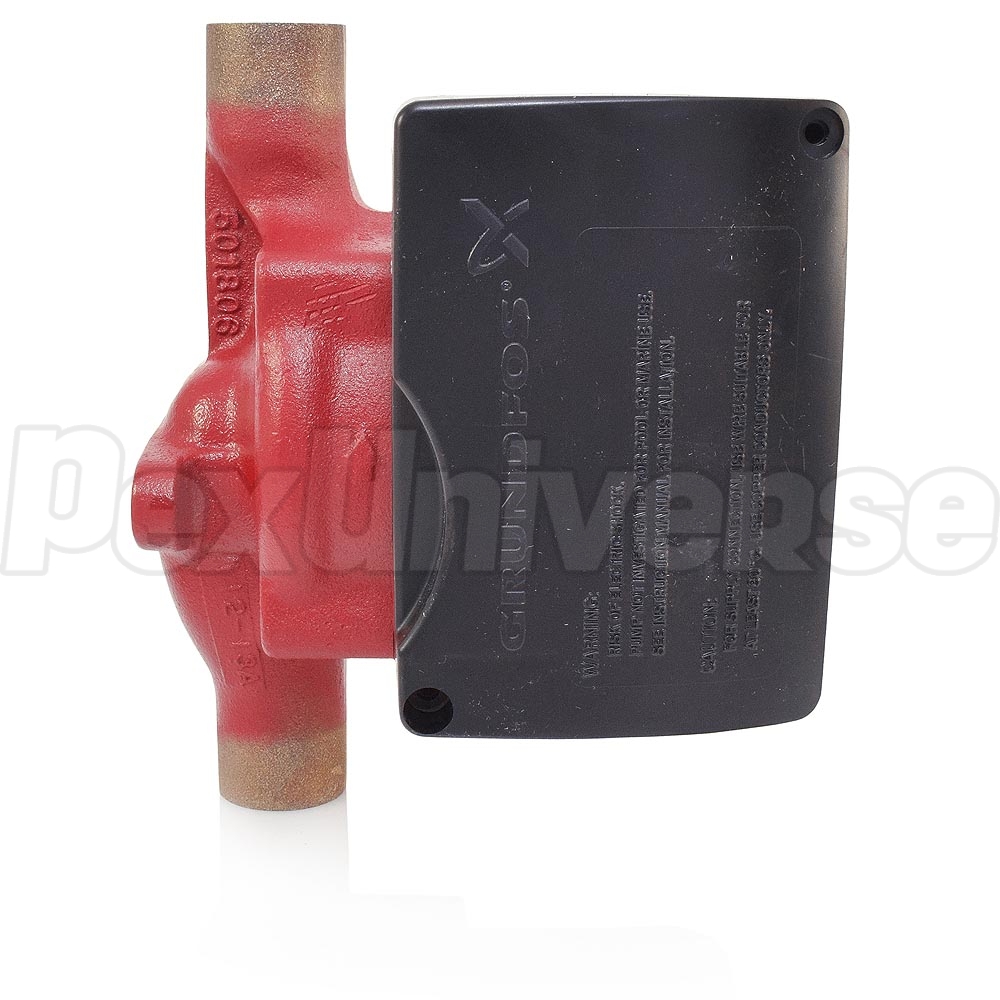

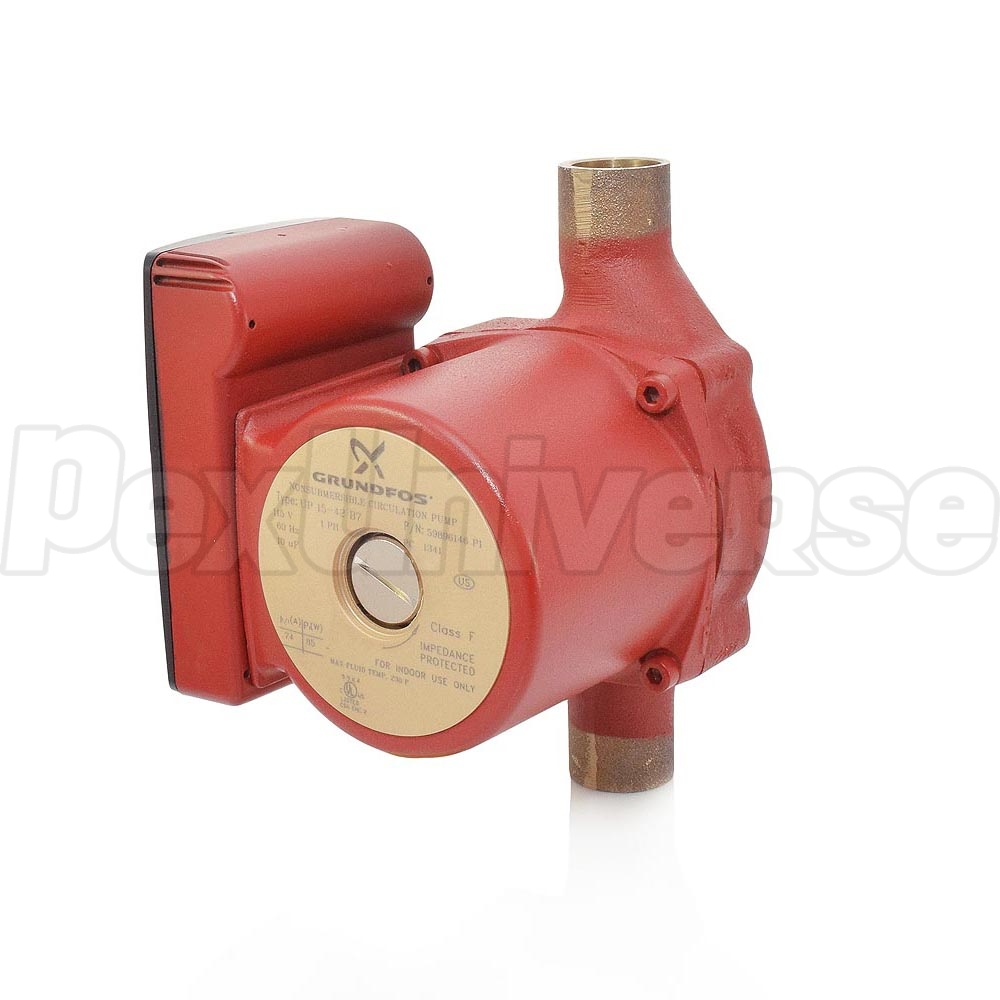

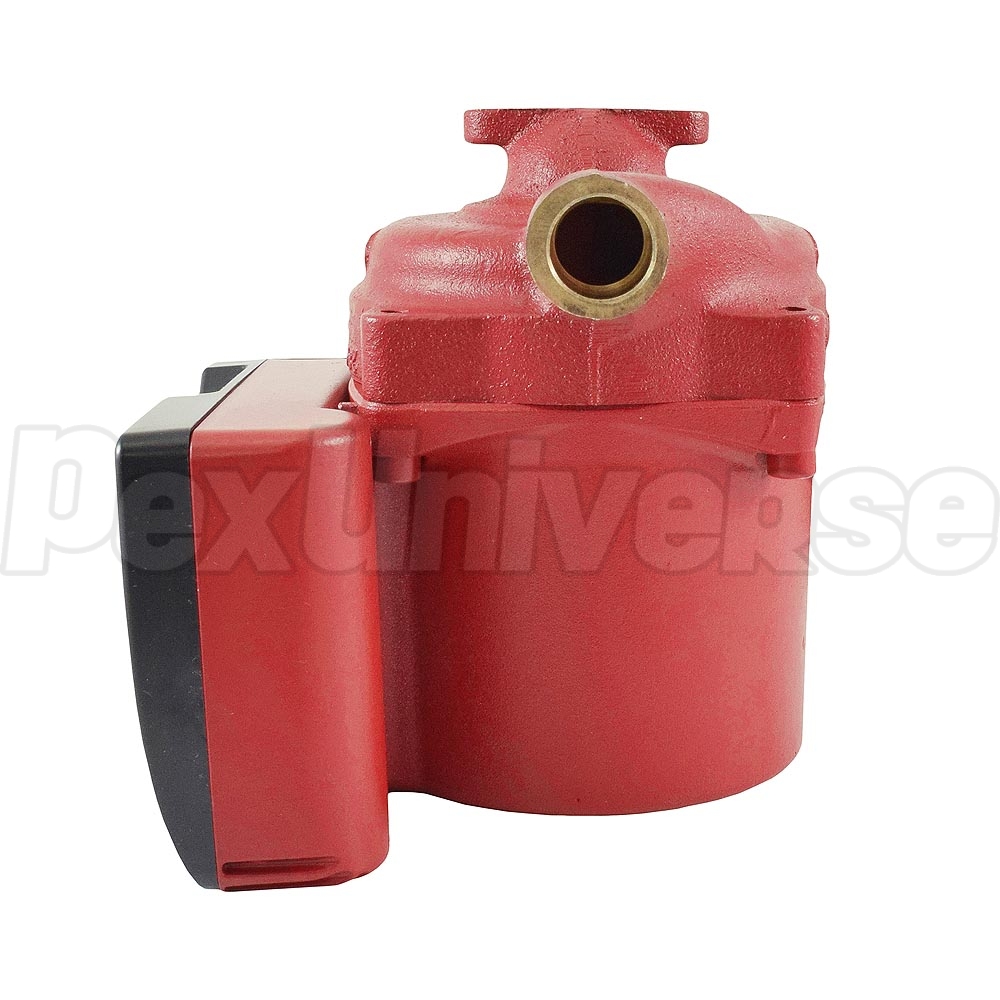

Grundfos UP15-42B7 Bronze Circulator Pump, 3/4" Sweat, 1/25HP, 115V (59896146)

The Grundfos UP15-42B7 (Grundfos# 59896146) is a 1/25HP Bronze Circulator Pump with 3/4" Sweat inlet/outlet connections. primarily used in open loop heating applications, such as hot water recirculation, radiant heating, solar and many others.

Grundfos UP15-42B7 Features:

• Suitable for all heating systems including radiant heating, solar heating, hydronic heating, fan coil heating, and other systems;
• Whisper-quiet operation;
• Bronze body;
• Built-in motor protection;
• UL/CSA listed.

Technical Specifications of Grundfos UP15-42B7:

• Voltage: 115V;
• Amperage: 0.74 Amps;
• Hertz: 60 Hz;
• Phase: 1;
• Watts: 85W;
• Max Pressure: 145 psi;
• Max Temperature: 230F;
• Min Temperature: 36F;

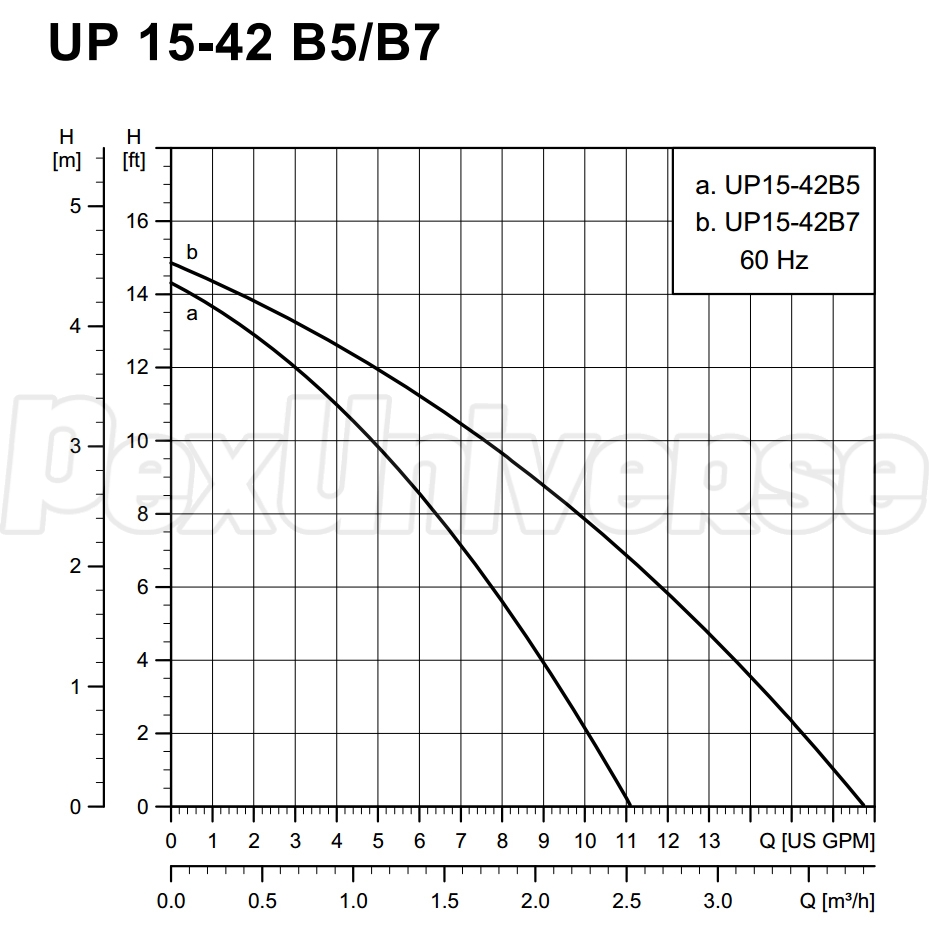

• Flow Range: 0-17 GPM;
• Head Range: 0-15 ft;
• Horse Power: 1/25HP;
• Body: Bronze;
• Connections: 3/4" Sweat;

Manufacturer's warranty:

2 years from the date of installation.

Documentation:

Grundfos UP Series Product Guide (pdf)

Grundfos UP15-42B7 (59896146) Technical data (pdf)

Grundfos UP15-42B7 (59896146) Installation Manual

Grundfos UP15-42B7 (59896146) Secondary Installation Manual
