Adjustable PEX Manifold Brackets
Adjustable PEX Manifold Brackets

Pair of Adjustable Manifold Brackets for 3/4", 1" or 1-1/4" Copper PEX Manifolds

Everhot

Brand: Everhot

Mfr Part#: MPB57

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$10.95 / each
  • Description
  • Reviews (3)
  • FAQs (2)

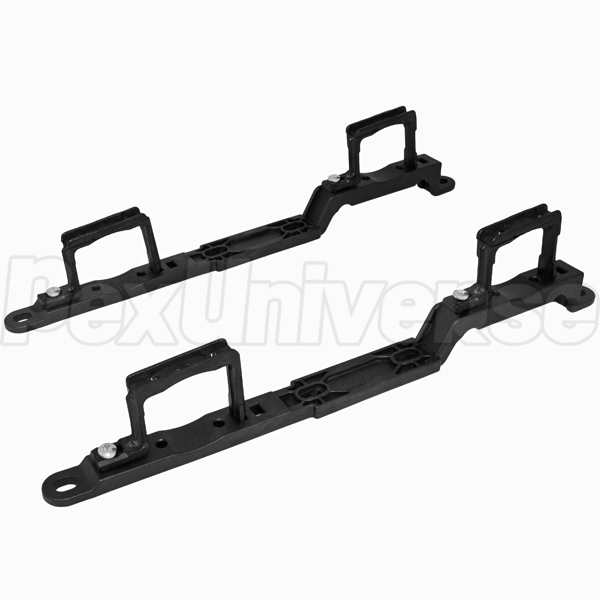

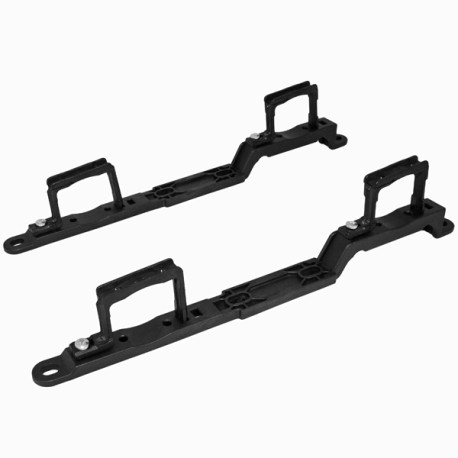

Adjustable Manifold Brackets for Copper Manifolds with 3/4", 1" or 1-1/4" copper pipe size trunk.

Best Suited for Sioux Chief PEX Manifolds.



How it works:

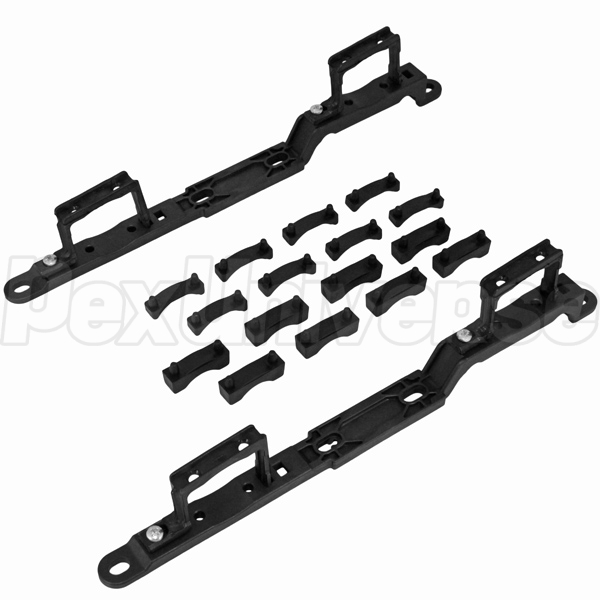

Besides the brackets themselves, each set includes (16) total rubber gaskets - (8) for smaller size pipe (manifold) diameters and (8) for larger.

For 3/4" copper pipe (7/8" OD) - use (8) small gaskets.

For 1" copper pipe (1-1/8" OD) and all Sioux Chief manifolds (except 679 series and 672XV3L-0431PK model) - use (4) small and (4) large gaskets.

For 1-1/4" copper pipe and Sioux Chief 6795L-12333 model - use (8) large gaskets.


Features:

  • Durable polymer construction will not rust or cause galvanic corrosion on contact
  • Offset on the bracket allows to route PEX tubing from second manifold behind the first manifold, eliminating the need for elbow fittings and bend supports
  • Works for wood, metal or concrete mounting surfaces
  • Enough spacing between the wall and the manifold allows to connect PEX tubing after the manifold is installed.
Pair of Adjustable Manifold Brackets for 3/4", 1" or 1-1/4" Copper PEX Manifolds has an average 4.0 out of 5 rating based on 3 user reviews.
6 of 6 people found this review helpful.

Good brackets -- but
By Biker duane (from Salt Lake City, Ut) on 8/17/2011
These are good manifold brackets but have many parts included in the bag with the brackets. It would be helpful, for 'layman installers' to have some instructions on the use of all the parts.
Was this review helpful?  Yes / No
5 of 5 people found this review helpful.

Good product
By J (from NC) on 4/22/2015
Brackets worked well after spending time figuring out the different parts included. Would be helpful to include some instructions.
Was this review helpful?  Yes / No
5 of 5 people found this review helpful.

Nice product
By andrew (from Saginaw, MI) on 4/23/2014
I installed 2 of these in my project, one each for hot and cold with 5-port copper manifolds. Made the finished job clean and neat and very professional. Even the building inspector was impressed. Only drawback was the lack of good instructions. The brackets are a bit difficult to figure out at first. Took me a little playing around to understand how all the parts connect and attach to the wall. Better instructions would definitely be a big ++.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Does one pair hold only one manifold or more?
Read 1 answer
2 of 2 people found this answer helpful.
Each bracket set holds (2) individual manifolds with trunk sizes 3/4", 1" or 1-1/4" (CTS copper pipe sizes).
Answered on 8/24/2015 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
Is it $10.95 per pair?
Read 1 answer
1 of 1 people found this answer helpful.
Yes, the kit includes 2 brackets.
Answered on 2/4/2013 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
