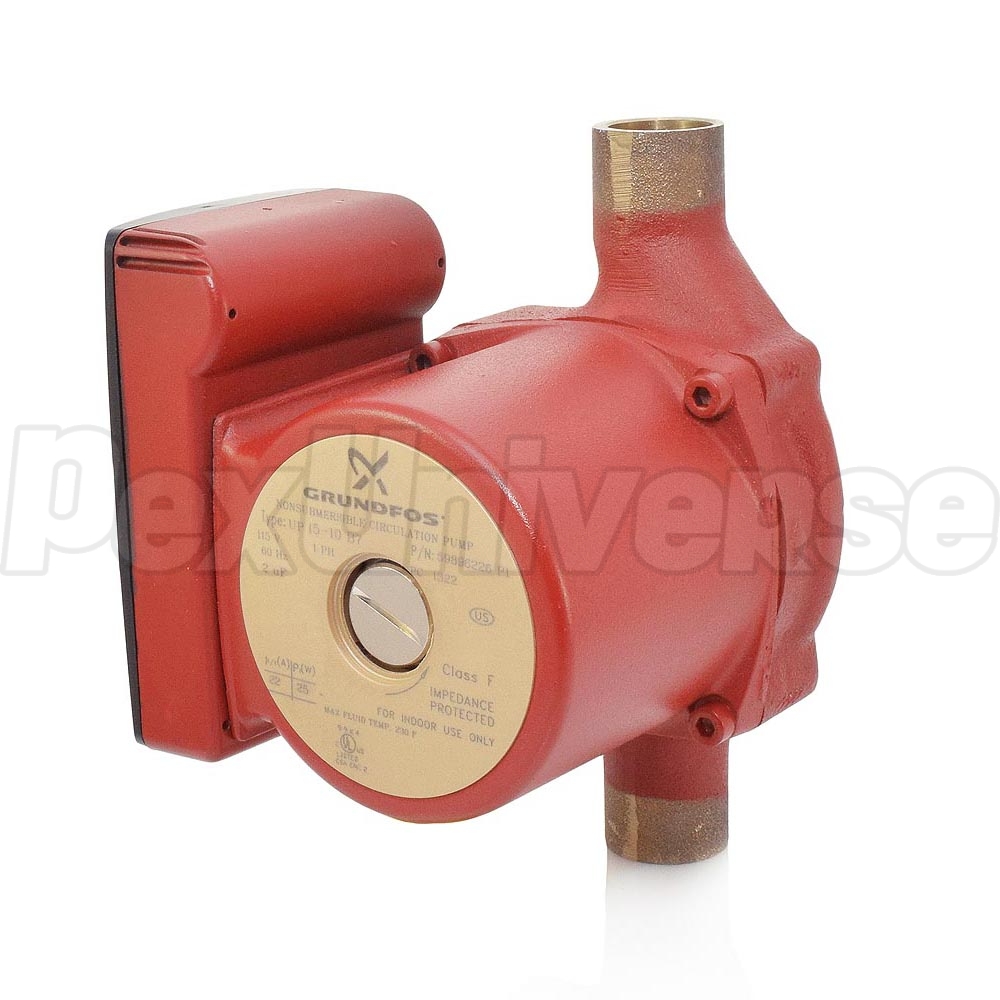

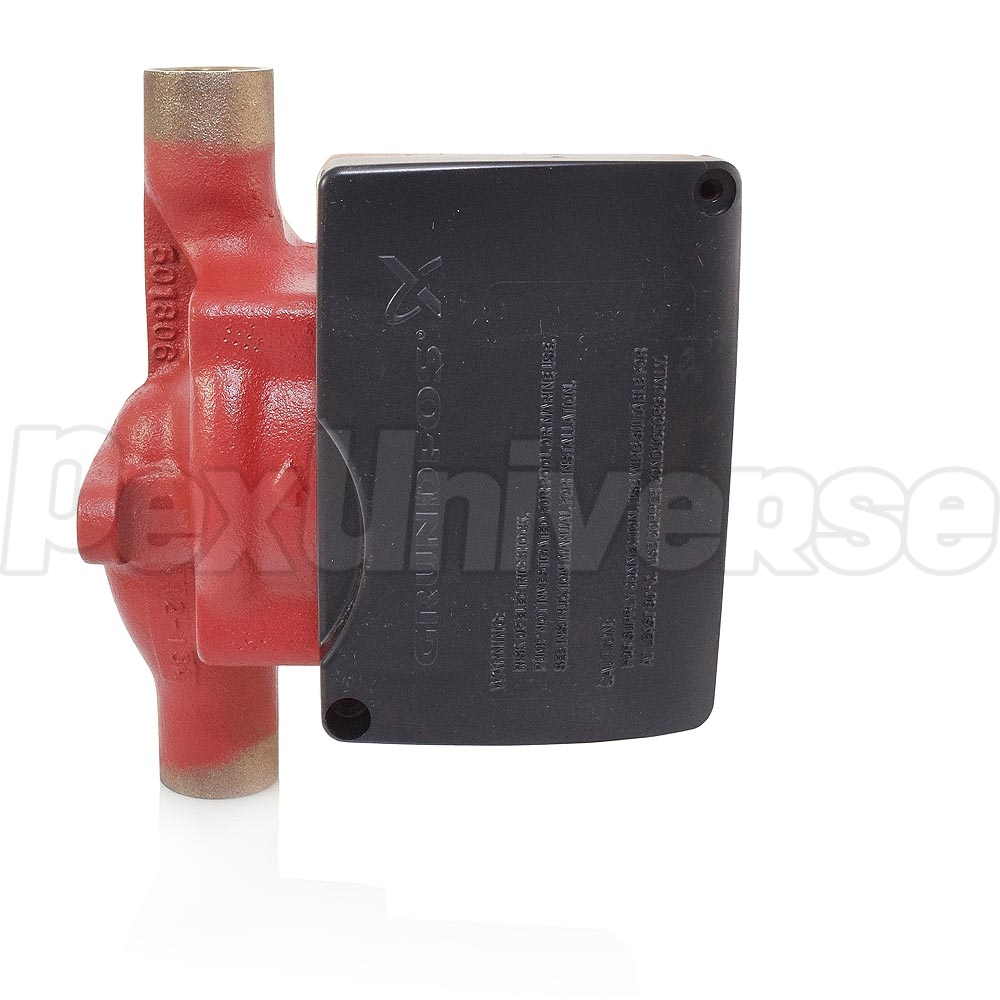

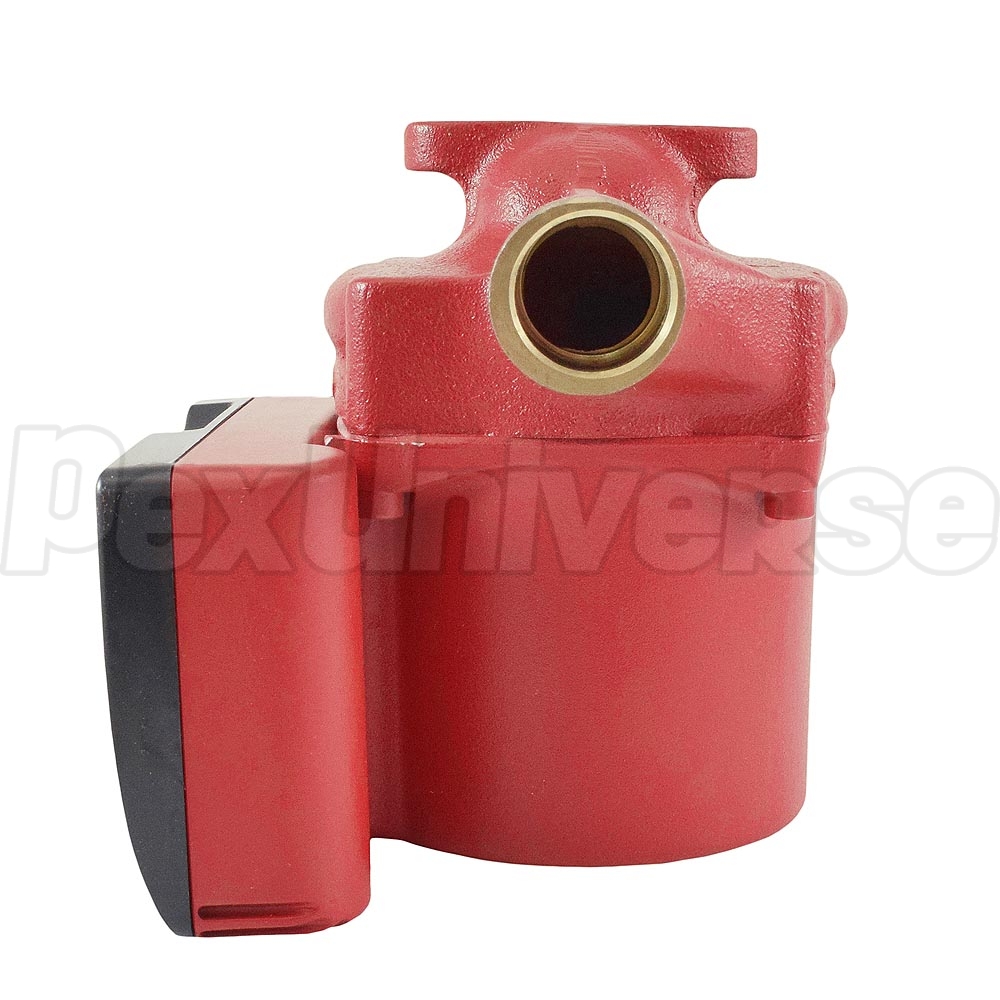

UP15-10B7 Bronze Circulator Pump, 3/4" Sweat, 1/25 HP, 115V

Grundfos

Brand: Grundfos

Mfr Part#: 59896226

Model: UP15-10B7

UPC#: 632514001923

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$197.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews (1)
  • FAQs

Grundfos UP15-10B7 is a 1/25HP Bronze Circulator Pump (59896226) with 3/4" Sweat inlet/outlet connections. Sweat connections of the UP15-10B7 model simplify the installation process and eliminate the need for purchase and installation of pump flanges - simply sweat the pump into the 3/4" copper line. Bronze circulation housing protects the pump from corrosion and allows for use it in different applications, such as hot water recirculation, radiant heating, hydronic heating, hot water storage tanks, etc.



Features:

  • Ceramic shaft and radial bearings;
  • Carbon axial bearing;
  • Stainless steel rotor can and bearing plate;
  • Corrosion-resistant impeller, Composite, PES;
  • Bronze pump housing;



Technical Specifications of Grundfos UP15-10B7:

  • Speed Number: 1;

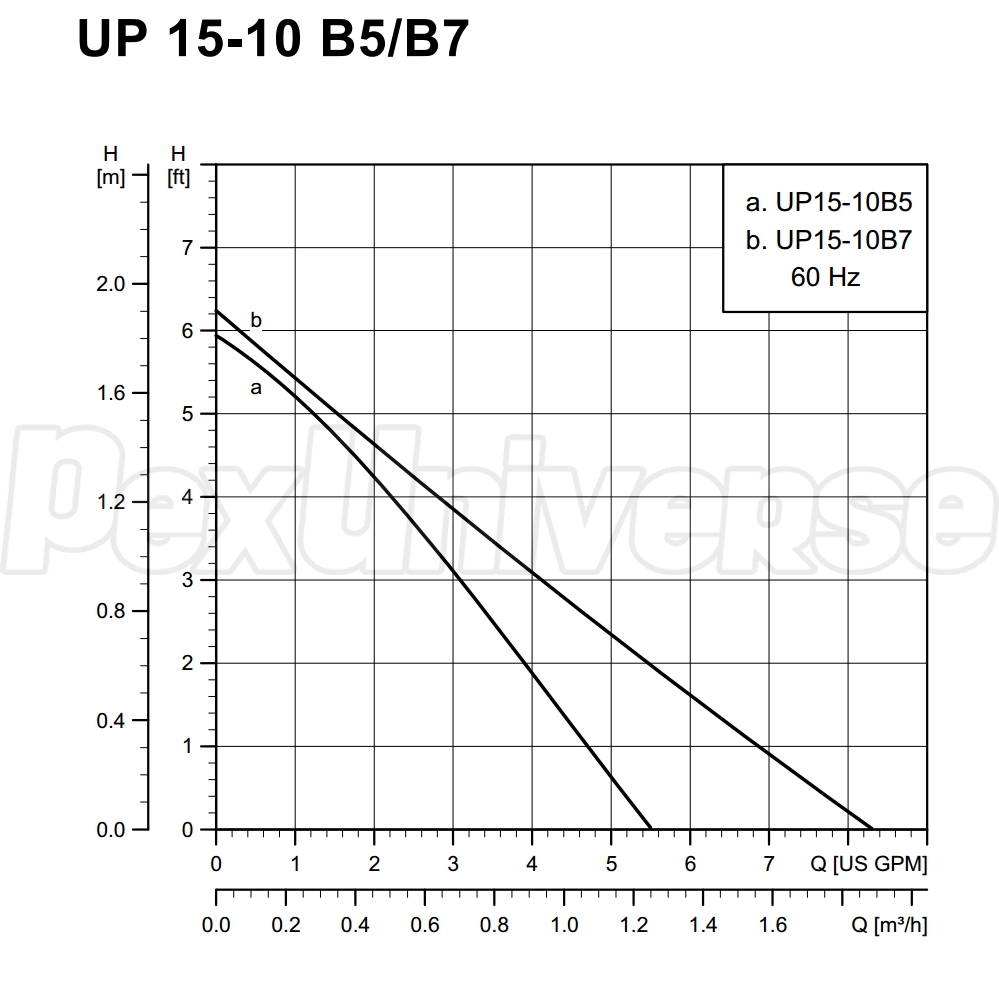

  • Max flow: 8.37 US gpm;
  • Head max: 6.23 ft;
  • Liquid temperature range: 35.6 .. 219.2 F;
  • Maximum operating pressure: 145 psi;
  • Approvals on nameplate: UL, CSA;
  • Pump housing: Bronze;
  • Pump housing: DIN W.-Nr. 2.1176.01;
  • Impeller: Composite, PES;
  • Maximum ambient temperature: 104 F;
  • Ambient max at 176 F liquid: 176 F;
  • Maximum operating pressure: 145 psi;
  • Flange standard: USA Sweat;
  • Type of connection: Bronze Sweat;
  • Pipe connection: 3/4" Sweat;
  • Pressure stage: 10;
  • Port-to-port length: 6 3/8";
  • Number of poles: 2;
  • Max. power input: 25 W;
  • Rated power - P2: 0.04 HP;
  • Main frequency: 60 Hz;
  • Voltage: 115V;
  • Current in speed 3: 0.22 A;
  • Capacitor size - run: 2F/400 V;
  • Insulation class (IEC 85): F;
  • Gross weight: 6.7 lb;



Manufacturer's warranty:

2 years from date of installation.

UP15-10B7 Bronze Circulator Pump, 3/4" Sweat, 1/25 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.

Excellent circulatior for tank type water heater
By Mitch, Plumber (from Los Angeles,CA) on 8/16/2016
Bought this pump 3 months ago, set it with ~30 feet 3/4" pex return. works as charm. Really quiet
