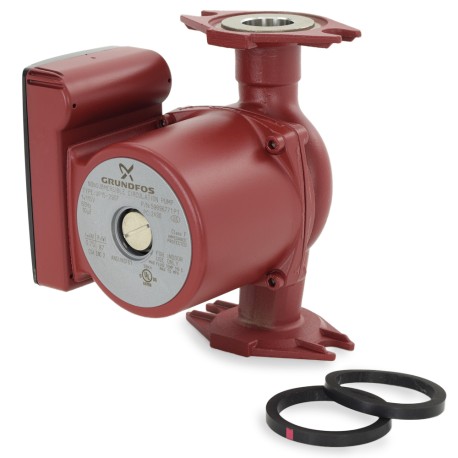

Grundfos UP15-29SF Stainless Steel Circulator Pump, 1/8HP, 115V (59896771)

Grundfos UP15-29SF (Grundfos SKU# 59896771) 1/8HP, stainless steel, flanged Circulator Pump, primarily used in open loop heating systems, such as radiant, solar, hot water recirculation as well as chilled water cooling and many others.

Grundfos UP15-29SF Features:

• Built-in motor protection for longer life;
• Stainless Steel circulator body;
• UL/CSA listed
• Includes (2) Gaskets;

Applications:

• Suitable for a wide range of radiant heating and hydronic heating applications

Technical Specifications of Grundfos UP15-29SF:

• Voltage: 115V;
• Amperage: 0.75 Amps;
• Hertz: 60 Hz;
• Phase: 1;
• Watts: 87W;
• Max Pressure: 145 psi;
• Max Temperature: 230F;
• Min Temperature: 36F;
• Flow Range: 0-20.5 GPM;
• Head Range: 0-9.7 ft;
• Horse Power: 1/8HP;
• Body: Stainless Steel;
• Connections: Flanged, 3/4", 1", 1-1/4";

Manufacturer's warranty:

2 years from date of installation.

Documentation:

Grundfos UP Series Product Guide (pdf)

Grundfos Stainless Steel UP(S) (pdf)

Grundfos UP15-29SF (59896771) Technical data (pdf)

Grundfos UP15-29SF (59896771) Installation Manual

Grundfos UP15-29SF (59896771) Secondary Installation Manual
