Grundfos UP15-29SU Stainless Steel Circulator Pump, 1-1/4" Union, 1/6HP, 115V (59896775)

Grundfos UP15-29SU Circulator Pump, 59896775
Click on image to enlarge

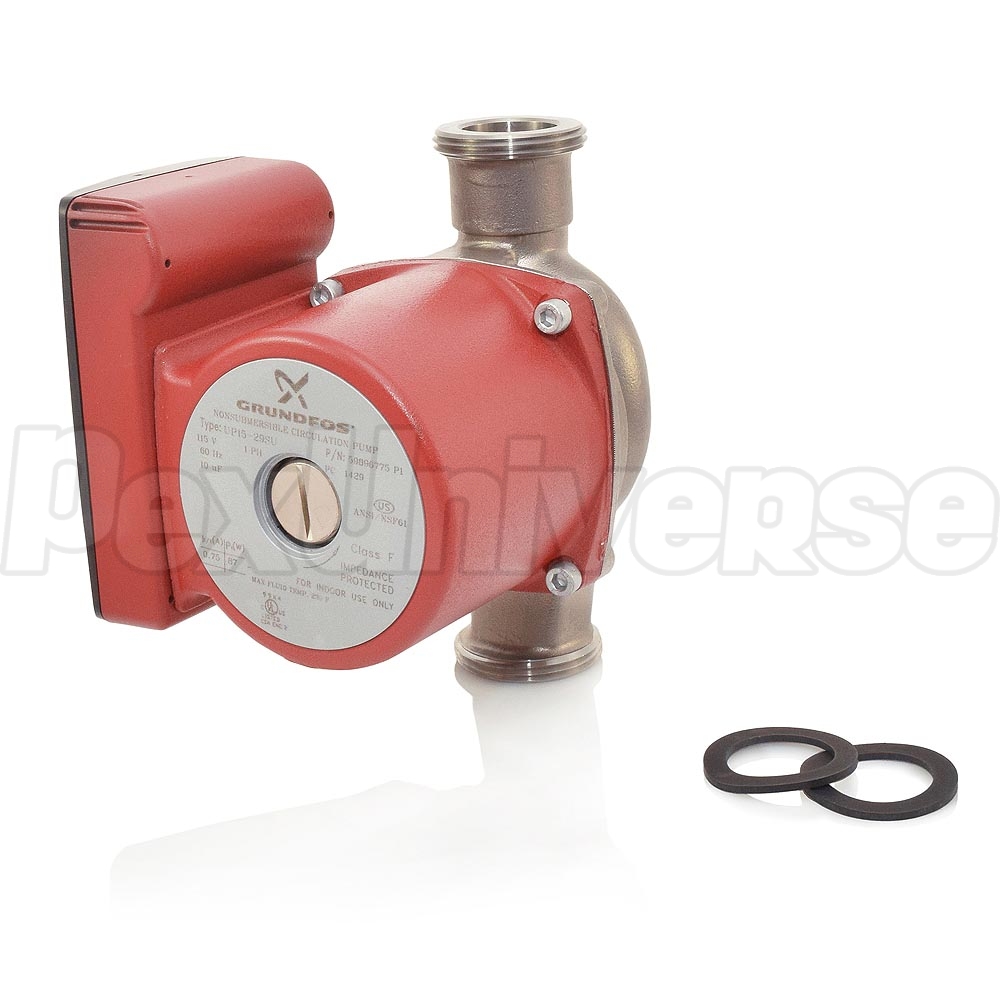

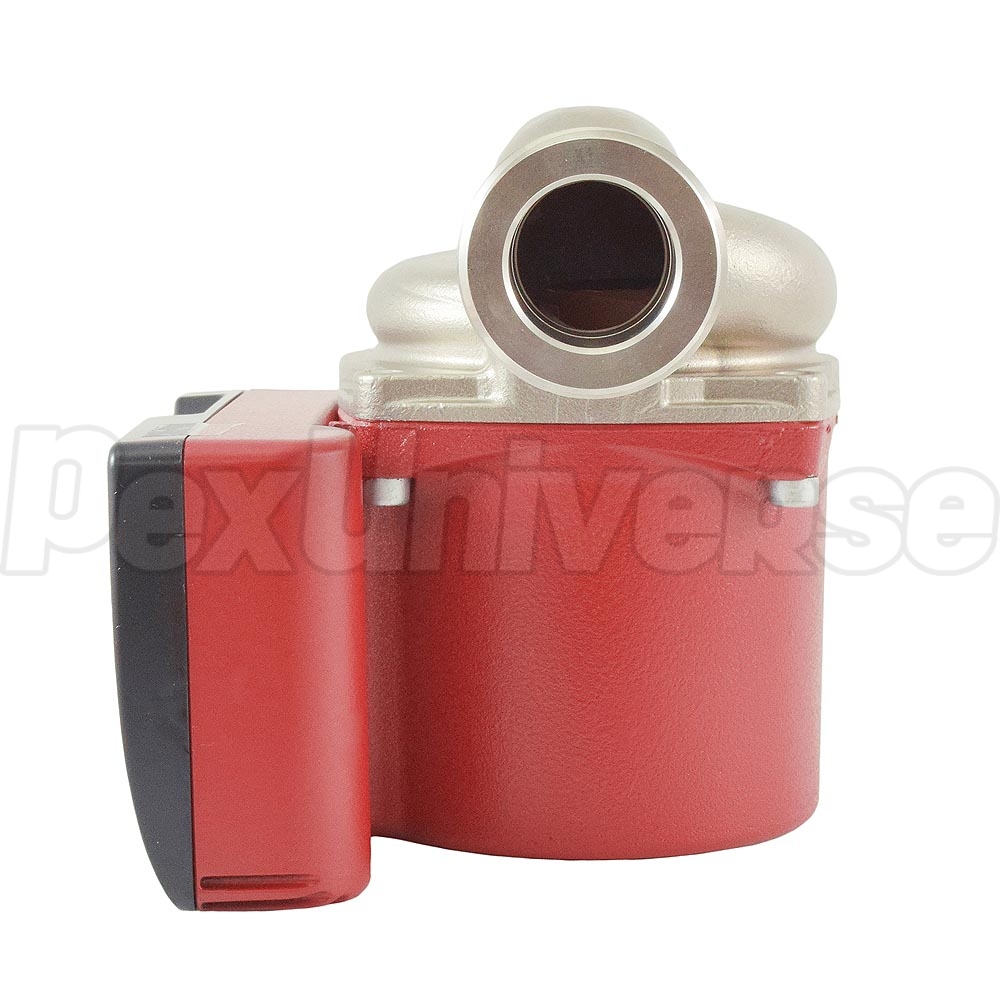

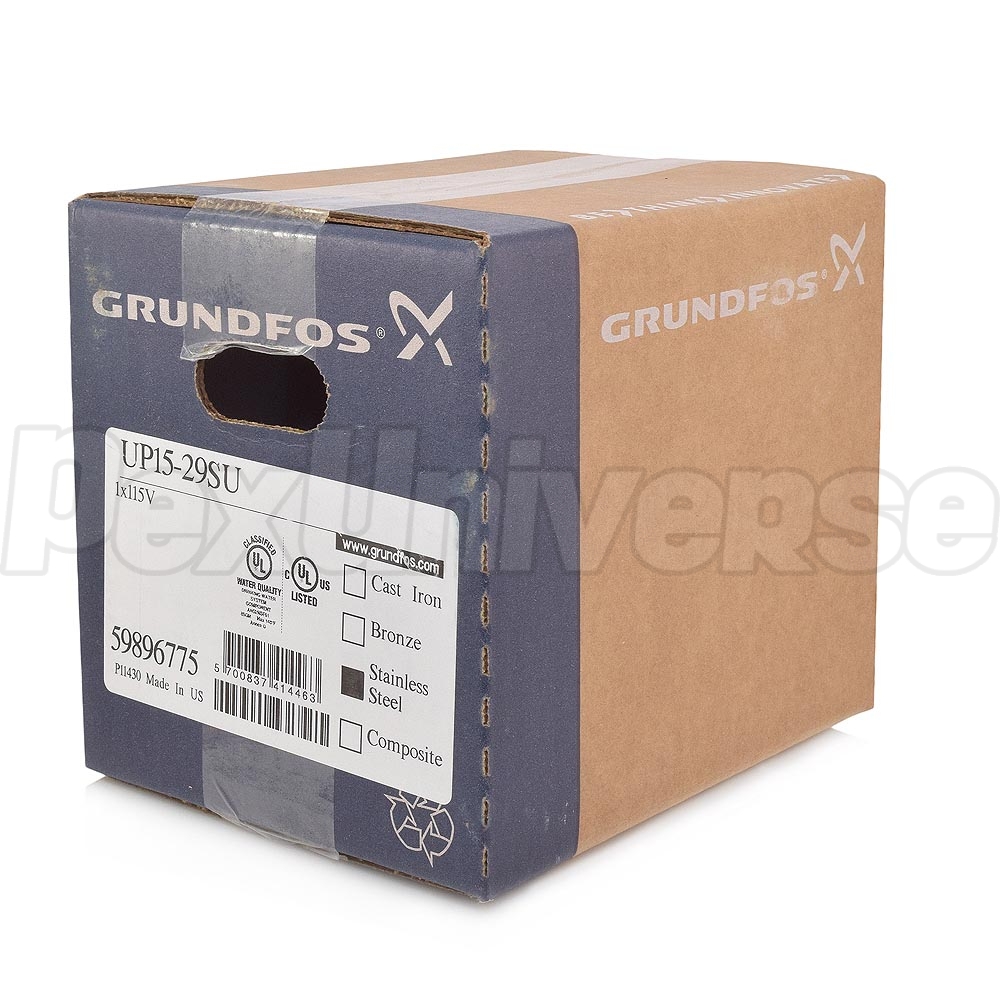

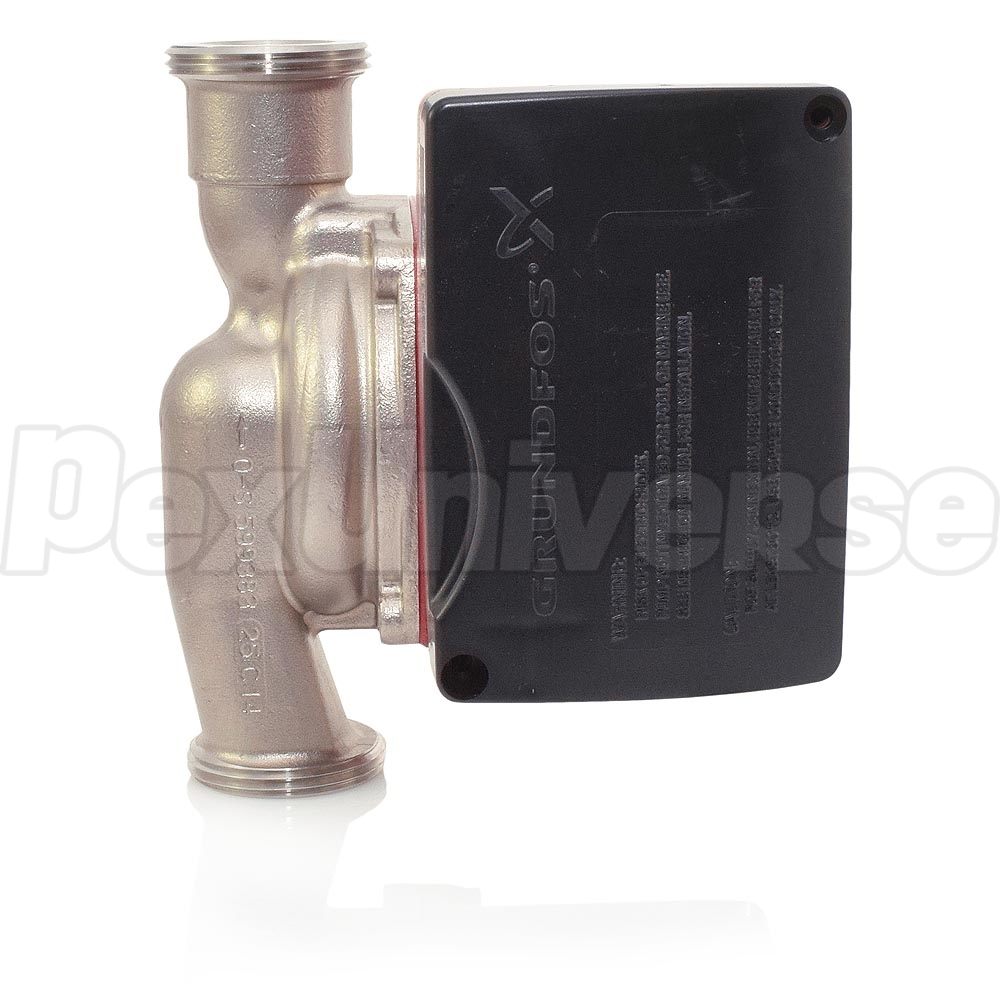

Grundfos UP15-29SU Circulator Pump Side ViewGrundfos UP15-29SU Circulator Pump in BoxGrundfos UP15-29SU Circulator Pump
Grundfos

Available For US Only

Brand:

SKU#:

Model:

UPC#:

Grundfos

59896775

UP15-29SU

632514174535
4
Write a Review
Availability: In Stock
Usually ships: within 1 business day
Qty Price
$158.95 / each
Add to cart McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams
  • Description
  • Reviews
  • FAQs

Grundfos UP15-29SU (59896775) model circulator incorporates a stainless steel body design and 1-1/4" union connection, smaking it suitable for a wide range of open and closed loop radiant heating, hydronic heating, hot water recirculation, solar & other applications.



Grundfos UP15-29SU Features:

  • Built-in motor protection for longer life
  • Whisper-quiet operation
  • Stainless Steel circulator body
  • Engineered to meet the needs of residential hot water and heating systems
  • UL/CSA listed



Applications:

  • Used in both closed and open loop systems
  • Hydronic and fan coil heating
  • Hot water recirculation systems
  • Solar heating
  • Radiant heating systems



Technical Specifications of Grundfos UP15-29SU:

  • Voltage: 115V;
  • Amperage: 0.42 Amps;
  • Hertz: 60 Hz;
  • Phase: 1;
  • Watts: 97W;
  • Max Pressure: 145 psi;
  • Max Temperature: 230F;
  • Min Temperature: 36F;

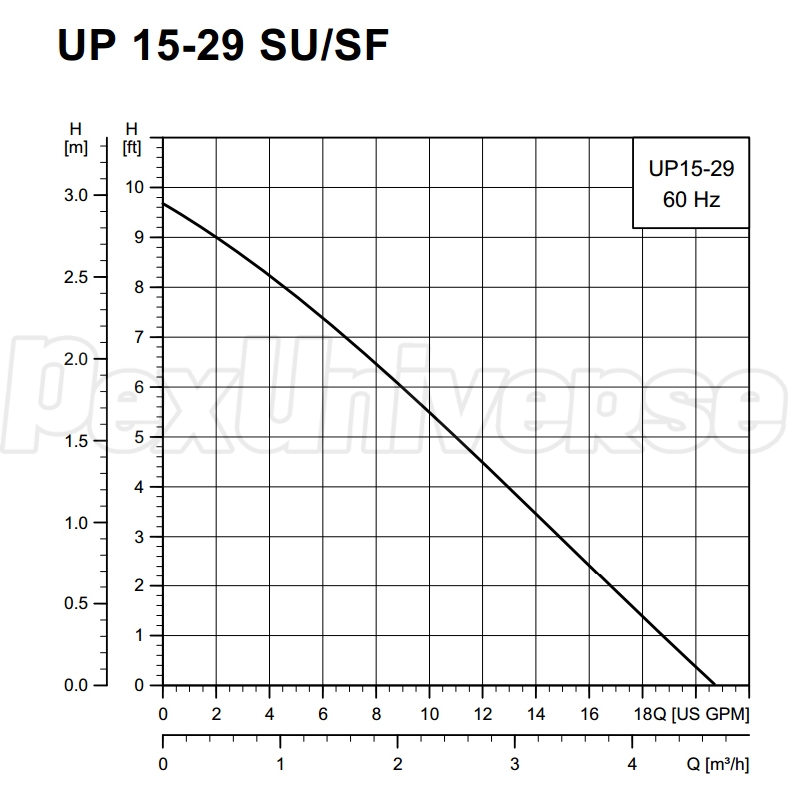

  • Flow Range: 0-20.5 GPM;
  • Head Range: 0-9.7 ft;
  • Horse Power: 1/6HP;
  • Body: Stainless Steel;
  • Connections: GU125 (1-1/4” Union);



Manufacturer's warranty:

2 years from date of installation.



Documentation:

Grundfos UP Series Product Guide (pdf)

Grundfos Stainless Steel UP(S) (pdf)

Grundfos UP15-29SU (59896775) Technical data (pdf)

Grundfos UP15-29SU (59896775) Installation Manual

Grundfos UP15-29SU (59896775) Secondary Installation Manual
4
Average 3.8 rating based on 5 reviews.
Write a Review
4
Grundfos pump
By (from ok.) on 12/28/2011
Review for: Grundfos UP15-29SU Stainless Steel Circulator Pump, 1-1/4" Union, 1/6HP, 115V (59896775)
I just installed the pump very easy & very quiet I would recomend this pump.
1
Do Not buy this pump
By (from Wyoming) on 12/15/2011
Review for: Grundfos UP15-29SU Stainless Steel Circulator Pump, 1-1/4" Union, 1/6HP, 115V (59896775)
The largest union sold to fit this pump is only 3/4 inch, while the ID of the pump inlet and outlet is 1 inch. Makes no sense, and no help from the company.
4
ssss
By (from garfield,NJ) on 12/11/2011
Review for: Grundfos UP15-29SU Stainless Steel Circulator Pump, 1-1/4" Union, 1/6HP, 115V (59896775)
ok
5
This is the best
By (from Phoenix, AZ) on 11/4/2011
Review for: Grundfos UP15-29SU Stainless Steel Circulator Pump, 1-1/4" Union, 1/6HP, 115V (59896775)
"I installed a hot water circulator pump, with a NEW dedicated return line, back to the COLD water inlet of my water heater. A Grundfos pump was install in my last home and I was told this is the best pump made. After 10 years of non-stop trouble free use, in my old home, I only wanted a Grundfos in my new home. This Grundfos UP15-29SU Model allowed me to install the pump at the HOT outlet of the water heater with the 3/4"" Threaded Bronze Grundfos Pump Union Set #GU125 (that I bought at the same time) very quickly and with ease, using just a third part (one 3/4"" nipple) back into my old flex pipe that I just removed to install the pump on top of my water heater. This Stainless Steel Grundfos Pump is a beautiful piece of quality and PexUniverse.com as all the research available to pick the best style pump for your intended purpose along with the required Grundfos connection parts. Now my new home has HOT water at the bath/shower and sinks with-out the LONG wait and waste of running all that cold water down the drain."
5
super qiuet
By (from NEWPORT BEACH, CA) on 9/21/2011
Review for: Grundfos UP15-29SU Stainless Steel Circulator Pump, 1-1/4" Union, 1/6HP, 115V (59896775)
Pump is compatible with old style timer.
