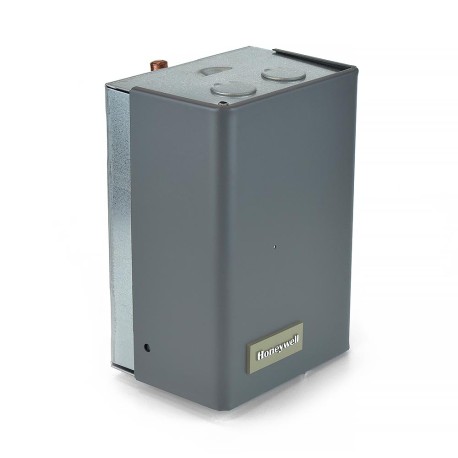

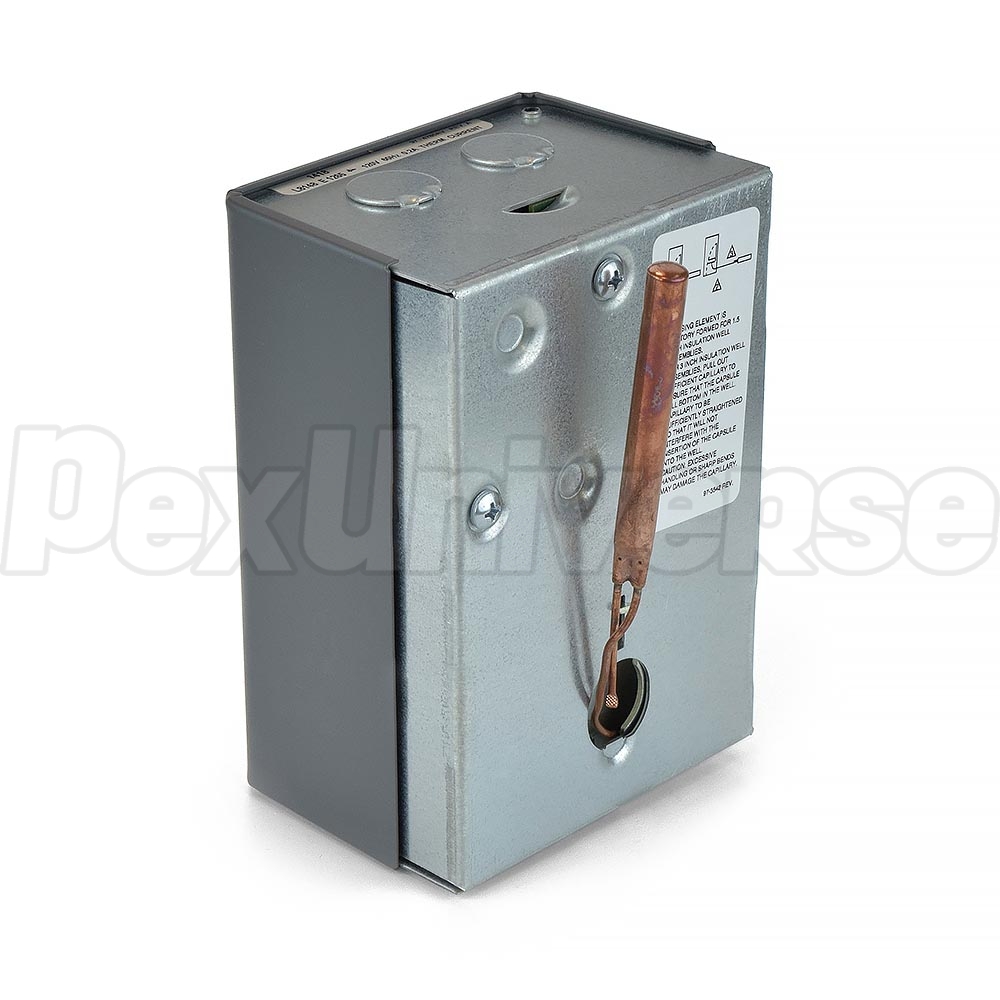

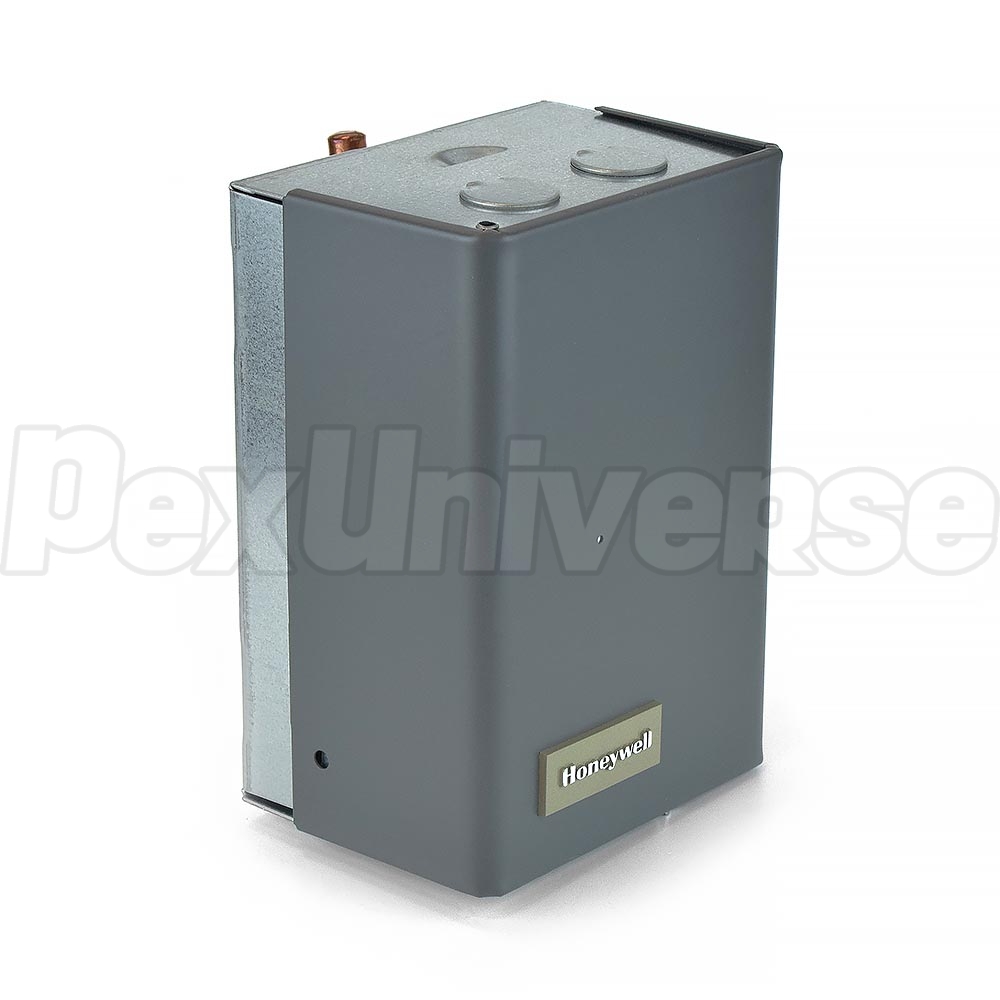

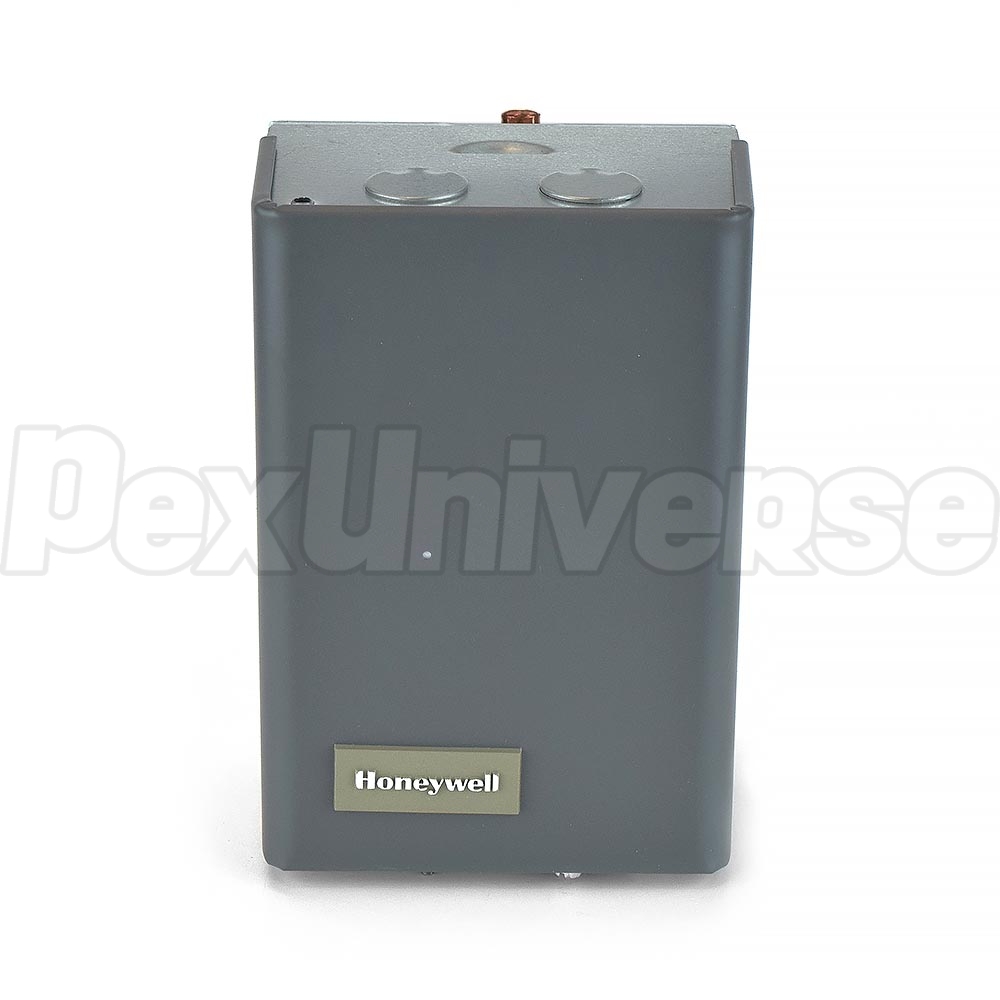

Immersion-type controllers that combine high limit protection with switching relay control of burner and circulator motors.
- High limit opens burner circuit only;
- Case available for horizontal or vertical mounting;
- Requires a 24 Vac thermostat with heat anticipator set at 0.2A.
- Application: High Limit;
- Dimensions (Height x Width x Depth): 6 1/8" x 4 5/16" x 3 1/8" (156mm x 110mm x 79mm);
- Temperature Range: 150°F with 1.2 A 24 V load, 77°F with 1.4 A 24 V load (66°C, 25°C);
- Mounting: Vertical Mount;
- Operating Temperature Range: High Limit 130°F to 240°F (54°C to 116°C), Low Limit 110°F to 220°F (43°C to 104°C);
- Differential Temperature: 15°F fixed;
- Electrical Ratings, Burner & Circulator: Low Voltage 0.8A max. @ 24 Vac, 0.25A @ 0.25-12 Vdc, At Locked Rotor - 44.4A @ 120 Vac (22.2A @ 240 Vac).
