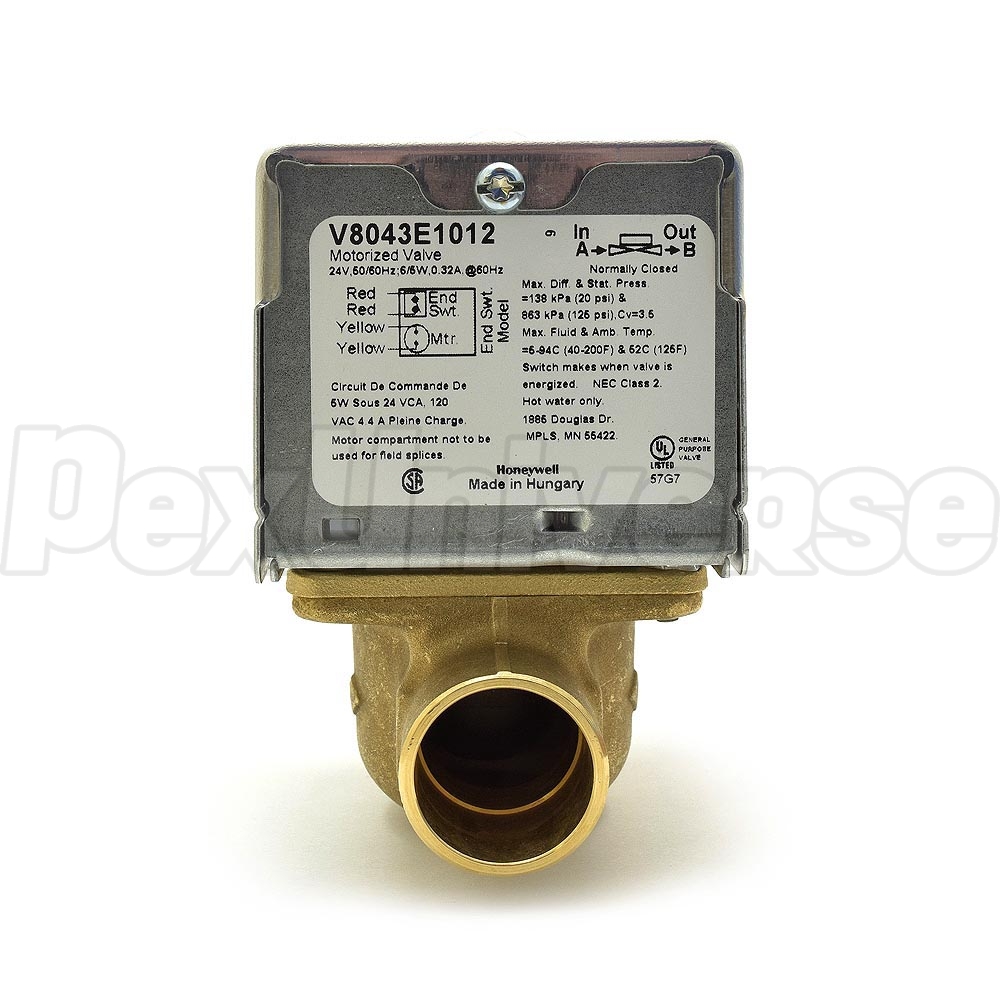

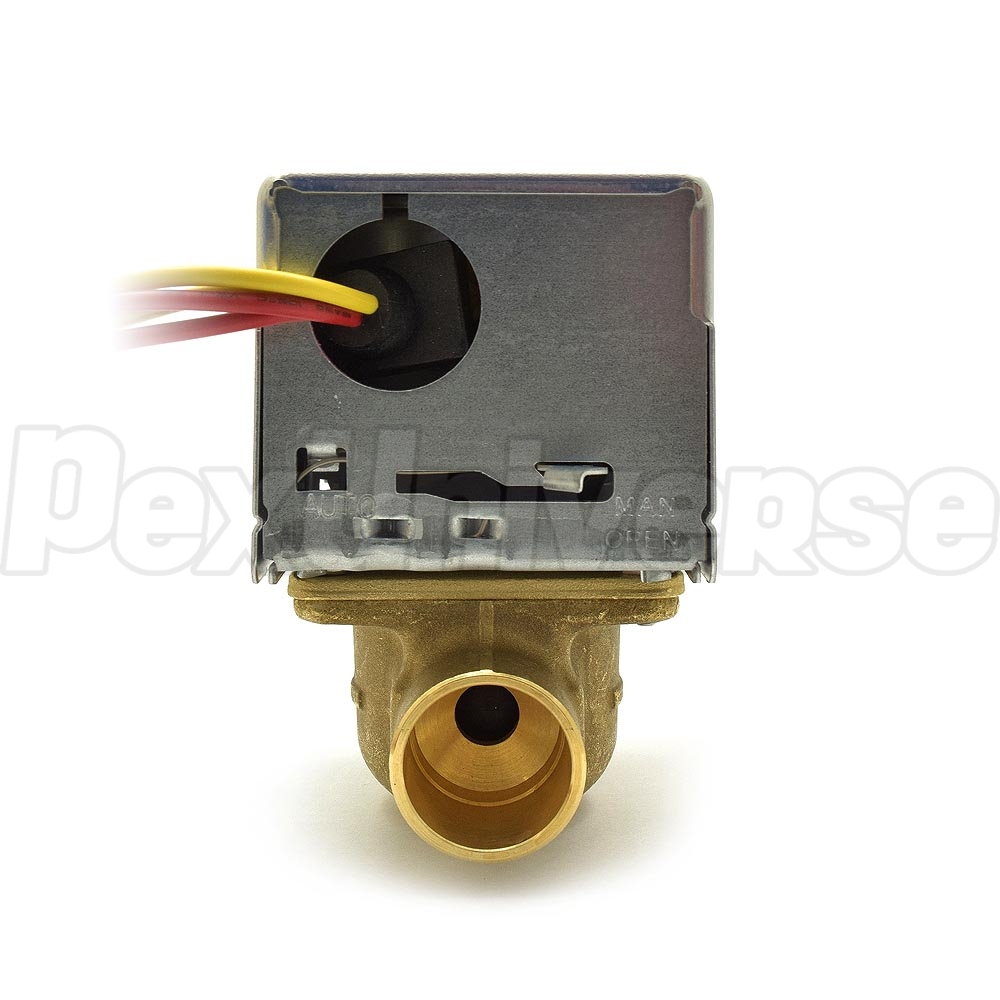

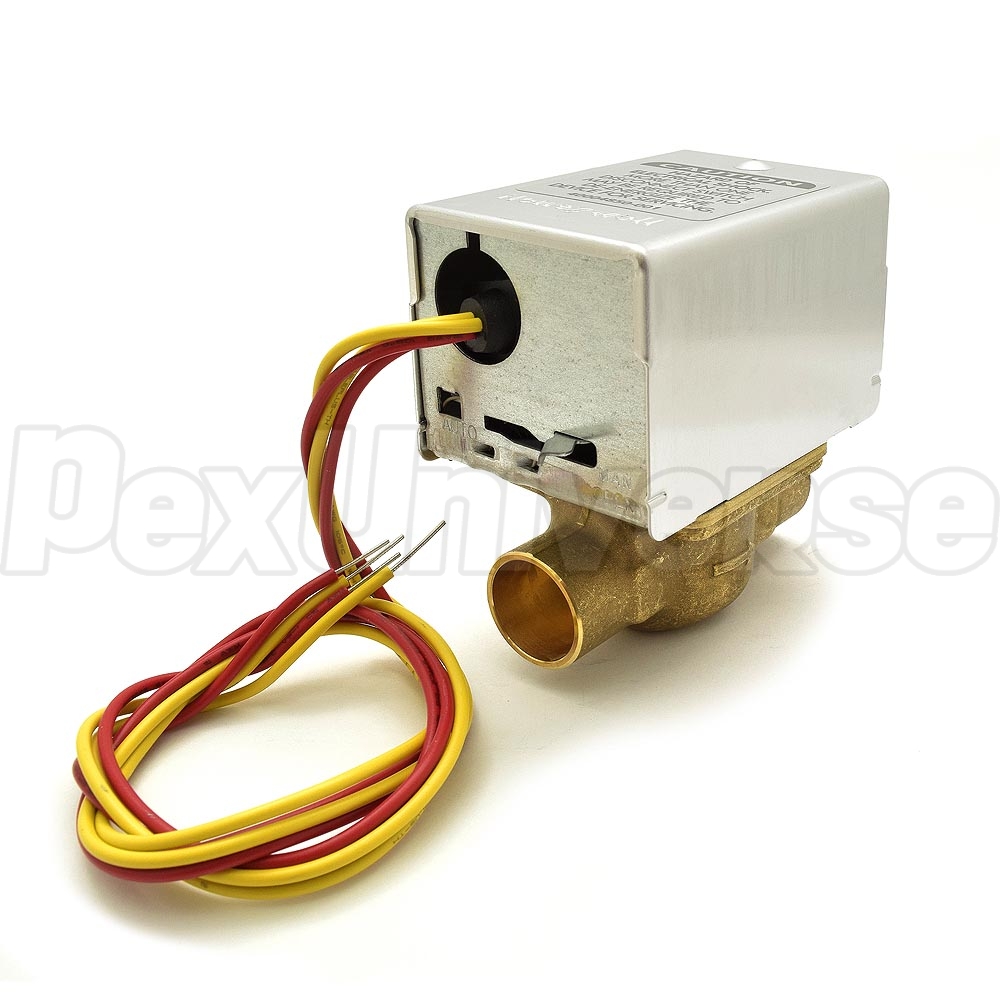

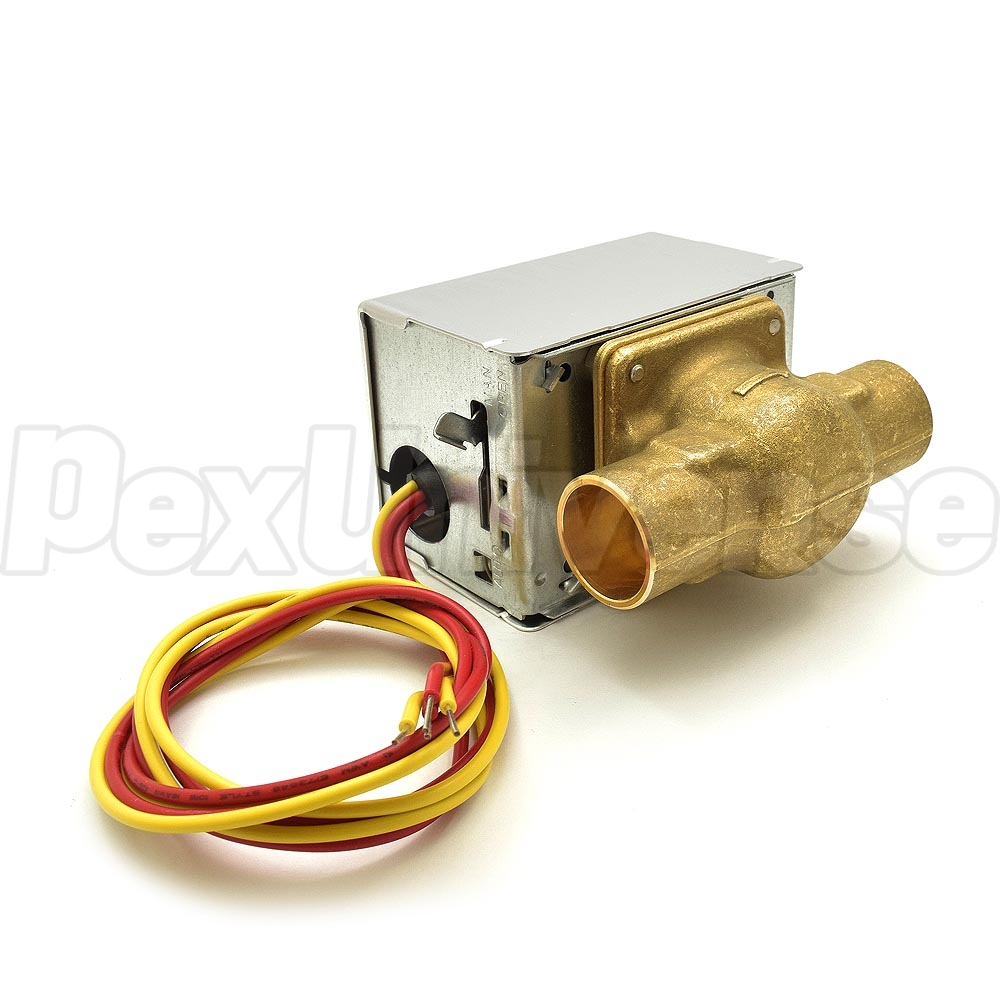

3/4" Sweat Zone Valve w/ End Switch, 18" leads

Honeywell

Brand: Honeywell

Mfr Part#: V8043E1012

UPC#: 085267990043

Availability: In Stock
Usually ships: within 1 business day
Qty Price
x1
$62.95 / each
x4 $243.80 / box & Free Shipping
(4 x $60.95 / each)
  • Description
  • Literature
  • Reviews
  • FAQs

Honeywell V8043E1012 is a 3/4" Sweat Connection Motorized two-way on-off low voltage Zone Valve.

Honeywell Zone Valves V8043 consists of an actuator and valve assembly for controlling the flow of hot water.



Features:

  • May be installed without disassembling the valve;
  • Manual opener (on all models, except straight-through, normally open valves) for valve operation on power failure; valve returns to automatic position when power is restored;
  • Complete powerhead may be removed or replaced without breaking plumbing line connections or draining the system;
  • Compact construction for easy installation;
  • Approvals of Underwriters Laboratories Inc (UL Component Listed: File MH11826 Vol. 1);
  • Actuator motor may be replaced without removing the valve body or draining the system;



Applications:

  • Hydronic Control. Use this valve in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water.
  • Valve designed for cycling (not constantly powered on) applications;



Technical Specifications of Honeywell V8043E1012:

  • Connection Type: Sweat;
  • Pipe Size (inch): 3/4";
  • Pipe Size (DN): DN20;
  • Body Pattern: Two-way, Straight-through;
  • Capacity (Cv): 3.5 Cv;
  • Capacity (Kv): 3 Kv;
  • De-energized Position: Normally Closed;
  • Maximum Close-off Pressure (psi): 20 psi;
  • Fluid Temperature Range: 50 F to 200 F;
  • Electrical Connections: 18" leads;
  • Power Consumption: 7.7 VA;
  • Nominal Timing: 15 sec;
  • Valve Action: Spring return to close;
  • Maximum Ambient Temperature: 125 F;
  • Dimensions: 4" high x 3-1/2" wide x 2-3/8" deep;
  • Type: 2 position;
  • Auxiliary End Switch: SPST;
  • End Switch Rating: 50 VA pilot duty @ 24 V;
  • Static Pressure (psi): 125 psi;
  • Materials (Body): Brass;
  • Materials (Stem): Stainless Steel;
  • Materials (Ball Plug): Buna-N (NBR) Rubber Ball;
  • Materials (Packing O-rings): EPDM O-rings;
  • Voltage: 24V;
  • Manual Opener: Yes;
  • Tradeline Value: Tradeline
