Manual Sewage Pump, 10' cord, 3/4 HP, 208/230V

Liberty Pumps

Brand: Liberty Pumps

Mfr Part#: LE72M2

UPC#: 671812101850

Usually ships: within 5-7 business days
Qty Price
$554.00 / each & Free Shipping
Add to card Add to cart
  • Description
  • Literature
  • Reviews
  • FAQs

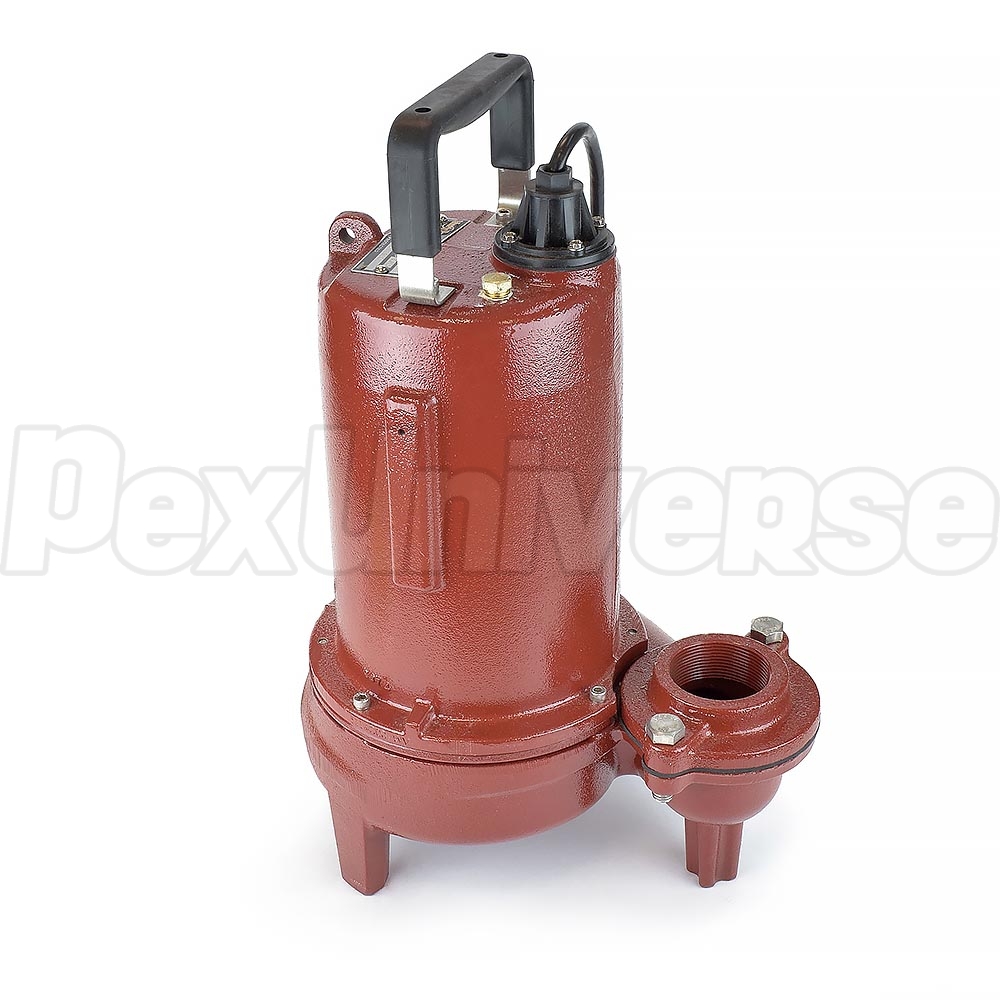

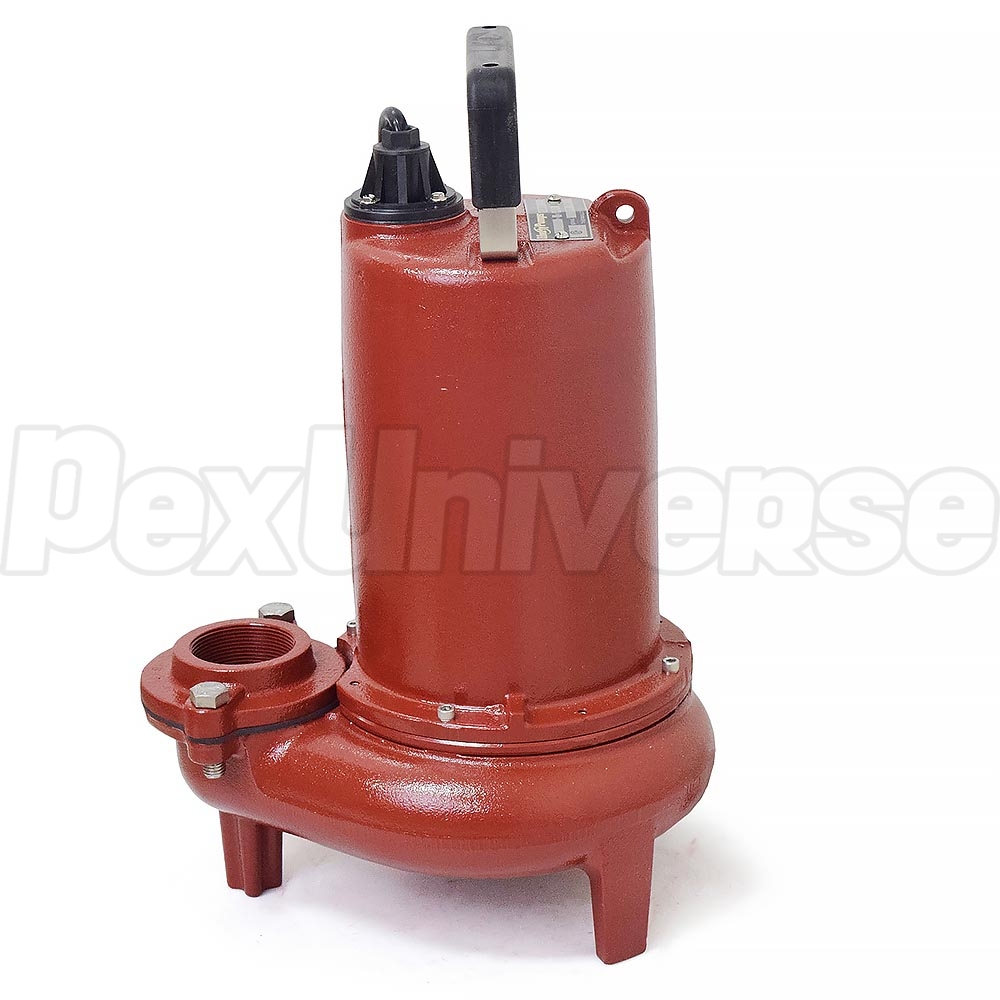

The Liberty Pump LE72M2 is a manual submersible sewage pump with 3/4HP, 230V motor and a 10' quick-disconnect power cord. The Liberty LE72M2 is intended to be run using an approved liquid level control or approved motor control with correct rating that matches motor input in full load amperes. Be sure that when the Liberty sewage pump shuts off, at least 6" of fluid is left in the basin so the impeller remains submerged. Separate approved pump control device or panel is requires for automatic operation.



The Liberty Pump LE72M2 manual submersible sewage pump features rugged 2-vane, semi-open impellers that allow handling of 2" solids. This Liberty sewage pump also has a 2" FNPT flanged discharge and a shut-off head of 28'. The heavy-duty built Liberty Pumps LE72M2 sewage pumps are ideal for residential and light commercial sewage applications.


Features:

  • Rugged 2 vane, semi-open cast iron impellers;
  • Cast iron housings and volute with all stainless and brass fasteners;
  • 416 stainless steel rotor shaft;
  • Oil-filled, hermetically sealed motors;
  • Built-in thermal protection on single phase models;
  • Permanently lubricated upper and lower ball bearings;
  • Unitized shaft seals;
  • Single float mechanical level control with series plug for manual bypass operation-standard on single-phase automatic models;
  • Adjustable pumping range;
  • Quick-disconnect 10' standard power cord allows replacement of cord in seconds without breaking seals to motor;

Technical Specifications:

  • Horsepower: 3/4HP;
  • Cord length: 10';
  • Discharge: 2" FNPT Flanged;
  • Solids Handling: up to 2";

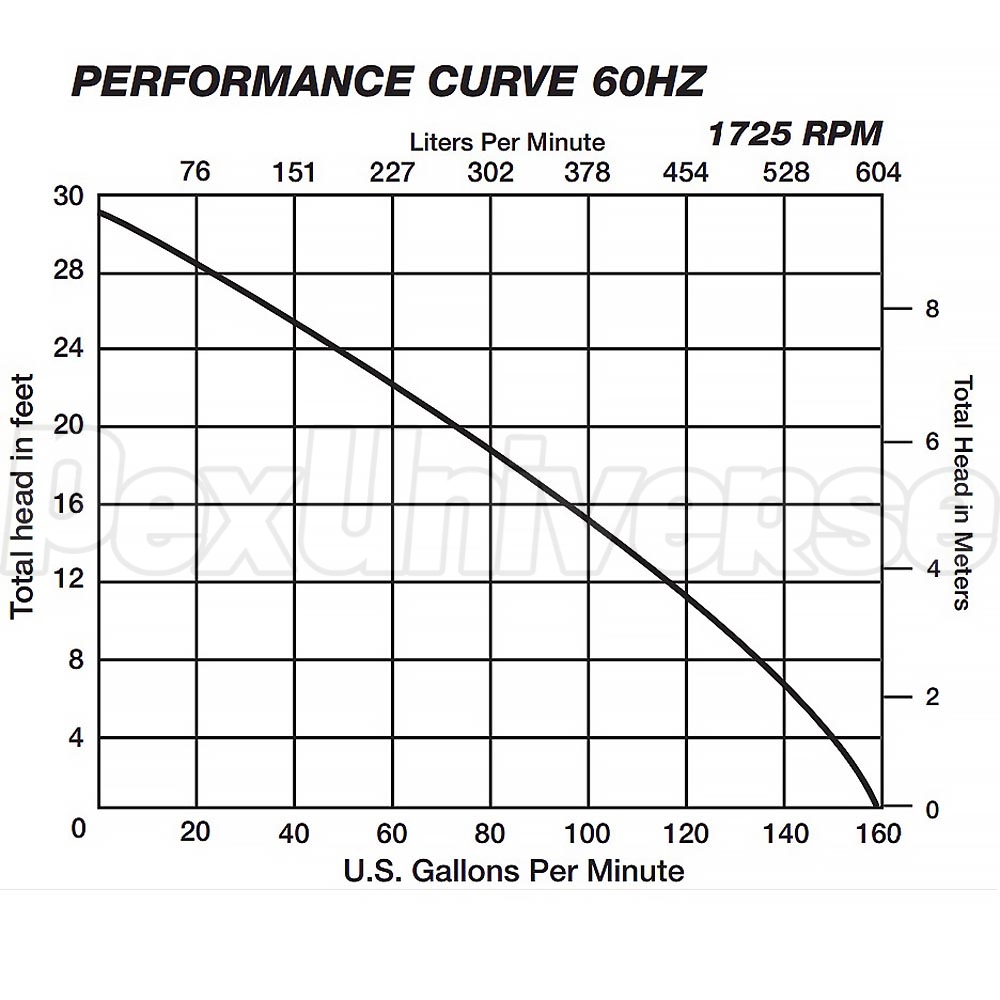

  • Shut-off Head: 28';
  • Voltage: 208-230V;
  • Amps: 6;
  • Hertz: 60 Hz;
  • Phase: 1;
  • RPM: 1725;
  • Maximum fluid temperature: 140°F;
  • Height: 14.1";
  • Width: 12.25";
  • Weight: 60 lbs.;
  • Minimum basin diameter: 18";
  • Minimum basin depth: 24";
