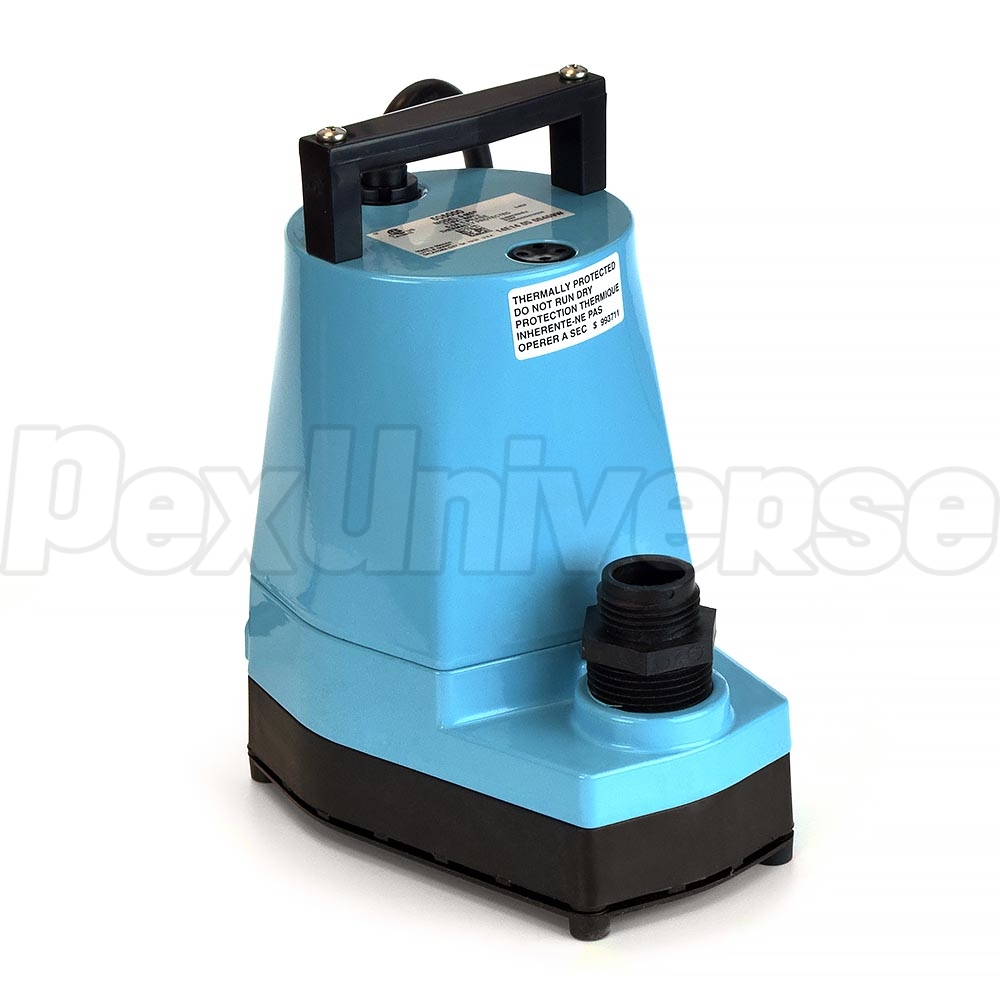

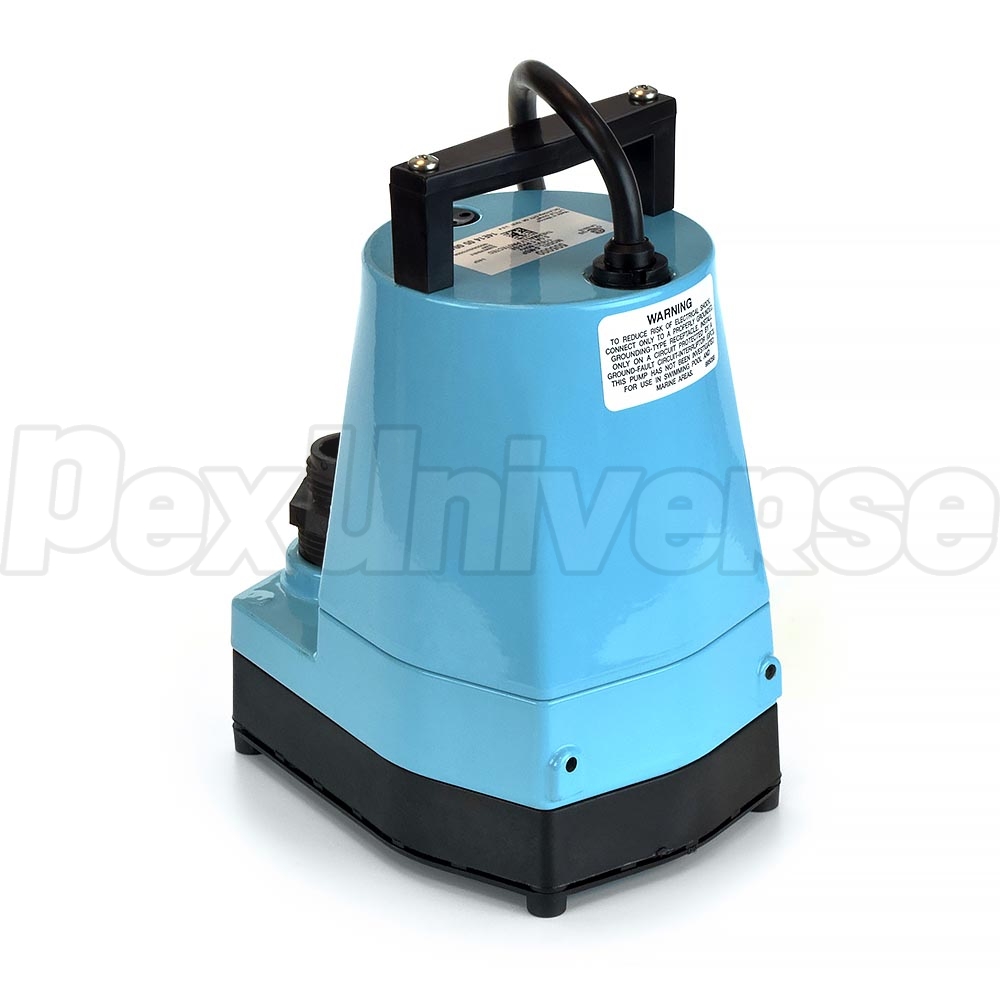

5-MSP Manual Submersible Utility/Sump Pump w/ 25' cord, 1/6 HP, 115V
Brand: Little Giant
Part#: 505025
Model: 5-MSP
This product has been discontinued. No direct replacement is available at this time.
Little Giant 5-MSP (505025) is a 1/6HP, manually-operated, dual-purpose submersible sump pump / utility pump with a 25ft power cord, lubricated for life motor, 1" FNPT discharge and removable inlet screen for easy cleaning. The Little Giant 5-MSP series pumps are capable of pumping water down to 1/8" level.
Both 5-ASP and 5-MSP Little Giant utility pumps feature an epoxy coated cast aluminum housing.

Head (ft) Flow (GPH) Head (m) Flow (LPH)
1 1200 0.3 4542.5
3 1170 0.9 4428.9
5 1100 1.5 4164.0
10 1000 3.0 3785.4
20 520 6.1 1968.4

Applications:
For a wide range of de-watering and fluid transfer applications.
Features:
  • 1/6 HP shaded pole motor with overload protection
  • Designed for continuous duty
  • Pumps water down to 1/8" level
  • Regular garden hose adapter for discharge is included

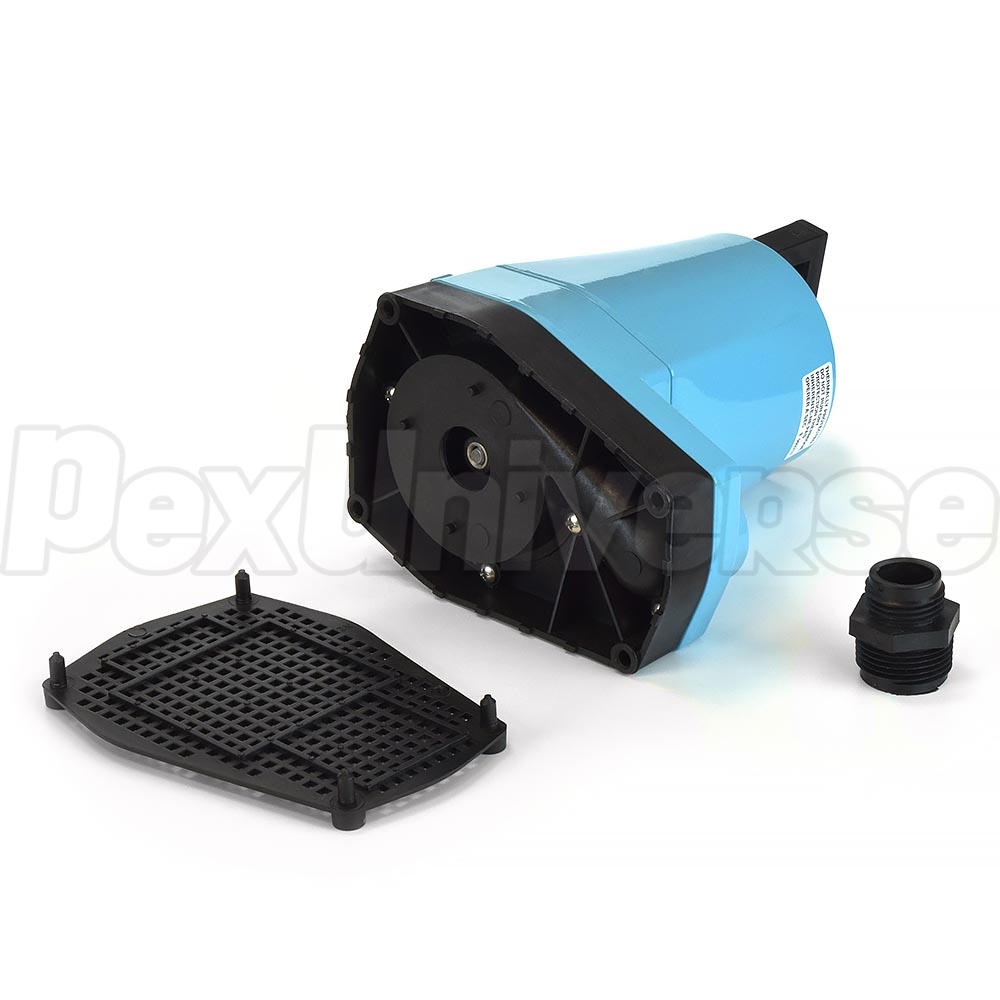

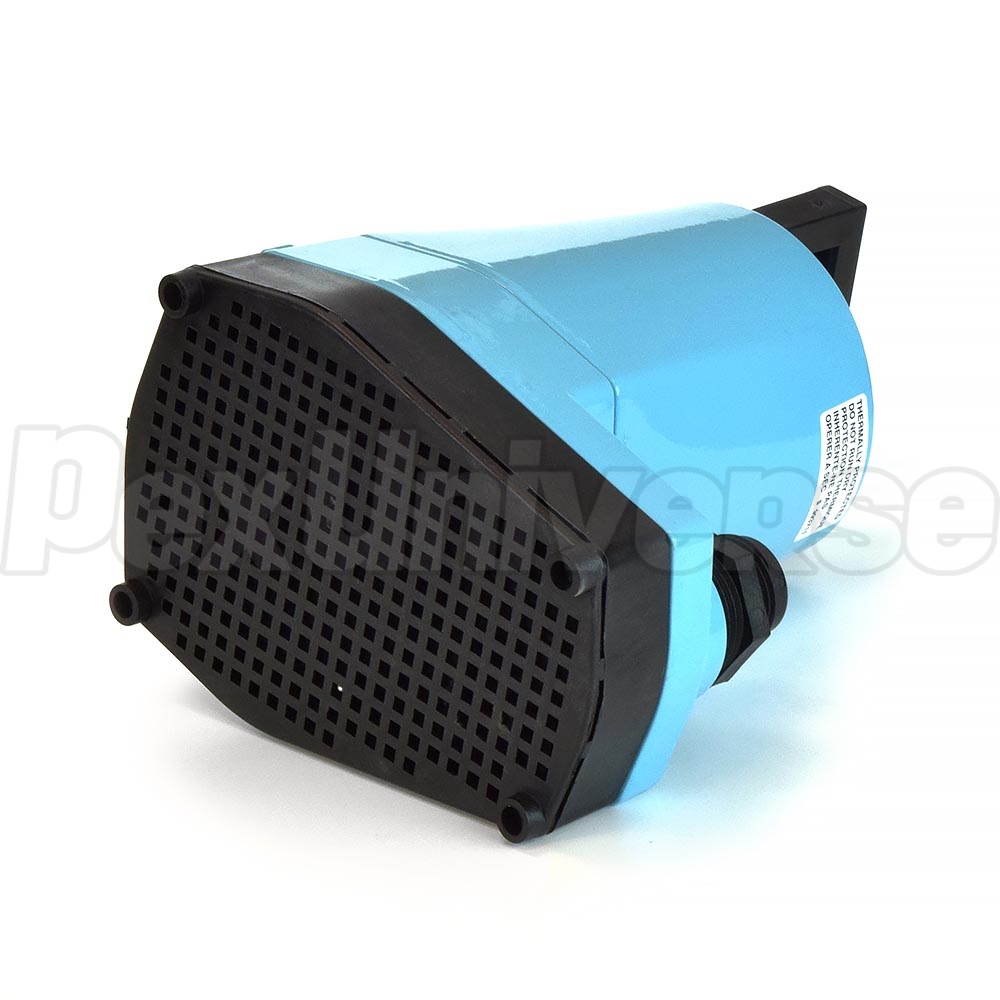

  • Removable inlet screen for easy cleaning
  • Epoxy coated cast aluminum housing
  • Viton shaft seal

Technical Specifications:
  • Model: 5-MSP
  • HorsePower: 1/6HP
  • Max. Flow: 1200 GPH @ 1' of Head

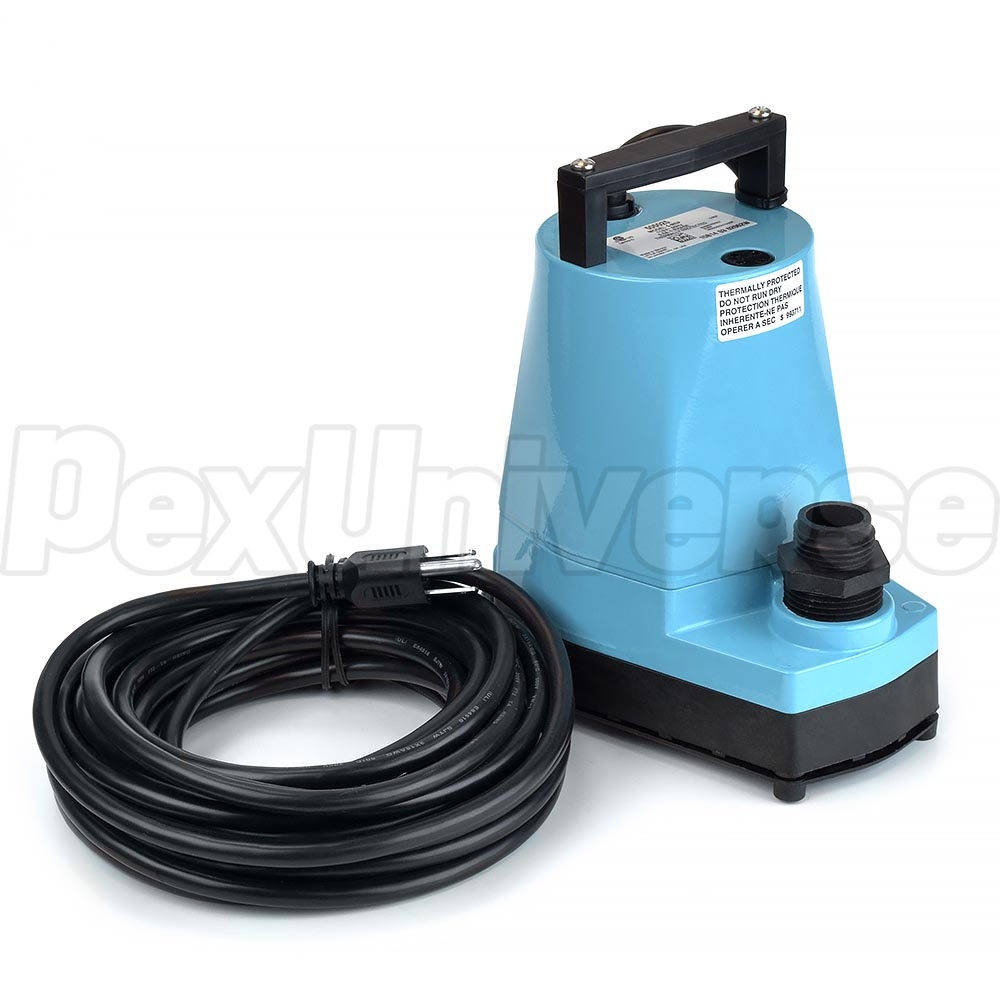

  • Cord Length: 25ft
  • Operation: Manual
  • Shut Off @ 26.3ft of head
  • Voltage: 115V
  • Hertz: 60 Hz
  • Amps: 5A
  • Watts: 380W
  • Weight: 8.75 lbs.
  • Dimensions (H x W x L): 7.75" x 4.31" x 6.12"
  • Certification: UL/CSA

Warranty:
1 year manufacturer's warranty.
