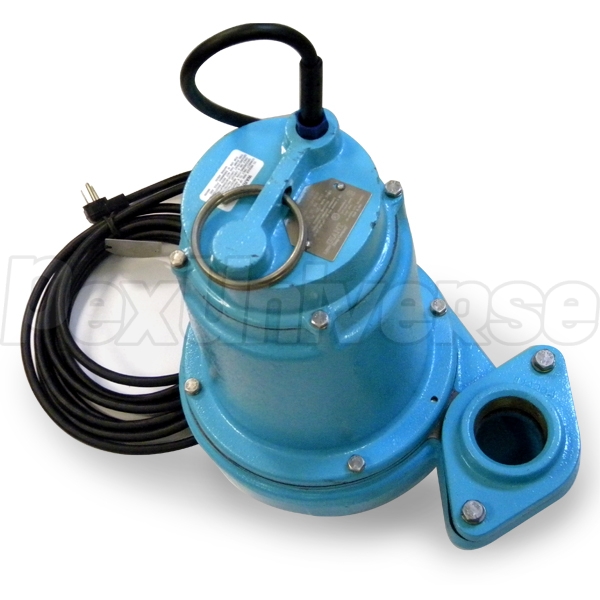

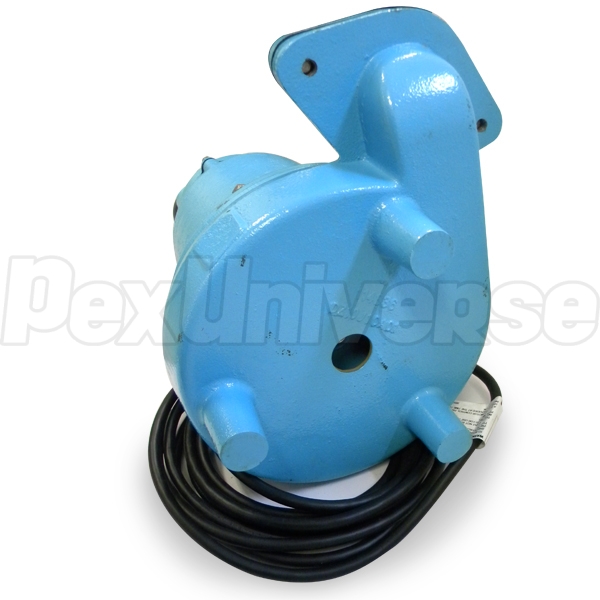

Little Giant 14EH-CIM Effluent Pump 514220 TopLittle Giant 14EH-CIM Effluent Pump 514220 BottomLittle Giant 14EH-CIM Effluent Pump 514220 Box

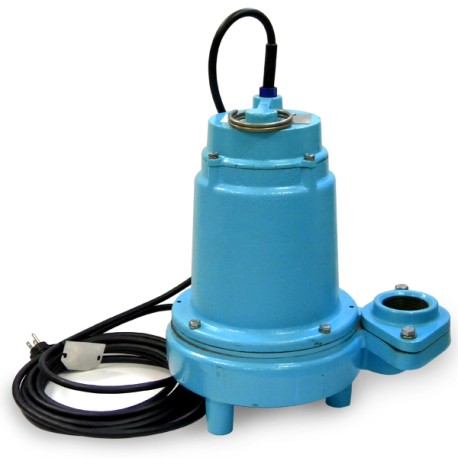

Little Giant 14EH-CIM Effluent Pump 514220

14EH-CIM Manual Effluent Pump w/ 20' cord, 1/2 HP, 115V

Little Giant

Brand: Little Giant

Mfr Part#: 514220

Model: 14EH-CIM

UPC#: 010121142206

Usually ships: within 3-4 business days
Qty Price
$599.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews (1)
  • FAQs

Little Giant 14EH-CIM (514220) is a Manual Submersible Eliminator Effluent Sump Pump - High Head Series, 1/2 HP, 20' heavy duty power cord, 115 Volts, 60 Hz, recommended for use in sumps, basins or lift stations and is suitable for pumping sewage, effluent, wastewater and other non-explosive, non-corrosive liquids with a wide use in residential, commercial, industrial and agricultural applications with light to medium transfer demands.

The 14EH Series dewatering and Effluent pump features a vertical 2" FNPT discharge with head capacity of 50' and ABS base. 14EH-CIM Eliminator Submersible Effluent Pump was specifically engineered to handle liquids and up to 3/4" diameter soft solid waste materials and deals with tough effluent and demanding tasks in wastewater and effluent waste transfer with high efficiency and long term dependability. Little Giant 14EH-CIM has an epoxy coated heavy-duty cast iron housing, volute and impeller, to ensure rust resistance, with all exposed component parts made of corrosion resistant materials to provide a longer service life.

Little Giant 14EH-CIM boasts non-clog Impeller with pressure relief vanes, maximum 140F operating temperature, mechanical seals (stainless steel spring, nitrile parts, carbon and ceramic shaft seal) and 300 Series stainless steel hardware. Oil filled motor housing of 14EH-CIM provides lifetime lubrication and rapid heat dissipation. Little Giant's powerful 1/2 HP, single phase induction 3450 RPM motor with automatic reset thermal overload protection delivers 60 GPM of wastewater at 20' total dynamic head. This newest 14EH-CIM Eliminator Submersible High Head Effluent Pump is an ideal solution for effluent and wastewater removal and handling where such materials must be moved upward from a collection area to sewer or septic lines or drainage areas.


Features:

  • High head, 115 Volts model;
  • Handles liquids and solid waste materials up to 3/4 diameter;
  • 1/2 HP PSC motor with overload protection;
  • Port Size: 2" FNPT discharge w/ 3/4" Solids Handling;
  • Cast iron pump housings with protective epoxy coating for corrosion and rust resistance;
  • Oil-filled motor housings for lifetime lubrication and rapid heat dissipation;
  • Stainless steel screws, bolts and lifting ring;
  • Upper and lower ball bearings;
  • Mechanical seal (stainless steel spring, nitrite parts, carbon and ceramic faces) for long life and reliability;
  • Secondary Exclusion Seal to help protect mechanical seal;
  • High Speed (3450 RPM) 1/2 HP, ball bearing motor and thermal overload protection for high head operation, permanent split capacitor design;
  • Capacitor and power cord connections isolated from oil filled motor housing for ease of field maintenance;
  • Dynamically balanced two-vane non-clogging impeller with pump-out vanes to enhance pumping performance and efficiency;
  • Pressure Switch Setting: Approx. 74 Lbs;
  • UL / CSA listed;

Technical Specifications:

  • Motor: 1/2 HP Permanent, Split Capacitor;
  • Maximum flow rate: 60 GPM @ 20';
  • Maximum Head: 50';
  • Solids handling (dia.): 3/4";
  • Max Liquid Temp: 140F;
  • Discharge: 2" FNPT;
  • Cord Length: 20';
  • Shut Off: 50';
  • Voltage: 115 V;
  • Hertz: 60 Hz;
  • Amps: 12.5 A;
  • Watts: 1450 W;
  • Weight: 82 lbs.;
  • Height: 16.13";
  • Width: 9.9";
  • Length: 14.1";

Warranty:

2 years manufacturers warranty from the date of purchase.
14EH-CIM Manual Effluent Pump w/ 20' cord, 1/2 HP, 115V has an average 5.0 out of 5 rating based on 1 user review.

Little Giant is a monster of a pump
By Verified Buyer (from Minnesota) on 7/15/2015
Outstanding pump. This was a replacement pump for the exact same pump that had run for over 25 years in a hostile environment (100 degrees to -35). New pump is so quite I didn't know it was running until I saw the liquid start to go down. Very impressive pump it moves liquid 45' vertically to a drain field.
