VCMA-15UL Automatic Condensate Pump w/ 6' cord, 1/50 HP, 115V

Little Giant

Brand: Little Giant

Mfr Part#: 554401

Model: VCMA-15UL

UPC#: 010121544017

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$37.95 / each
  • Description
  • Literature
  • Reviews
  • FAQs (1)

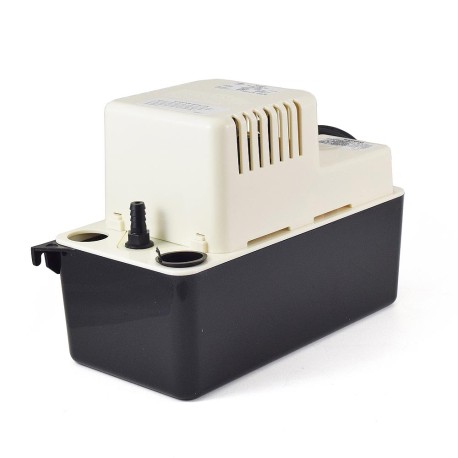

Little Giant VCMA-15UL (554401) 1/50 HP Automatic Condensate Removal Pump is a vertical-type pump with stainless steel motor shaft, 1/2 gallon ABS tank and removable 3/8" O.D.barbed check valve. The Little Giant Condensate Pumps are suitable for high-efficiency gas furnace condensate.



Features:

  • 1/50 HP high performance thermally protected motor;
  • Stainless steel motor shaft;
  • ABS tank, motor cover, and volute;
  • 1/2 gallon leakproof, rustproof, ABS tank with mounting tabs;
  • Removable 3/8" barbed check valve;
  • 6' power cord;
  • 3 inlet drain holes;
  • Thermal overload protection;
  • UL / CSA listed;



Technical Specifications of Little Giant VCMA-15UL:

  • Model Number: VCMA-15UL;
  • Horsepower: 1/50HP;
  • Tank: Medium;
  • Flow: 65 GPH @ 1' of Head;
  • Cord Length: 6';
  • Shut Off: 15';
  • Voltage: 115V;
  • Intermittent Liquid Temp.: up to 120F;
  • Hertz: 60Hz;
  • Amps: 1A;
  • Watts: 60W;
  • Weight: 4.4 lbs;
  • Height: 7";
  • Widht: 5";
  • Length: 11";



Head (ft) Flow (GPH) Head (m) Flow (LPH)
1 65 0.3 246.1
5 50 1.5 189.3
9 30 2.7 113.6





Manufacturer's warranty:

2 years from the date of installation.

No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
I need a micro switch for pump #554401
Read 1 answer
Unfortunately, we do not stock this switch, but the part number you're probably looking for is 950337.
Answered on 7/16/2012 by PexUniverse Customer Service
