Thermostatic Manifold Actuator valve for SSM and BSM

24V Thermostatic Actuator (Zone Valve) for SSM & BSM Manifolds, 2-wire

Brand: Rifeng

Mfr Part#: SSM101

Availability: In Stock
Usually ships: within 1 business day
Qty Price
x1
$34.95 / each
x10 $295.00 / box & Free Shipping
(10 x $29.50 / each)
  • Description
  • Literature
  • Reviews (4)
  • FAQs (6)

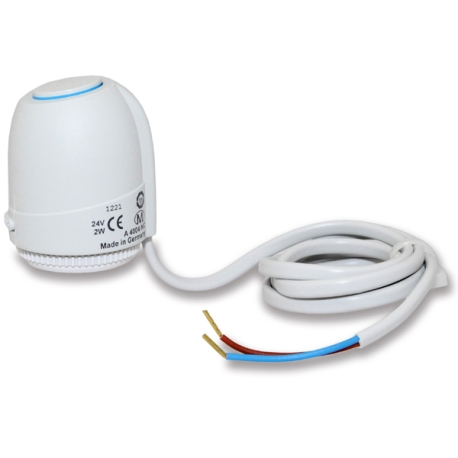

Thermostatic Manifold Actuator valve for SSM series stainless steel manifolds. 24V, 0.12A, 2-wire.

Operating temperature (max): 140F

Operating temperature (min): 32F

Features easy-to-install snap action mechanism.

Comes with a manifold seat and 40" long wire.



This actuator is designed to replace manual balancing valve on SSM or BSM series manifold to provide electronic control of an individual zone (branch). Several actuators can be installed to achieve full control of the manifold.

Compatible with Taco ZVC controls and similar.



Installation:

1. Remove manual balancing valve by unscrewing it counter-clockwise (viewed from top).

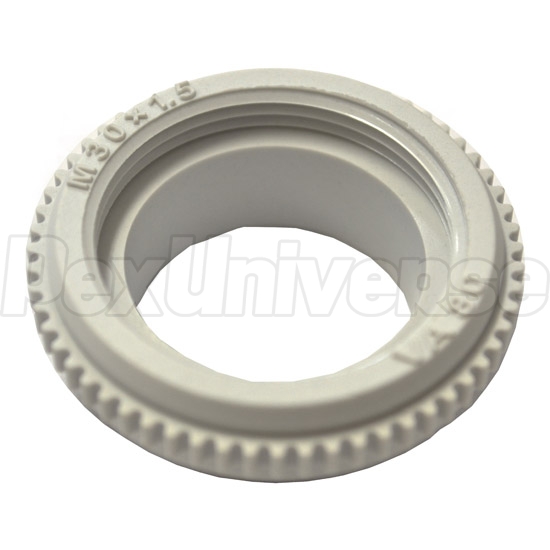

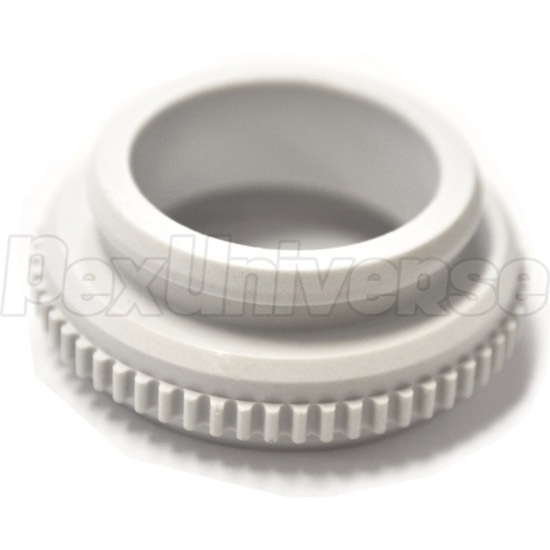

2. Replace it with a white O-ring included in the box with actuator.

3. Snap on the actuator. Wiring can be forward-facing or backward-facing for installation convenience.

4. Connect actuator wires to the zone valve outlets of the Taco ZVC panel (refer to ZVC manual for instructions).

24V Thermostatic Actuator (Zone Valve) for SSM & BSM Manifolds, 2-wire has an average 4.8 out of 5 rating based on 4 user reviews.
3 of 3 people found this review helpful.

Works great
By Ben (from Tecumseh, MI) on 11/8/2015
I bought this actuator to connect to my zone control. The connection is the easy part, but it took me a while to understand how it worked as the directions aren't the clearest. Just a tip: the power has to be on for 6min in order for the actuator to get out of safety mode. Once this is done and the power is turned off ( stop calling for heat) it slowly and I mean slowly starts to close the zone. Other then the horrible directions, this seems to be working just as it's intended and plan to purchase a few more
Was this review helpful?  Yes / No

Made in GERMANY
By Momchil, Lic Plumber (from Sacramento,CA) on 8/16/2016
I saw in other comments how it works. It has some kind of jelly inside and really small heating element-I believe 1 or 2 Watts. It takes few min, but thats of- no hydrolic shock on system and impressive efficiency. I have it for 8 months now and no issues. When i got this ones (6), they did not have the 4 wire ones. When designing the system, if you use 2 wire ones,make sure to get differential bypass valve and put jumper on end switch in Taco ZVC
Was this review helpful?  Yes / No

Good but Odd Operation
By Reviewer (from Michigan) on 1/24/2016
Trying to find the manufacturer of this item is almost impossible. Too many claim the same item with different names on it, including Asia and Italy companies. Therefore, trying to find detailed operational characteristics was impossible.Ben's information below was highly valuable and accurate.
Was this review helpful?  Yes / No
0 of 1 people found this review helpful.

Made in Germany
By Mich (from Los Angeles) on 11/26/2015
Those one are less expensive than American ones . Made in Germany, look really nice and we'll build. Let's see how will work over time
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Do they have a four wire equivalent for a SSM103 manifold? A two wire would not work with my TACO SR506 relay that is already installed in the system.
Read 1 answer
SSM101 is a 2-wire actuator without an end switch. SSM201 is a 4-wire actuator with an end switch. BOTH work with Taco SR switching relays, including SR506. The only difference is that you would not have an end switch on the SSM101 and would normally have to install a bypass such as Taco 3196 to bypass the water pumped bu the circulator until the actuator is fully opened (~3-4 minutes). On the SSM201, the 4-wire design delays start-up of the circulator and therefore eliminates the need for creating a bypass.
Answered on 10/17/2016 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
Can these be installed in an upside down position in a situation where the Pex radiant loops are coming down from above and the supply and return manifold rails are mounted horizontally?
Read 1 answer
1 of 1 people found this answer helpful.
These can be installed only in an upright position (with manifold connection outlet at the bottom).
Answered on 3/18/2015 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
After you replace the manual balancing valves on the Everhot manifolds with actuators, how do you balance the circuits. One shorter circuit that needs to be throttled down, for example?
Read 1 answer
2 of 2 people found this answer helpful.
Flow meters act as secondary valves and can be screwed in (clockwise when seen from top) to reduce the flow through a particular branch.
Answered on 3/27/2013 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
Do you need a Actuator for each radiant loop or can they control more than 1 loop?
Read 1 answer
3 of 3 people found this answer helpful.
A single actuator can control a single loop (branch) of the manifold. When zoning a radiant heating manifold, multiple actuators can also be wired to the same zone on the zone control panel (such as Taco ZVC series) which is controlled by a single thermostat.
Answered on 10/18/2012 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
When placed on a SSM manifold, does the actuator fully open the zone it's instllaed on or can you adj the flow?
Read 1 answer
The actuator can only open or close a given manifold branch. It does not regulate the water flow. The actuator is normally controlled by an external module such as Taco ZVC series, which is in turn controlled by a thermostat.
Answered on 10/18/2012 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
How are these hooked in system and what other connections do yoiu need?
Read 1 answer
2 of 2 people found this answer helpful.
These actuators are designed for installation with Everhot SSM or BSM series radiant heating manifolds and replace manual balancing valves (white for SSM and blue for BSM). Initially, the manual balancing valve is removed from the manifold by unscrewing the base counter-clockwise. Then, the plastic O-ring supplied with the actuator is screwed into place of the manual balancing valve. Finally, the actuator is snapped over the O-ring. The wiring is typically connected to a zone valve control, such as Taco ZVC.
Answered on 9/11/2012 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
