Taco 006-ST4 Circulator Pump
Click on image to enlarge

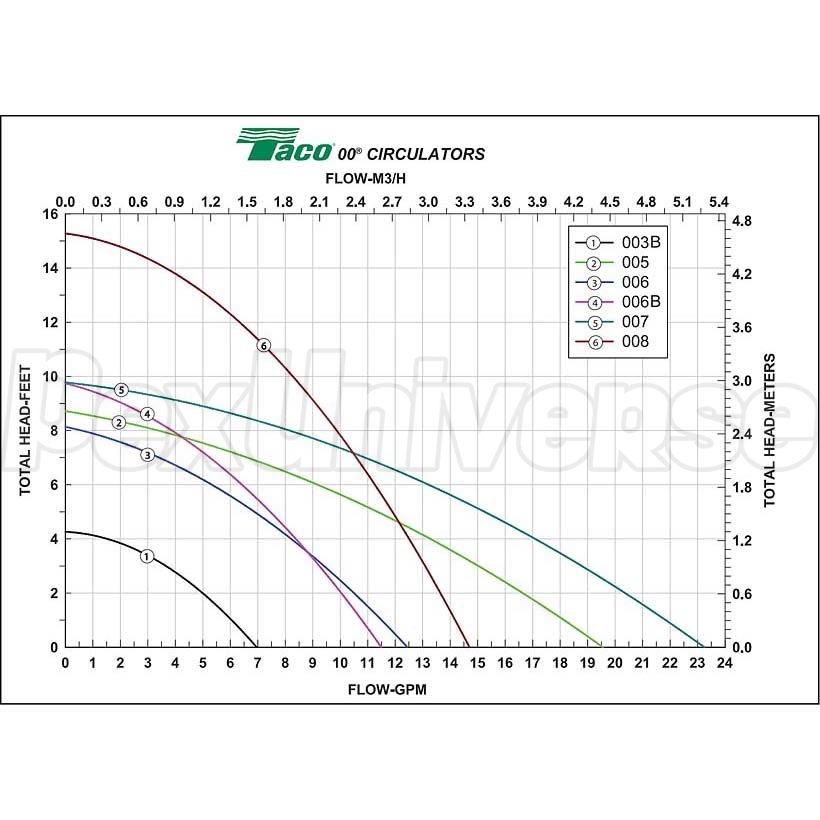

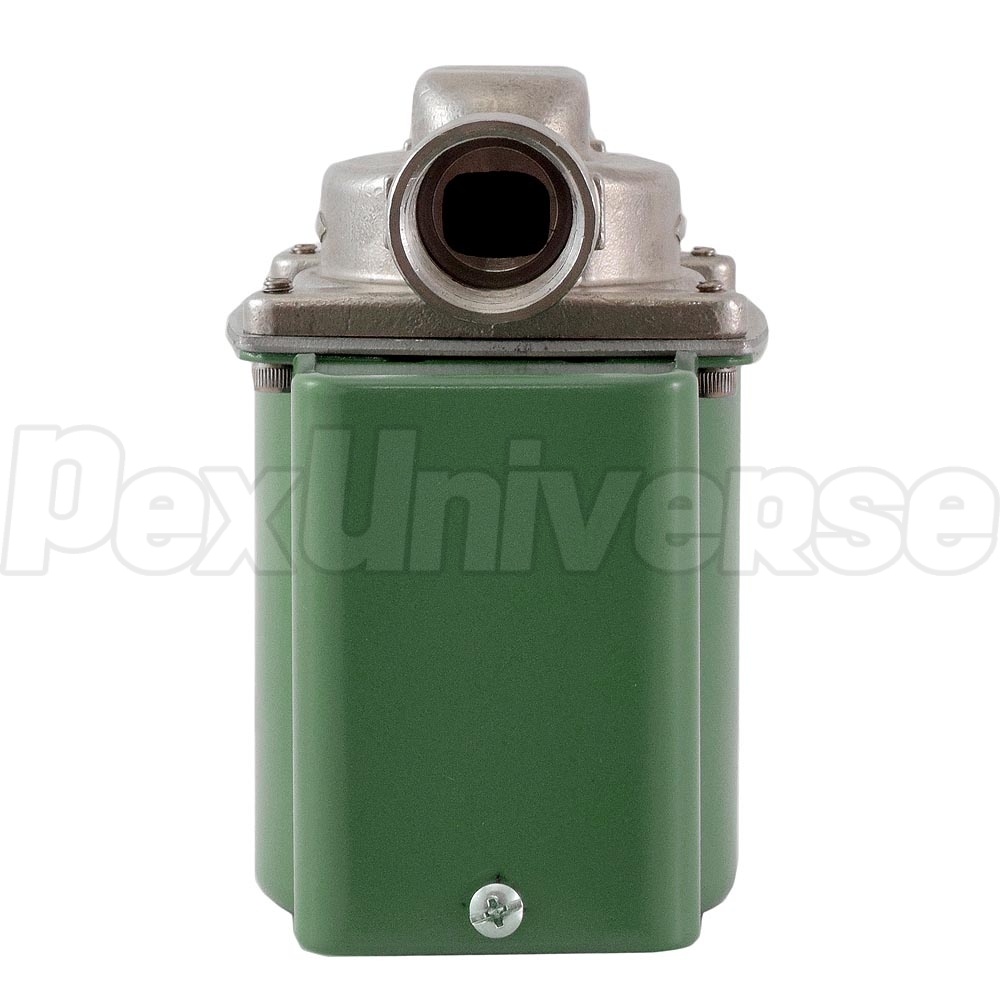

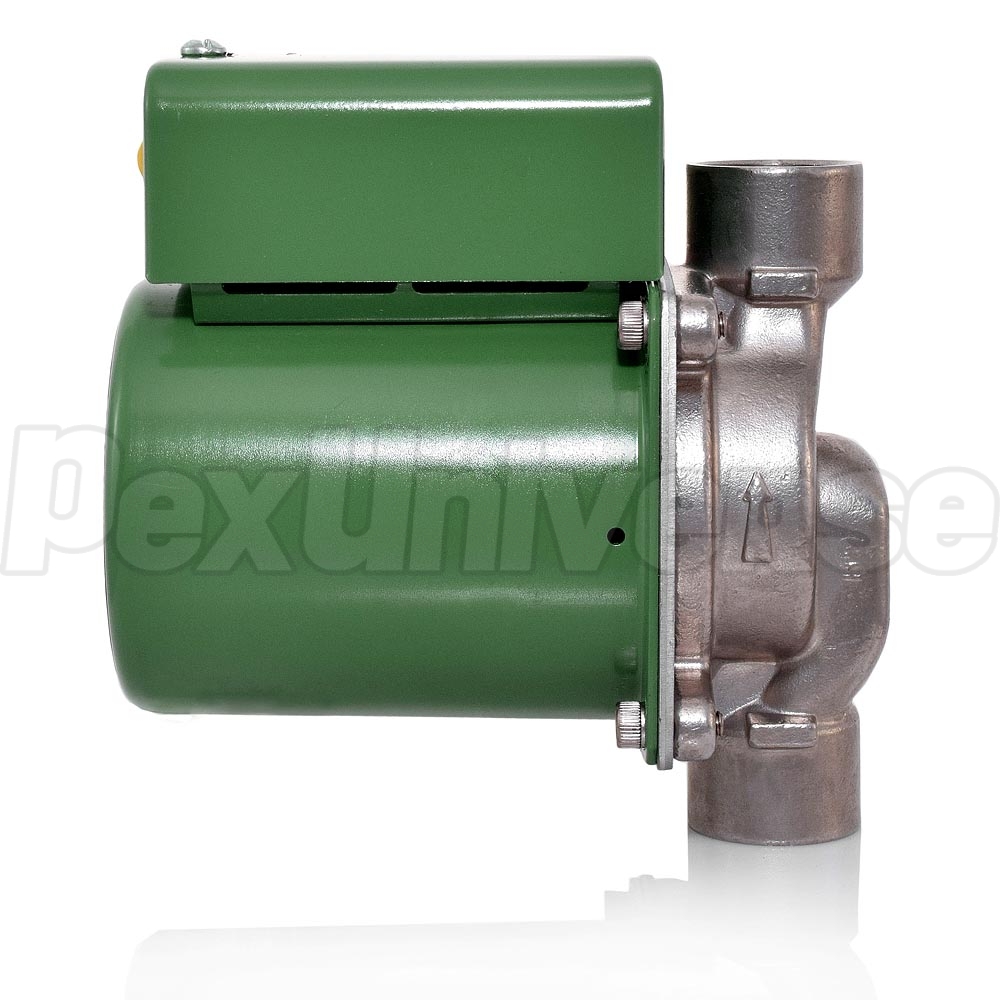

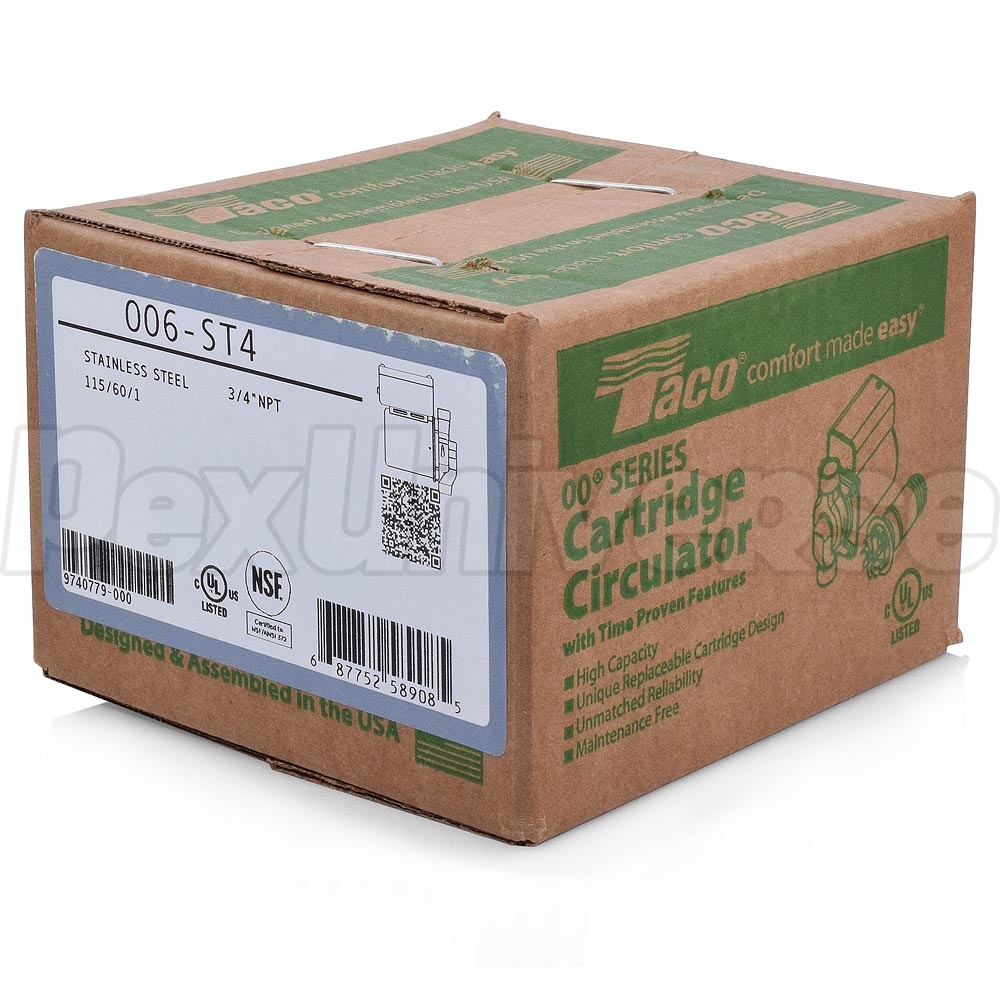

Taco 006-ST4 Circulator PumpTaco 006-ST4 Circulator Pump Side ViewTaco 006-ST4 Circulator Pump in BoxTaco 006-ST4 Circulator Pump Curves

006 Stainless Steel Circulator Pump, 3/4" NPT, 1/40 HP, 115V

Taco

Brand: Taco

Mfr Part#: 006-ST4

UPC#: 687752589085


Availability: In Stock
Usually ships: within 1 business day
Qty Price
$162.95 / each
Add to cart
McAfee SECURE sites help keep you safe from identity theft, credit card fraud, spyware, spam, viruses and online scams
  • Description
  • Literature
  • Reviews
  • FAQs

Taco 006-ST4 Stainless Steel Circulator Pump is designed for circulating hot or chilled fresh water in open or closed loop applications. Common uses include hydronic heating, chilled water cooling, and domestic hot water systems, hydro-air heating/cooling, heat recovery units, water source heat pumps, drain down open loop solar systems and potable water applications.
Stainless Steel Taco 006-ST4 Circulator Pump features a unique replaceable cartridge which allows for easy service, instead of replacing the entire circulator. Taco 006-ST4 Circulator pump is compact, direct-drive, features low power consumption and is ideal for high-efficiency jobs.



Taco 006-ST4 replaces 006-BT4 model.



Applications:

Domestic Hot Water Recirculation;

Hydronic Heating / Cooling;

Radiant Heating;

Heat Recovery Units,

Solar;

And many others;



Performance Data:

Flow Range: 0 – 10 GPM
Head Range: 0 – 9 Feet
Minimum Fluid Temperature: 40˚F (4˚C)
Maximum Fluid Temperature: 220°F (104˚C)
Maximum Working Pressure: 125 psi
Connection Sizes: 3/4 NPT threaded



Electrical Data:

Voltage: 115V;

Hertz: 60Hz;

Phase: 1;

Amps: 0.52 Amps;

HP: 1/40HP;

006 Stainless Steel Circulator Pump, 3/4" NPT, 1/40 HP, 115V has an average 5.0 out of 5 rating based on 6 user reviews.

Very nice!
By tllong2 (from PA, US) on 11/12/2012
I've had this pump for about a week in a five zone heating system. It's very quiet & seems to be well built. The pump does have a horizontal installation requirement unless the system is being operated at over 20 PSI but this wasn't an issue for me.

Taco circulator
By Jack (from CT) on 11/11/2012
Super fast shipping! Perfect replacement for my failed original domestic hot water circulator.

Excellent product for my purpose.
By Bob (from Blairsville, GA) on 12/10/2011
Installed this pump on a CPVC convection domestic hot water return line. No more waiting for hot water to get to my shower. Sits on the floor next to the hot water heater. Installed per the Taco drawing for single level house.

Great product
By servant joe (from MA) on 11/1/2011
"Used to circulate water for a hot rod in a wood burning stove. Goes from stove to a hot water heater to heat water. Very fast delivery! Thank you"

Great pump
By Toro (from NY) on 8/10/2011
Great pump. Thanks

Perfect fit and perfect operation
By Dave the DIY'er (from Queen Creek, AZ) on 6/20/2011
I needed a Circulator pump for my Solar water heater project and after some research, the pump met all my expectations, especially price. The pump is so quiet I wasn't sure it was running, but it was and is doing a great job. Installation instructions were clear and easy, no special tools needed, great pump.
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
So you can use this pump in the Horizontal Position with 20 psi and above I will be using this pump for Circulating hot water thought coil in wood stove to Hot water tank The pump will be used in the well pressure range. Horizontal Position Will Be OK ?
Read 1 answer
Yes, as long as the pressure is over 20 psi and the motor is on top.
Answered on 12/27/2013 by PexUniverse Customer Service
what is the minimum inlet pressure or Head in an open loop system at 190F
Read 1 answer
Circulator pumps do not require minimum inlet pressure to operate. If used in domestic hot water recirculation applications, the inlet pressure in the system is the same as municipal water pressure or, if using well water system is within the pressure switch settings of the well pump.
Answered on 12/12/2012 by PexUniverse Customer Service
