1-1/4" Cast Iron Air Scoop

Taco

Brand: Taco

Mfr Part#: 432-6

UPC#: 687752023282

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$18.65 / each
  • Description
  • Literature
  • Reviews
  • FAQs (1)

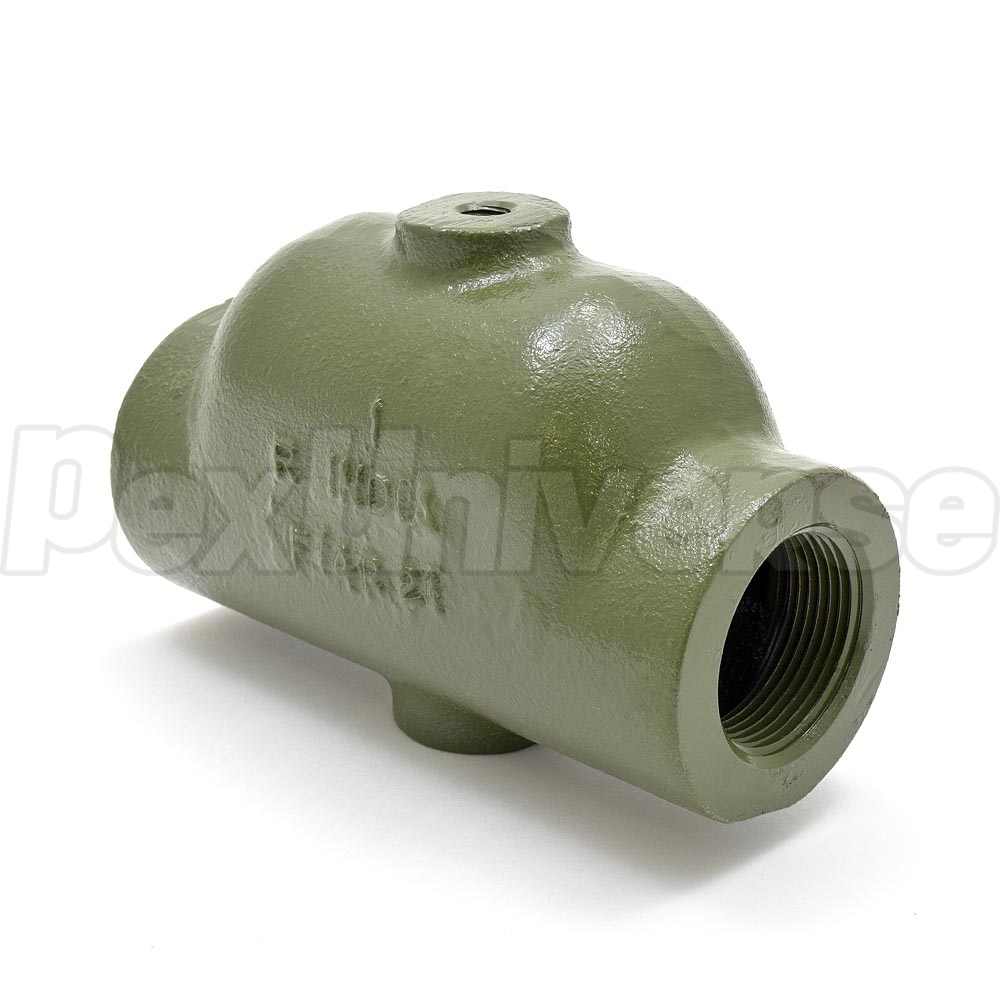

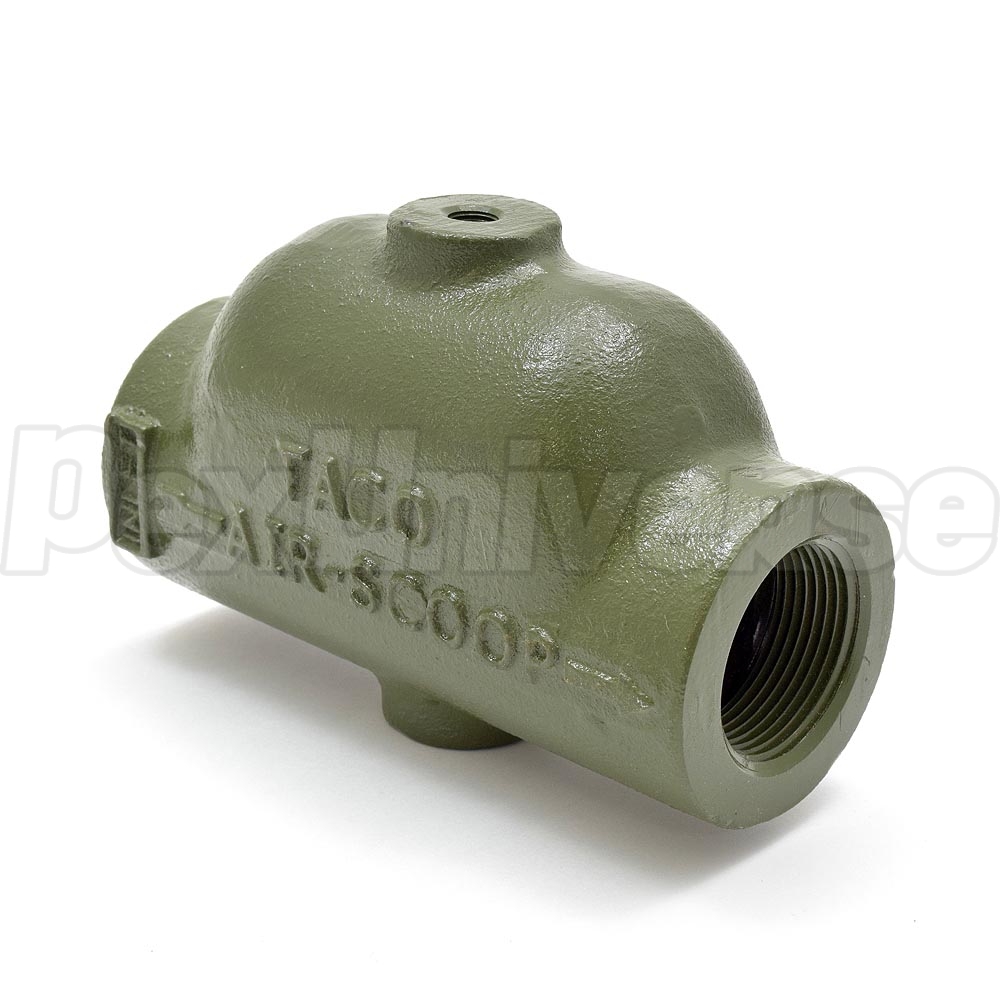

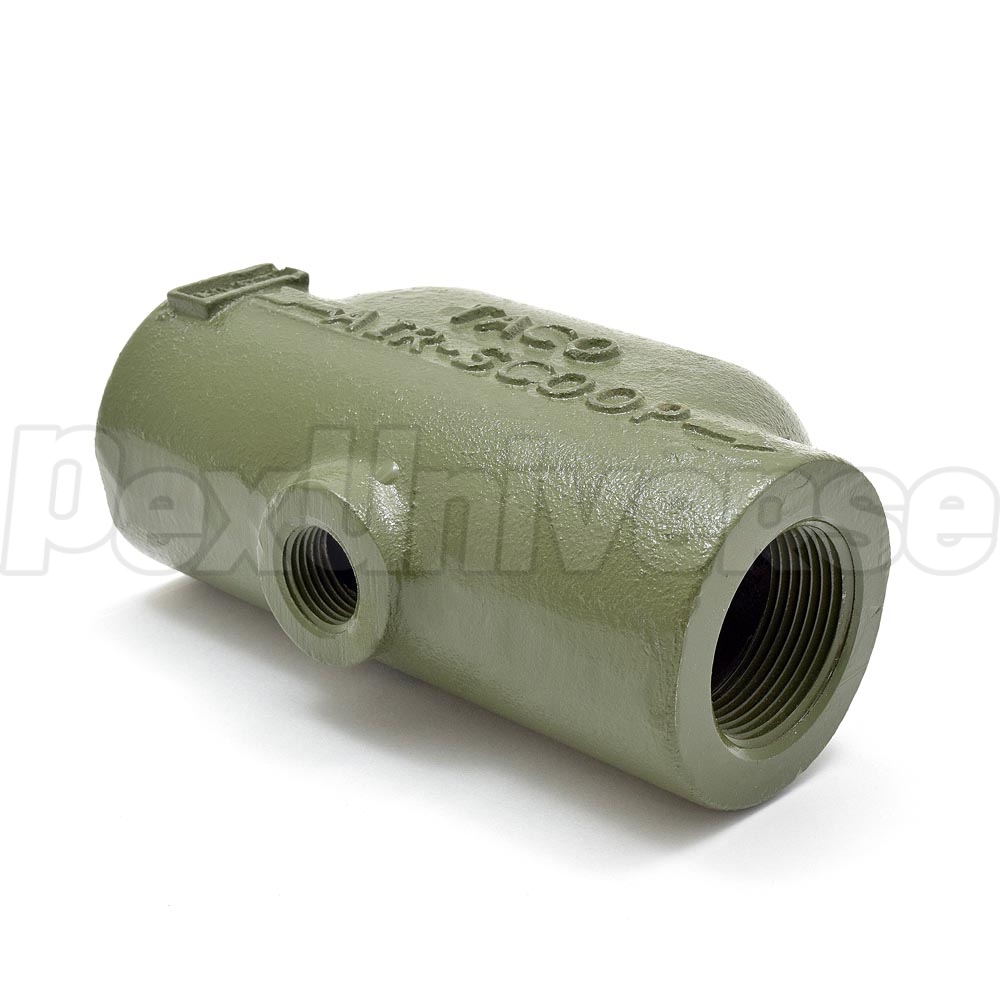

Taco Air Scoop is designed to slow the water velocity to separate the air from solution. The unit is manufactured from cast iron and features equal threaded inlets on both sides. Top of the air scoop features a 1/8" NPT outlet and allows for connection of a regular air vent (such as Taco Hy-Vent part# 400-4). Bottom of the air scoop has a 1/2" NPT threaded outlet, which allows for connecting a plain steel diaphragm expansion tank.


Features:

  • One Piece Cast Iron Construction;
  • Engineered Baffle to Separate Air from Water;
  • Never Requires any Servicing;

Technical Specifications:

  • System Connections: 1-1/4" Female Threaded;
  • Bottom Tapping (for expansion tank): 1/2" Female Threaded;
  • Top Tapping (for air vent): 1/8" Female Threaded;
  • Maximum Operating Pressure: 125 psi;
  • Maximum Operating Temperature: 300°F;
  • Media: Water or Water/Glycol Mix;
  • Recommended Flow Rate: 4 ft/sec;
  • Maximum Flow Rate: 8 ft/sec;
  • Dimensions (W x H): 6" x 4";
  • Cv: 53.5;
  • Weight: 4.0 lbs;

Warranty:

1 year manufacturers warranty.
No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
Does this act as a back flow preventer or check valve
Read 1 answer
No. This air scoop only expands the line so that the water flow can slow down and the air bubbles can rise to the top of the scoop and be vented out through the automatic air vent, such as a Taco 400-4.
Answered on 1/31/2013 by PexUniverse Customer Service
