6-CIA Automatic Sump Pump w/ Diaphragm Switch and 25' cord, 1/3 HP, 115V

Little Giant

Brand: Little Giant

Mfr Part#: 506125

Model: 6-CIA

UPC#: 010121061255

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$134.95 / each & Free Shipping
  • Description
  • Literature
  • Reviews
  • FAQs (1)

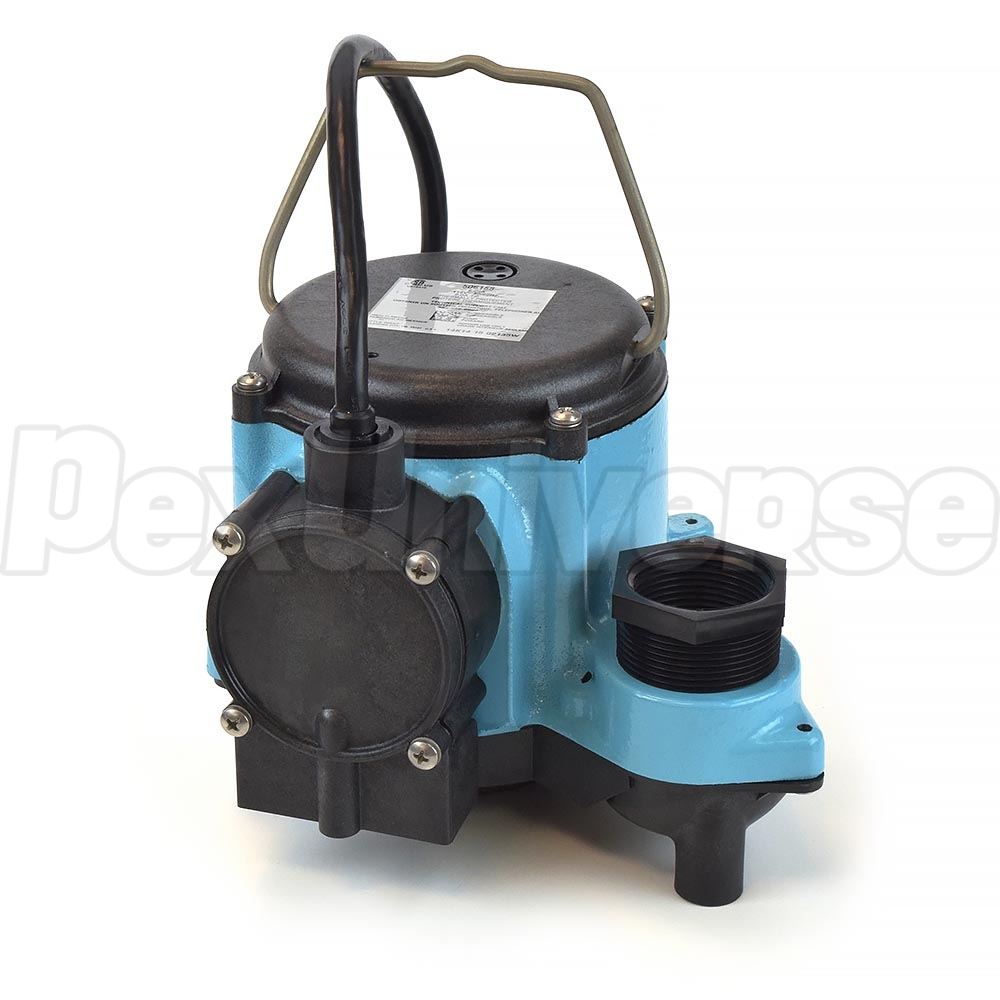

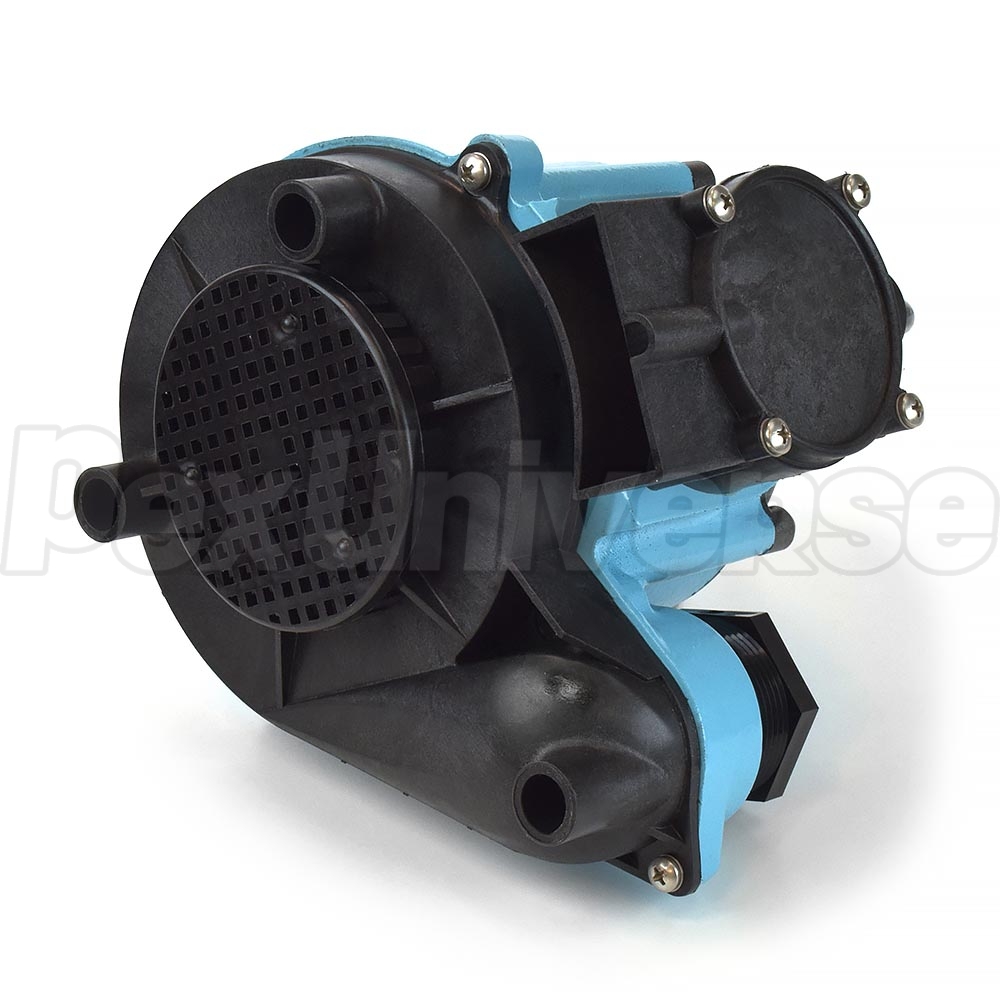

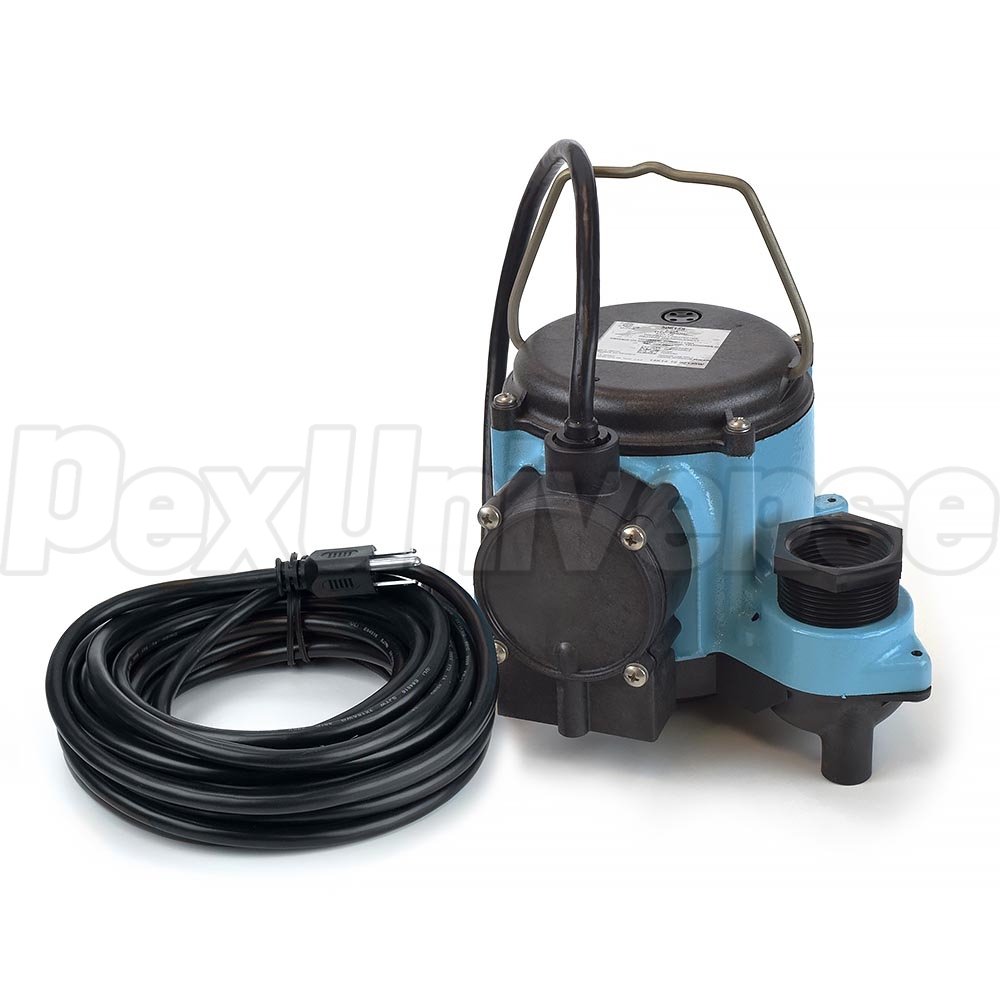

Little Giant 6-CIA (506125) is a powerful 1/3HP Automatic Submersible Sump Pump (Big John series) with a 25ft cord and a pressure switch which starts the pump at water levels of 7" to 10" and shuts off at 1" to 4" level.

Little Giant 6-CIA sump pump is designed for extended or continuous use in moving large volumes of water in residential and commercial applications. 6-CIA series sump pumps feature a 1-1/2" FNPT discharge with a maximum lift of 18ft of head, a polycarbonate cover and a polypropylene volute/base, as well as cast iron housing, stainless steel components for enhanced corrosion resistance and bult-in thermal overload protection.

Little Giant 6-CIA sump pumps are well suited for dewatering flooded basements as well as flood prevention and other liquid tranfer applications.


Little Giant 6-CIA (506125) Sump Pump Features:

  • 1/3 HP shaded pole motor with overload protection;
  • Designed for continuous duty;
  • Epoxy coated cast iron housing;
  • Inlet is 1-1/2" FNPT, with optional reducer to 1-1/4" FNPT (included);
  • Carbon/ceramic shaft seal;
  • Upper and lower sintered sleeve bearings;
  • UL / CSA listed;


Little Giant 6-CIA (506125) Sump Pump Technical Specifications:

  • Model: 6-CIA;
  • HorsePower: 1/3 HP;
  • Max. Flow: 46 GPM @ 5ft of Head pressure drop;
  • Cord Length: 25ft;
  • Shut Off @ 18ft of head;
  • Voltage: 115V;
  • Hertz: 50/60 Hz;
  • Amps: 9A;
  • Watts: 720W;
  • Weight: 18.5 lbs;
  • Dimensions (H x W x L): 6" x 8.5" x 9.5";
  • Certification: UL/CSA;


Head (ft) Flow (GPM) Head (m) Flow (LPM)
5 46 1.5 174.1
10 29 3.0 109.8
15 12.5 4.6 47.3



2 years manufacturer's warranty from the date of installation.

No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
How do you clean the pump?
Read 1 answer
A typical cleaning involves rinsing the inlet screen with water. See installation manual for complete instructions.
Answered on 9/4/2012 by PexUniverse Customer Service
