2-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters
Mfr Part#: BSM002
1/2" PEX adapters are included by default. For other size adapters (free upgrade) make a note at checkout.

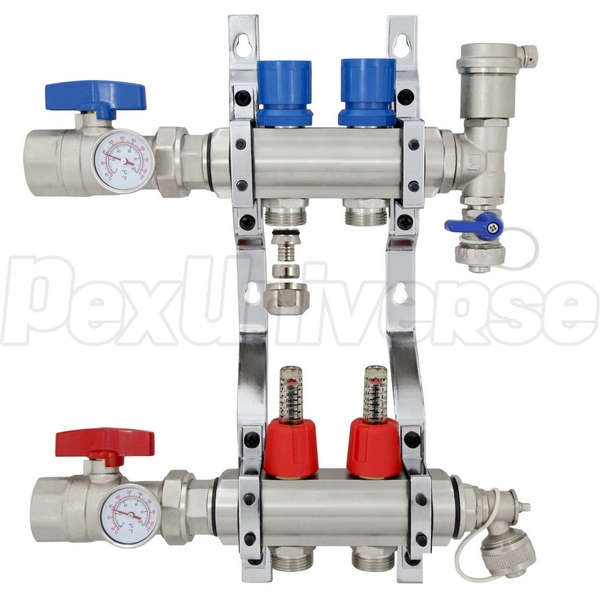

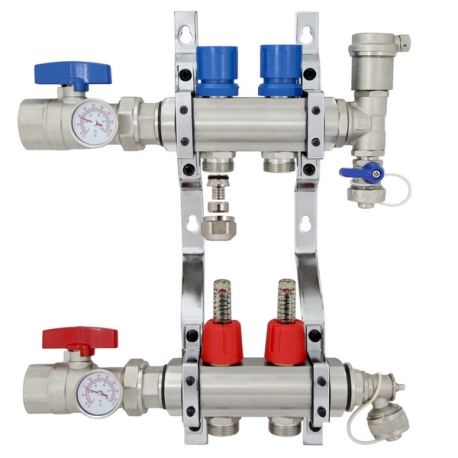

2-branch Deluxe Radiant Manifold Set. Made from brass with nickel plated finish. Pre-assembled and includes all components shown on the picture.
The following is included in every set:

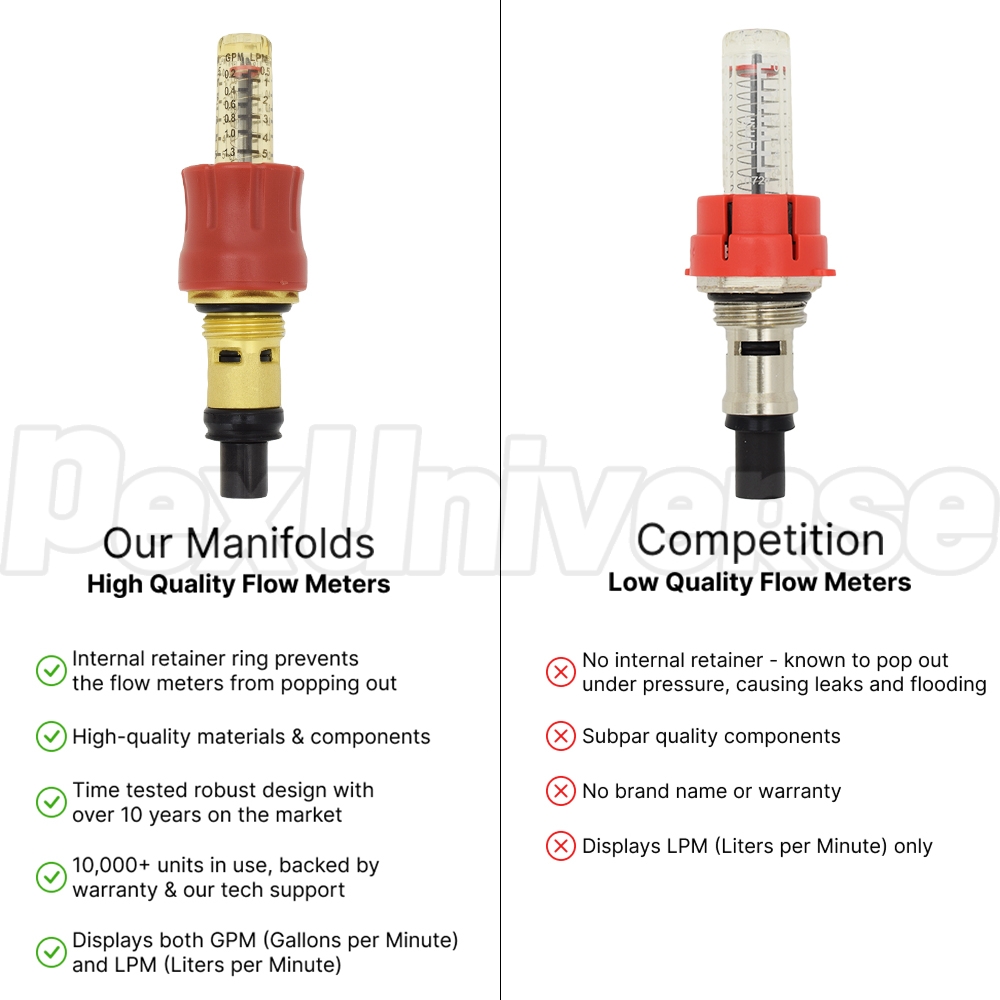

(1) Supply side radiant manifold w/ (2) adjustable flow indicators and (2) outlets for PEX tubing.
(1) Return side radiant manifold w/ (2) balancing valves and (2) outlets for PEX tubing.
(2) 1" threaded shut-off ball valves (1/4-turn) - one for each manifold (blue handle for return manifold and red handle for supply).
(2) Temperature gauges on both manifolds to monitor supply and return water temperatures.

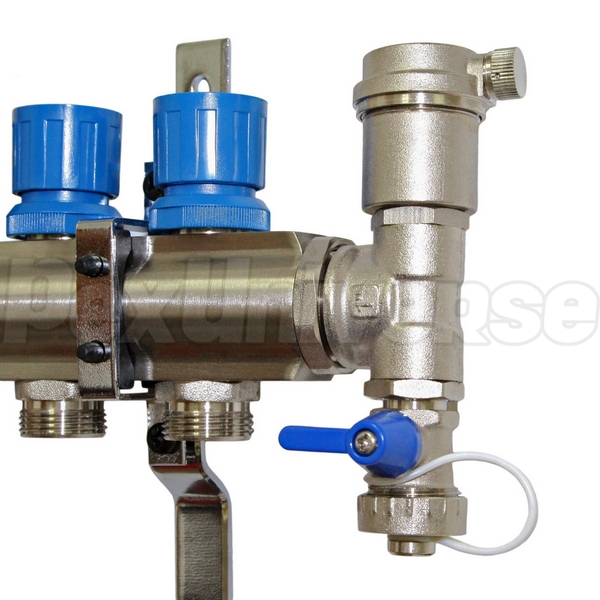

(2) Float-type air vents to eliminate air from the system - both on supply and return side (air vent caps included for pressure testing purposes).
(2) Drain/fill valves with 3/4" garden hose (drain hose) connection and a cap.

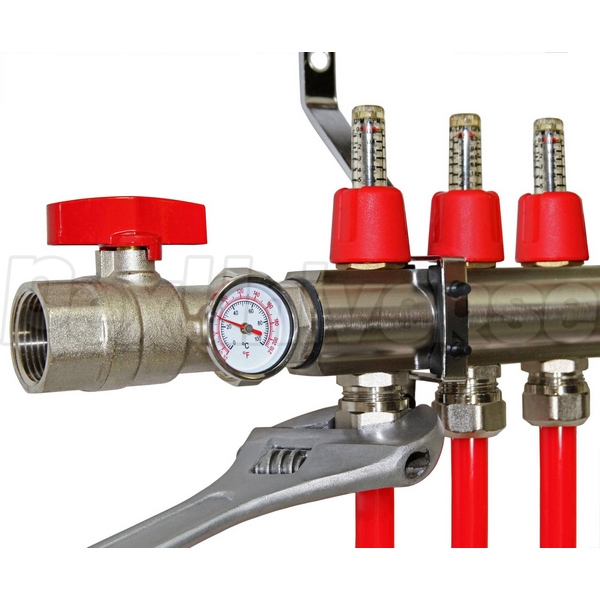

(4) Compression adapters for 1/2" PEX tubing (no PEX tools required to connect tubing to the manifold).
(2) Mounting brackets.
Technical specifications & compatibility:
Total number of PEX outlets: 4;
Distance OC (On Center) between PEX outlets: 2";
Overall height when installed: 14.5"
Overall width when installed (with shut-off valves): 10.75"
Distance between supply and return manifolds: 8.25" OC.
Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)
Other suggested components:
To pressure test the radiant heat manifolds, use a Pressure Test Kit (SKU# TESTKIT).
