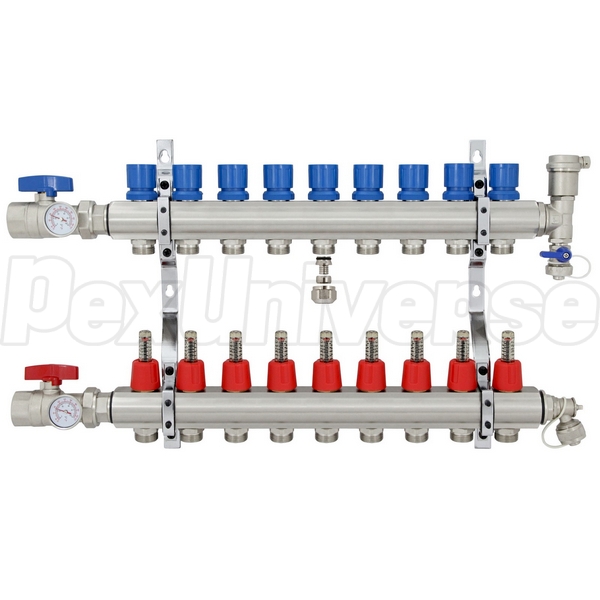

9-branch Brass Manifold Set for Radiant Heating

9-branch Brass Radiant Heat Manifold Set w/ 1/2" PEX adapters

Brand: Rifeng

Mfr Part#: BSM009

Availability: In Stock
Usually ships: Today, if ordered by 3pm
Qty Price
$262.95 / each & Free Shipping
  • Description
  • Reviews
  • FAQs (1)

1/2" PEX adapters are included by default. For other size adapters (free upgrade) make a note at checkout.



9-branch Deluxe Radiant Manifold Set. Brass body and components with nickel plated finish. Comes pre-assembled.



The following is included in every manifold set:

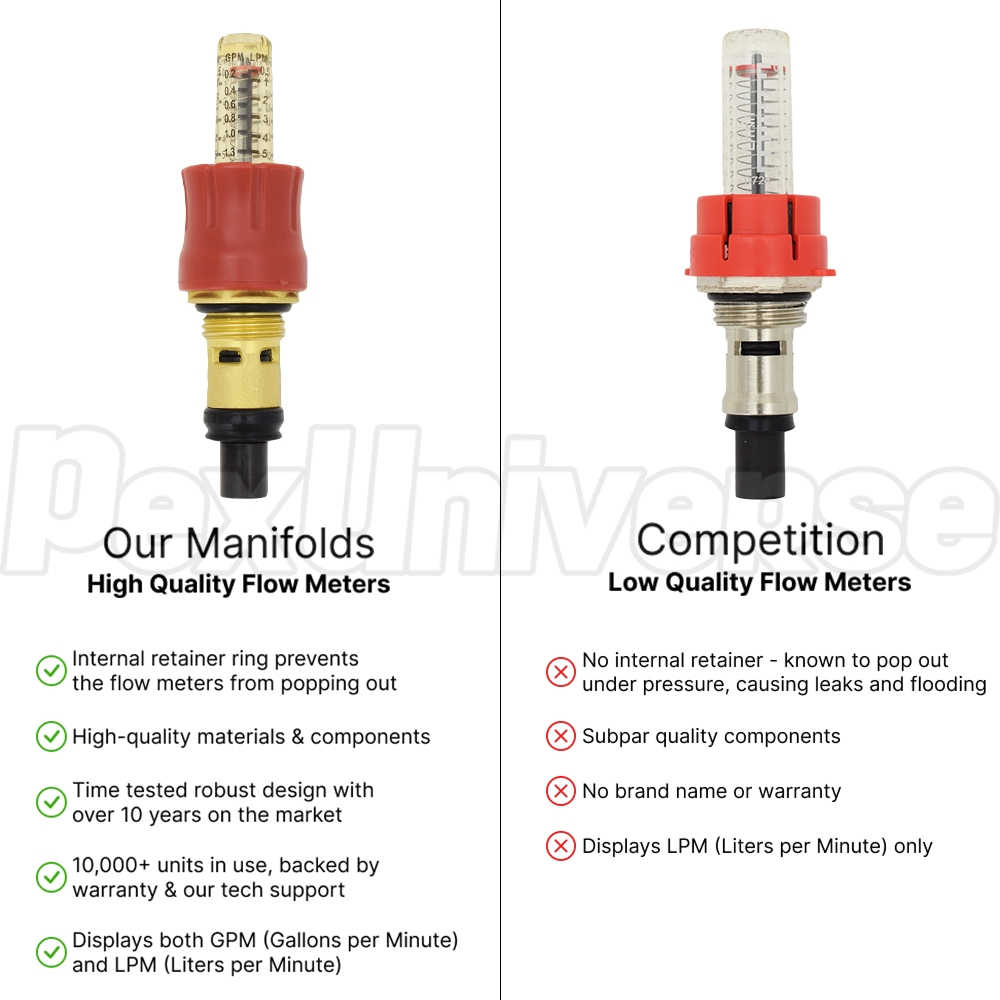

(1) Supply side radiant manifold w/ (9) flow indicators and (9) outlets for PEX tubing.



(1) Return side radiant manifold w/ (9) manual balancing valves and (9) outlets for PEX tubing.



(2) 1" threaded shut off valves w/ 1/4-turn handles - one for supply and one for return manifold (red & blue).



(2) Temperature gauges - one for supply and one for return manifold to monitor supply and return water temperatures.



(2) Automatic, float-type air vents to eliminate air from the system - on both supply and return manifolds (air vent caps included for pressure testing purposes).



(2) All-in-one drain & fill valves with 3/4" garden hose (drain hose) connection and a cap - on each manifold.



(18) Compression adapters for 1/2" PEX tubing - included, no purchase necessary. Adapters of other sizes (3/8", 5/8") can be purchased separately.



(2) Wall mounting brackets.



Technical specifications & compatibility:

Total number of PEX outlets: 18;

Distance OC (On Center) between PEX outlets: 2";

Overall height when installed: 14.5"

Overall width when installed: 24.75"

Distance between supply and return manifolds (on center): 8.25"

Compatible with all types and brands of PEX tubing (Bow, Viega, Watts, Zurn, Everhot, Nibco, etc.)



Other suggested components:

For pressure testing purposes, use a Pressure Test Kit (SKU# TESTKIT)

No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
on the supply side can the valve assembly and the fill assembly be swapped to opposite ends of the manifold? would make my install easier.
Read 1 answer
Yes, these parts are interchangeable.
Answered on 4/14/2016 by PexUniverse Customer Service
