8-port Copper Manifold with 1/2" PEX Valves, 1" Sweat, Closed, Left-Hand

Sioux Chief

Brand: Sioux Chief

Mfr Part#: 672XV0810L

UPC#: 739236441737

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$84.95 / each
  • Description
  • Literature
  • Reviews (4)
  • FAQs (2)

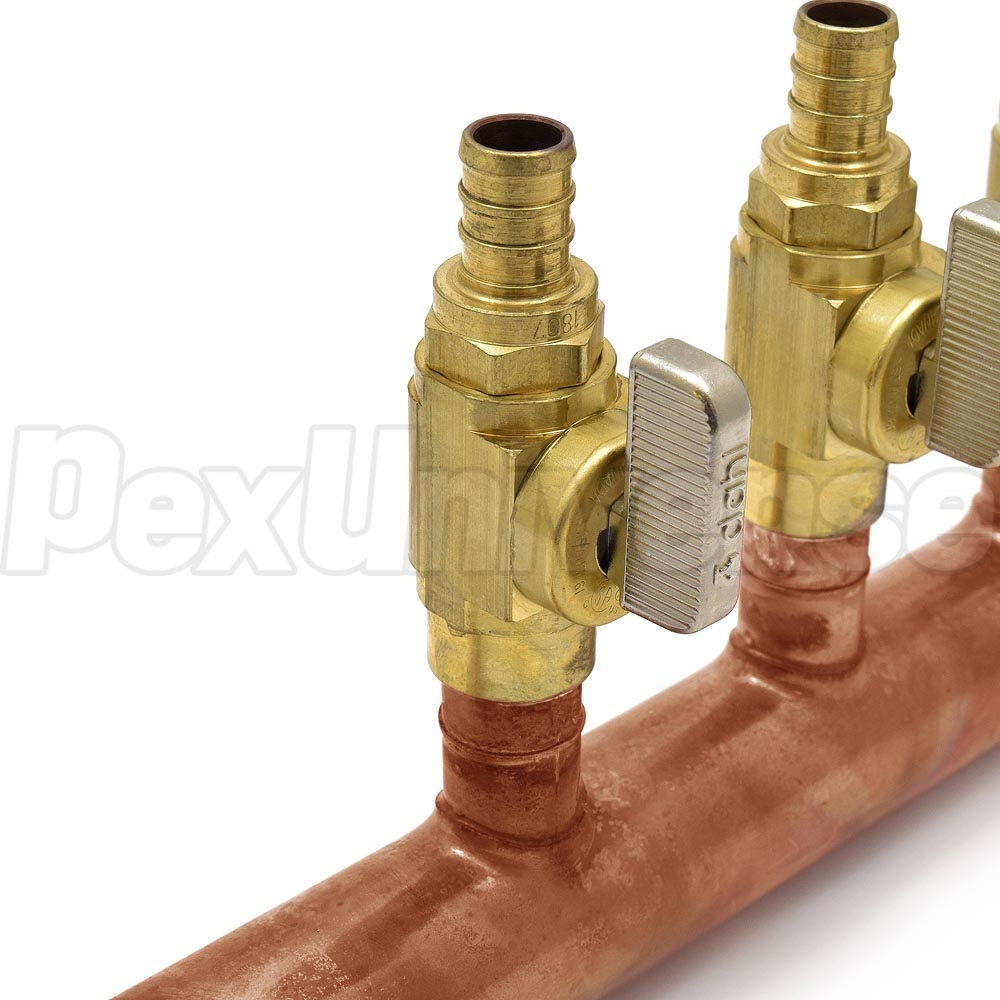

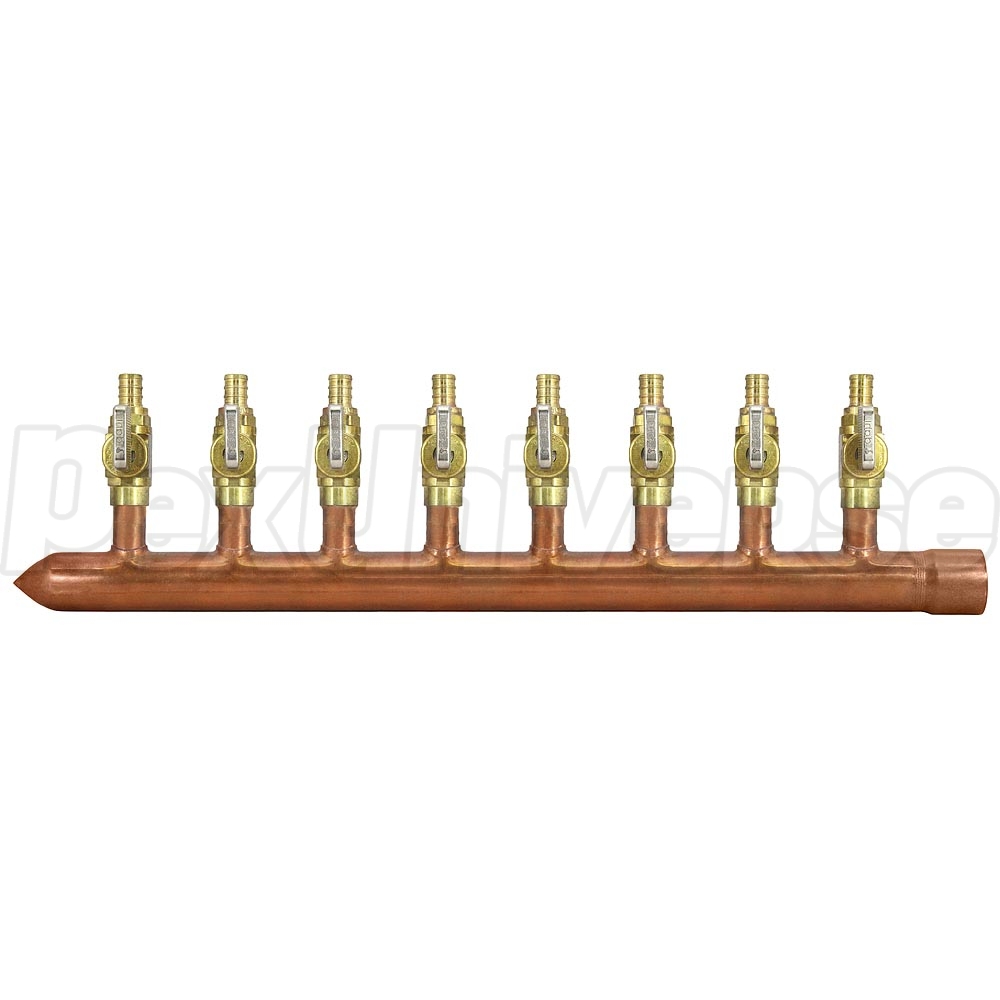

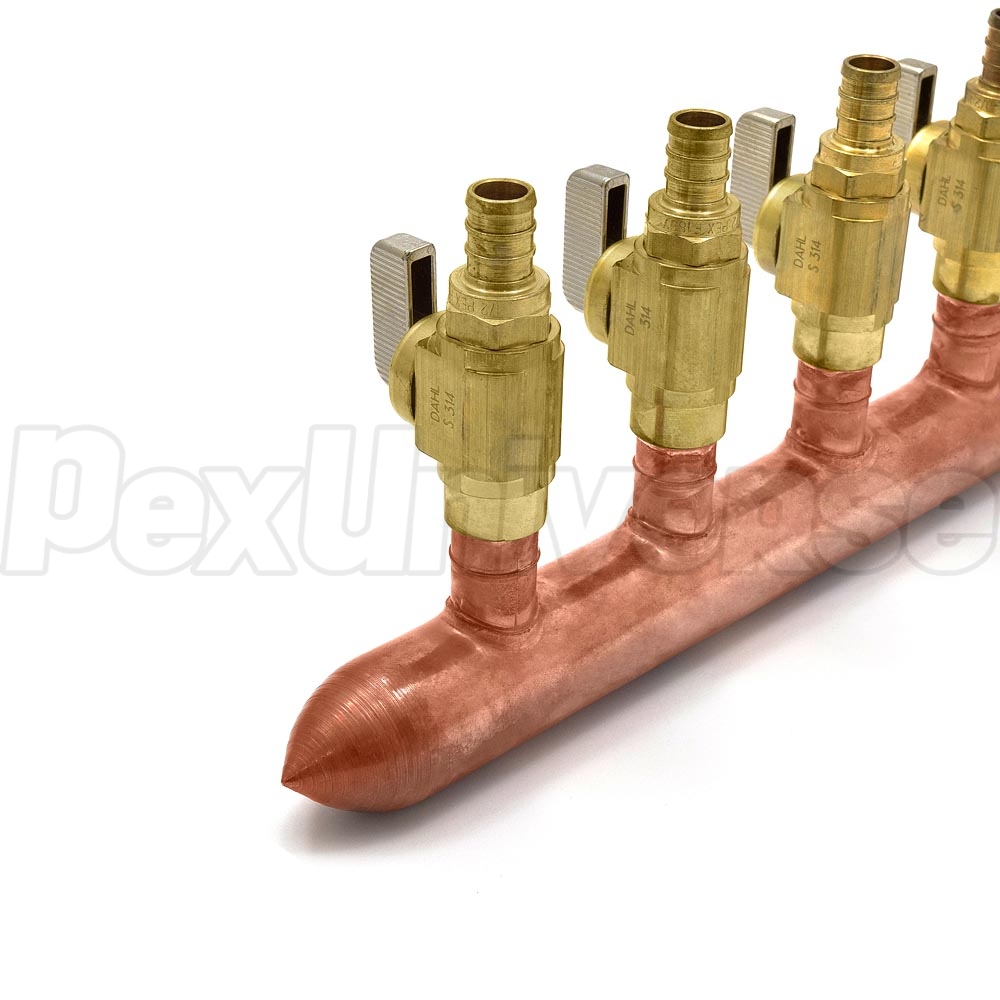

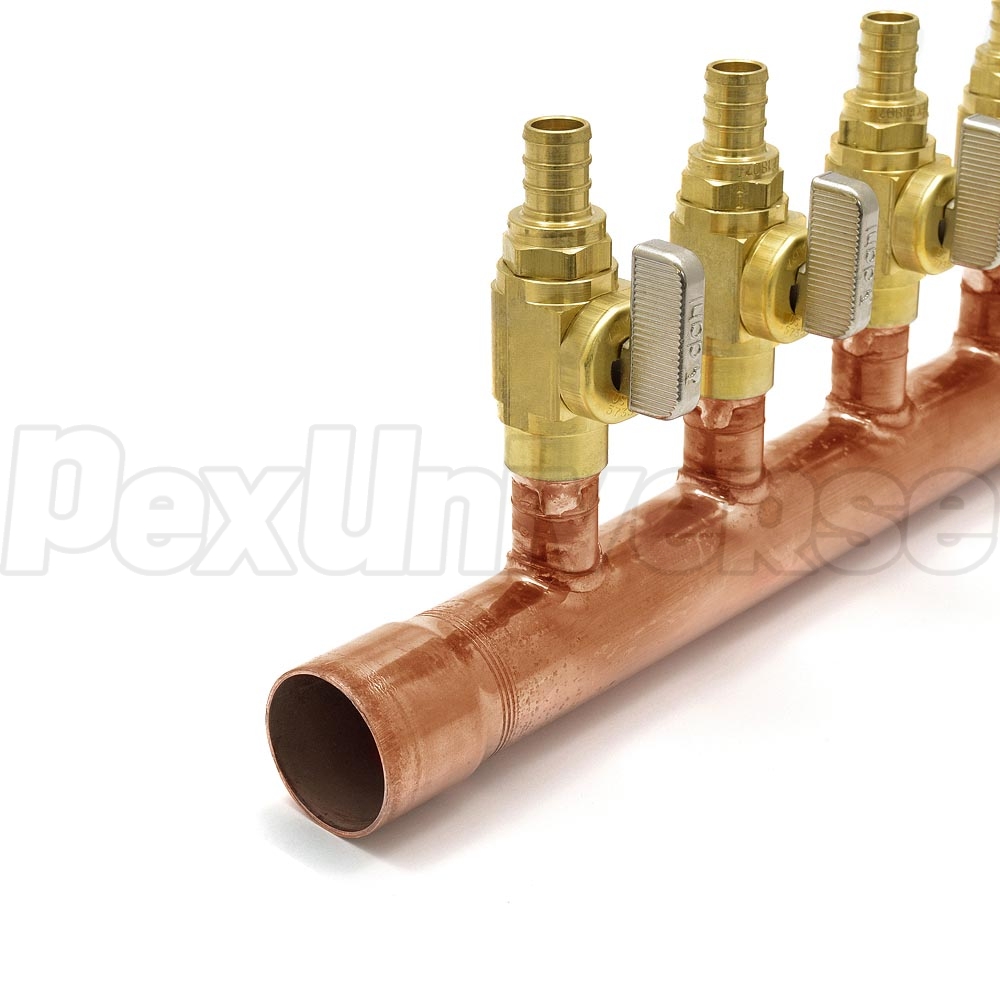

Sioux Chief manifold with 1" sweat inlet and 1/2" PEX, crimp style, 1/4-turn mini brass ball valve outlets.


Features:

  • Lead-free
  • Type L copper trunk
  • Shut-off ball valves made from lead-free brass
  • Compatible with crimp or cinch PEX connection systems
  • cUPC listed
  • Made in the USA

Technical Specifications:

  • Left side version (trunk inlet on the right side, trunk outlet is spin closed)
  • Trunk inlet: 1" female sweat (accepts 1" copper pipe)
  • Trunk diameter: 1" copper pipe
  • Branches: 1/2" PEX, crimp style (1/4-turn ball valves)
  • Number of branches: 8
  • Branch spacing: 2" OC (On Center)
  • Overall size (L x H): 18-1/4" x 4.5"
8-port Copper Manifold with 1/2" PEX Valves, 1" Sweat, Closed, Left-Hand has an average 5.0 out of 5 rating based on 4 user reviews.

head on right product
By scruffy (from havre mt) on 10/1/2015
very well built makes it easy for do it your self plumbers very happy
Was this review helpful?  Yes / No

Good Product
By J (from NC) on 4/22/2015
Very well made product. Made installation much easier than individual shutoffs inline.
Was this review helpful?  Yes / No

excellent product
By Chrissy (from Pittsburgh, PA ) on 1/11/2014
be sure you purchase a copper sweat on reducer if you need one. The item arrived in a long skinny box. the weight is hefty and impressive. its very well made. I am very very happy with it.
Was this review helpful?  Yes / No

Terrific product a a great price
By Vaughn (from Rochester, NY) on 7/13/2011
Exceptional! I could not have asked for or built anything better than the eight port PEX manifold. the valves alone are worth more than the entire assembly. It made installation easy and the end product had a professional appearance. The homeowners were impressed with the increase in their water pressure at the tap and that they could isolate each new zone in their house.
Was this review helpful?  Yes / No
Indicate an email address where you wish to receive the answer to your question.
Image CAPTCHA
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
What are the spacings of the fittings?
Read 1 answer
2" apart OC (On Center)
Answered on 12/10/2013 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
8-port Copper Manifold, 1/2" PEX valves, spin closed (Left)My question is regarding the (left) or (right) designation, want to get the correct one for my application.situation: when i am in the location where I will control the valves the outlet valves will be directed down and the inlet from the supply will be on the right... which one do i get?
Read 1 answer
1 of 1 people found this answer helpful.
You'll need the Right hand manifold: 672XV0810.
Answered on 5/20/2013 by PexUniverse Customer Service
