PEX x Sweat Brass Ball Valve, 1/2" - Side 2
PEX x Sweat Brass Ball Valve, 1/2" - Side 1

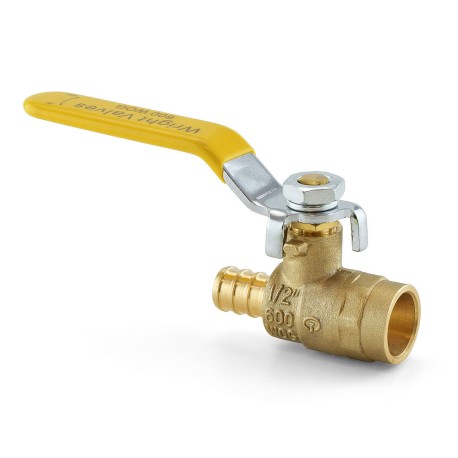

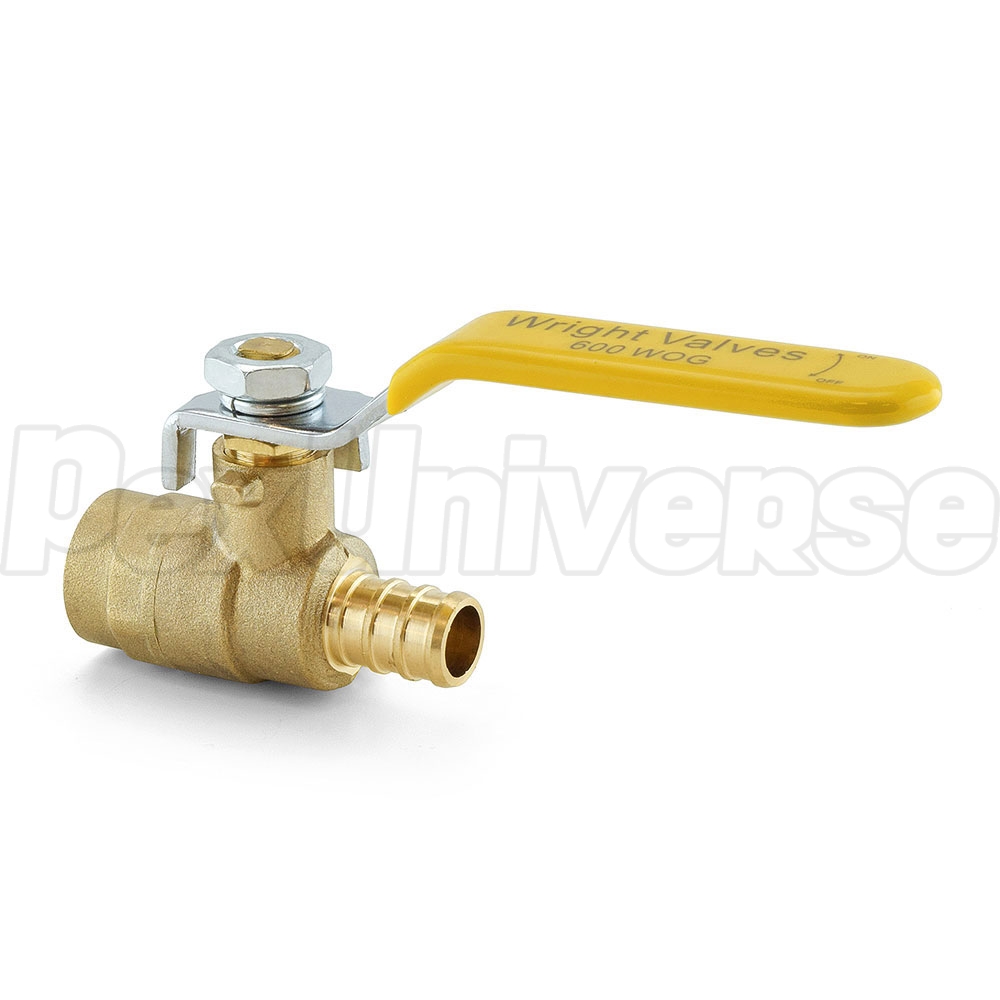

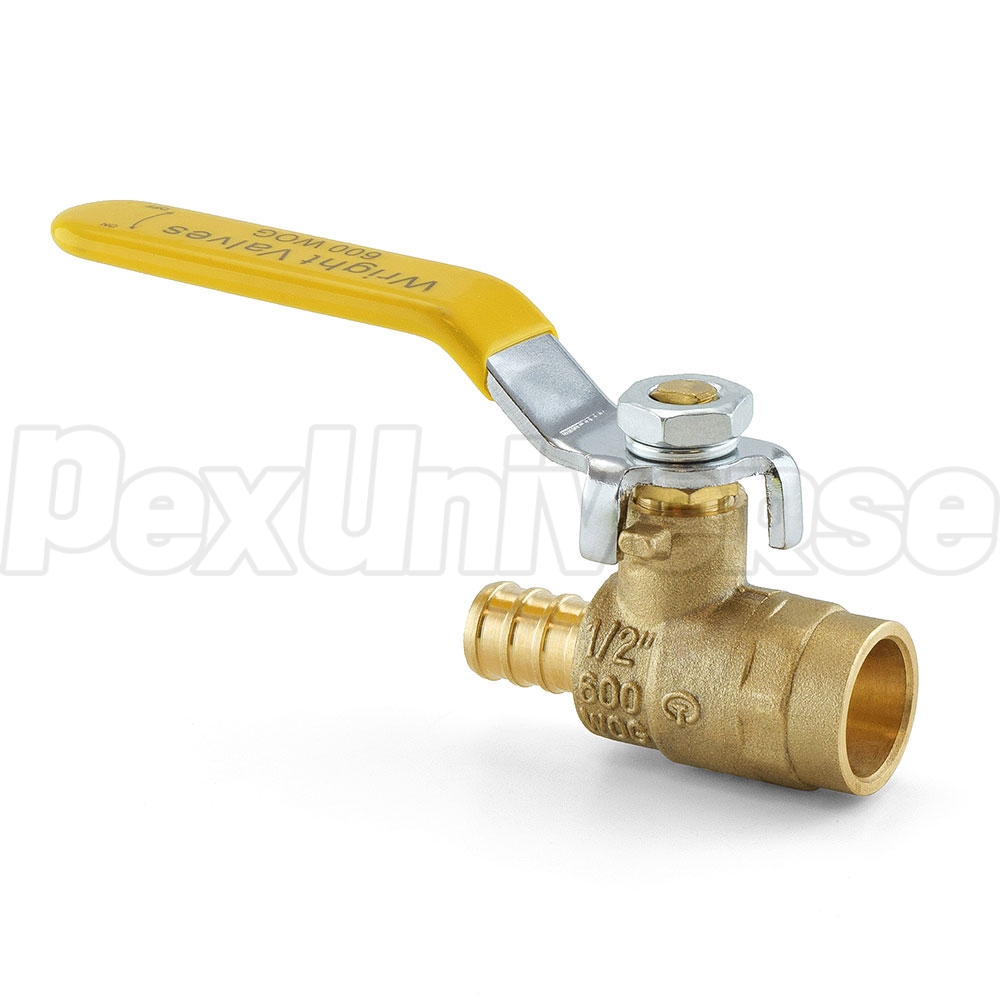

1/2" PEX x Sweat (Solder) Brass Ball Valve, Full Port

Brand: Wright Valves

Mfr Part#: BV012CX

Availability: In Stock
Usually ships: within 1 business day
Qty Price
$3.25 / each
x10 $27.50 / box
(10 x $2.75 / each)
  • Description
  • Literature
  • Reviews
  • FAQs (2)

This product does not meet the new low-lead criteria defined in Safe Drinking Water Act and cannot be used for potable water applications, including for drinking and cooking. This product can be used for non-potable water applications only.

1/2" PEX x 1/2" Sweat brass ball valve.

Crimp style PEX outlet per ASTM F1807. Compatible with all types of PEX (A, B, C) and crimp or clamp connection methods.


  • Full port valve design;
  • Teflon (PTFE) seats;
  • 1/4-turn steel handle.

Technical Specifications:

  • Inlet: 1/2" Sweat (meets ANSI B16.18);
  • Outlet: 1/2" PEX (crimp style, per ASTM F1807);
  • 600 psi non-shock WOG rated;
  • 150 psi standard working pressure;
  • Max. temperature: 200°F.
No reviews yet
Indicate an email address where you wish to receive the answer to your question.
Enter numbers shown above without spaces. This step helps us to prevent automatic submissions.
When sweating the copper joint, are any precautions needed for avoiding overheating the valve assembly?
Read 1 answer
1 of 1 people found this answer helpful.
The process and precautions are the same as with all any other sweat type ball valves. To avoid overheating of the valve body, some installers may apply a wet rag over it.
Answered on 5/18/2015 by PexUniverse Customer Service
Was this answer helpful?  Yes / No
for the pex side, is it crimp compatible?
Read 1 answer
Yes, the crimp part of the valve is per ASTM F1807 standard (same as regular PEX crimp fittings), compatible with crimp ring system and all types of PEX tubing (A, B, C).
Answered on 4/16/2013 by PexUniverse Customer Service
