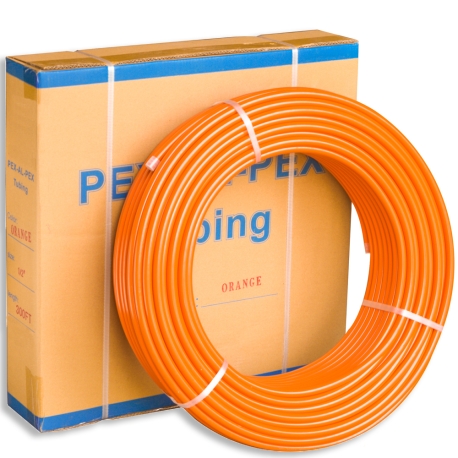

1/2" x 300ft PEX-AL-PEX Tubing
Brand: Everhot
Part#: APX1230
In Stock
Usually ships: within 1 business days

300ft roll of 1/2" PEX-AL-PEX Tubing for use in radiant heating applications.

Meets/exceeds ASTM F1281, CSA B137.10 standards.
Also certified for use in domestic water applications. UPC listed by IAPMO.
Pressure rated at: 80psi @ 200F, 160psi @ 140F, 200psi @ 73F.
Packing: Box (26" x 26" x 6"), 24.0 lbs


Everhot PEX-AL-PEX Tubing:

  • Is manufactured to ASTM F1281 & CSA B137.10 standards.
  • Tested and Certified by NSF for potable water applications and complies with NSF/ANSI 61 standard.
  • Lead-Free Certified by NSF, complies with NSF/ANSI 372 (nsf-pw-g) standard and SDWA guidelines, lead-free compliant for all of the USA.
  • NSF Certified to the Uniform Plumbing Code (UPC).
  • Meets chlorine resistance requirements when tested in accordance with ASTM F2023.

Applications:

1/2" PEX-AL-PEX Tubing is commonly used for radiant heating applications projects such as concrete slabs (wire mesh or rebar reinforced), thin slabs (non-reinforced), below the subfloor heating (staple-up), sandwich type installations (between subfloor and finished floor) and many others.

Typical loop length for 1/2" PEX-AL-PEX varies from 250ft to 350ft, depending of the application, supply temperatures, flow rates, etc. 300ft is considered standard for typical concrete slab install.


Compatibility:

PEX-AL-PEX tubing can be installed using compression style PEX fittings of Press type system (fittings, sleeves and tools).


Cross-References:
  • Uponor (MultiCor/MLC): D1250500
  • Watts (RadiantPEX-AL): RL0508-300-OR
  • Zurn (Alumicor): Q3PAP300X
  • Viega (FostaPEX): 35019

Read more
Write a Review
Helpful? Yes 7 No
Verified Purchase
No issues with this product so far.
I installed this product into the concrete slabs on my new home and other than one cut where a guy got a little too close with a chainsaw, I have had no leaks so far. You do have to be a little careful to not kink the product since the aluminum layer tends to hold whatever shape you bend it to, but this was only when I wasn't paying attention. If you use your hands to form the bends, there isn't any issue.
By Contractor (from Chicago) on 12/18/2015
Ask a Question
Ia Al-PEX bettter than PEX?Can it be run on higher teperature and PSI than PEX?
Helpful? Yes 4 No
It has the same pressure ratings as regular PEX tubing, but adds "memory" feature which allows the tubing to keep it shape when bent and therefore simplifies the installation process. PEX-AL-PEX also expands and contracts less with temperature changes, which makes it popular for under-floor applications where tubing is staples to the subfloor.
By PexUniverse Customer Service on 05/20/2013
which PEX type can be used outside with exposure to UV rays and what is the life span under those conditions including salt water exposure? Thanks
Helpful? Yes 2 No
PEX tubing is not designed for outdoor use and has to be shielded from the UV light.
By PexUniverse Customer Service on 05/20/2013
Is Everhot PEX-AL-PEX Grade a or b
Helpful? Yes 1 No
It is type B (not grade B). The letters A, B and C refer to manufacturing process and have nothing to do with grade or quality.
By PexUniverse Customer Service on 06/29/2015
Does Everhot PEX-AL-PEX use overlapped seams for the aluminum layer?
Helpful? Yes 1 No
Yes, this PEX-AL-PEX has an overlap-welded aluminum layer.
By PexUniverse Customer Service on 05/29/2015
Can this be reamed and used directly with the Viega 1/2 inch press tool and appropriate fittings, or does the outer layer and aluminum sheathing need to be stripped away prior to using press fittings as it does with the FostaPEX tubing?
Helpful? Yes No
FostaPEX is a Viega's proprietary product and does not match the dimensional specifications of regular PEX-AL-PEX. Therefore, Viega's tools and fittings are not compatible with standard PEX-AL-PEX pipe. You can use regular PEX-AL-PEX compression fittings and reamer tool we sell for the latter.
By PexUniverse Customer Service on 07/18/2018
There is a different Compression Manifold Adapter SSM212 for PEX-AL-PEX and SSM512 is used for PEX. Can PEX fittings like BPF6802 be used with PEX-AL-PEX?
Helpful? Yes No
No. PEX crimp fittings only work with regular PEX.
By PexUniverse Customer Service on 11/04/2014
