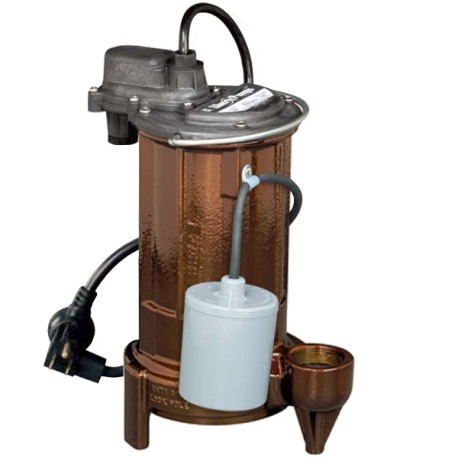

The Liberty 293HV-3 is an automatic submersible effluent/sump pump with an adjustable wide angle float that includes a series/piggy-back plug for manual operation. This sump/effluent pump comes with a 3/4HP, single-phase motor that can reach a max flow of 78GPM at 5' of head. The Liberty 293HV-3 operates at 203/280V and provides a cost-effective mid-range pump for on-site waste water systems, liquid waste transfer and commercial heavy duty sump pump applications that require higher head or more flow. This Liberty sump/effluent pump comes equipped with a wide angle float switch, has a discharge of 1-1/2NPT and can handle solids up 3/4". The Liberty 293HV-3 automatic submersible effluent sump pump has a shut-off of 48' of head and comes with a quick disconnect 50' power cord.
The Liberty 293HV-3 is designed with high voltage capability and best used for residential and commercial heavy-duty pumping of large volumes of drainage, effluent and waste water, and other non-corrosive, non-explosive liquids. Liberty's unique Uni-Body casting will provide years of reliable performance.
