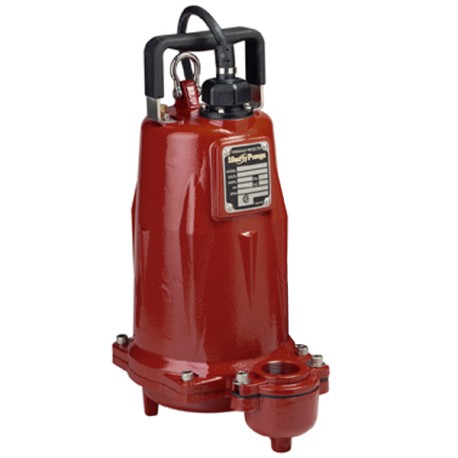

Manual Effluent Pump, 25' cord, 1 1/2 HP, 208/230V, 3-Phase
Brand: Liberty Pumps
Part#: FL153M-2
This product has been discontinued. No direct replacement is available at this time.

The Liberty Pump FL153M is a 1-1/2HP, 230V, 3 Phase manual submersible effluent sump pump with a motor that is enclosed in heavy-cast iron construction. These Liberty effluent pumps are designed for STEP systems, mound systems, liquid waste transfer and higher head de-watering applications. The Liberty FL153M is intended to be run using an approved liquid level control or approved motor control with a correct rating that matches motor input in full load amperes. Regardless of the control type, be sure that when this effluent sump pump shuts off, at least 3-1/2" of fluid is left in the basin so the impeller remains submerged. The Liberty FL153M submersible sump/effluent pump is equipped with a dual sized discharge of 1-1/2" FNPT and 2" FNPT for connection to either size pipe. This effluent sump pump can also handle solids up to 3/4" and has a shut-off head of 110'.

The Liberty FL153M is built of heavy cast iron with an epoxy powder coat finish and stainless steel fasteners. 3-phase models require a control panel for automatic operation. See simplex and duplex panel literature for complete information. Check three-phase effluent sump pumps for proper rotation prior to installing pump(s) in the basin. To change rotation, reverse any two of the three power leads to the pump. Code the wires for reconnection after installation.


Features:
  • 3/4" Solids-handling
  • Heavy cast iron construction
  • 2 vane semi-open cast iron impeller
  • Dual shaft seals
  • Single float, mercury free level control
  • Fully adjustable pumping range
  • 2" FNPT threaded discharge with 1-1/2" FNPT flange provided
  • Quick-disconnect power cord - 25' length standard.

Technical Specifications:
  • Horsepower: 1-1/2 HP
  • Oparation Type: Manual
  • Maximum Flow: 127 GPM @ 5' head
  • Maximum Head: 110 ft
  • Discharge: 2" FNPT (1-1/2” FNPT cast iron flange provided)
  • Solids Handling: 3/4"
  • Maximum Fluid Temperature: 140°F
  • Cord Length: 25 ft
  • Construction: Cast Iron
  • Frequency of Revolutions: 3450 RPM
  • Voltage: 208-230V
  • Amperage: 10.6 A.

Warranty:
3 years manufacturer's warranty
