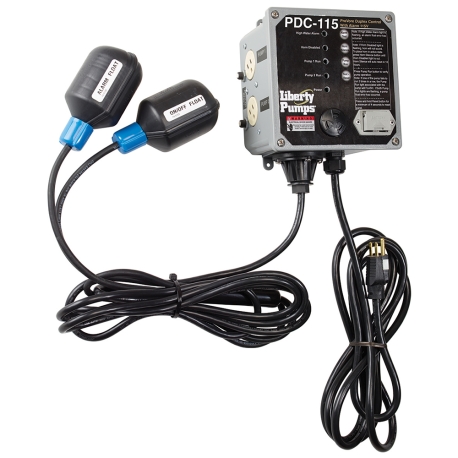

Outdoor Duplex Sewage/Grinder Pump System Control w/ 25ft cord, 115V, up to 1HP (12A)
Brand: Liberty Pumps
Part#: PDCW-115-2
Usually ships: within 5-7 business days
PDCW series control (rated for outdoor use) is designed for use with duplex sump, sewage, effluent or grinder systems where individual pump does not exceed 12A (1 HP).
(2) float switches (one for On/Off and the other for Alarm) mount on discharge pipe of either of two pumps (mounting hardware included). The control panel alternates pump operation (1st, then 2nd, then 1st again and so on), effectively equalizing their wear and extending their lifespan, and in the event one of the pumps is down, the panel will alert the user and will assign all the workload to the second pump until the issue is resolved.
PDCW control comes standard on all outdoor Pro680 and ProVore680 duplex basin systems and is universally compatible with other brand pumps and basins. It is a time-tested, reliable and versatile control suitable for both residential and commercial applications.

  • Universally compatible with all 115V outdoor duplex systems (sewage/grinder) with individual pump at or below 1HP (12A max)
  • Alternates pump operation, equalizing wear and extending their life span
  • NEMA 4X rated panel for outdoor installations (panel power, pumps and float must be hardwired)
  • 9V battery alarm backup
  • 360° alarm beacon
  • 6 hour run limiter protects pump against run-dry conditions
  • External alarm silence switch, internal (under the swing-out door) button controls for alarm test, pump run and test/reset

Technical Specifications:
  • Control Type: Duplex, alternating, non-simultaneous
  • Alarm: built-in horn and external LED beacon
  • Number of Floats: 2 (On/Off & Alarm)
  • Compatibility: All 115V sewage & grinder duplex systems (incl. Liberty Pro680, ProVore680 & others) with individual pump not exceeding 1 HP (12 A)
  • Electrical: 115V, hardwired (no plug), 1-Phase, NEMA 4X Enclosure (for outdoor use), 25ft float switch cord, 20A dedicated service req'd
  • Dimesions (Depth x Width x Height): 4" x 8" x 8"
  • Approx Weight: 10 lbs

3-year warranty
