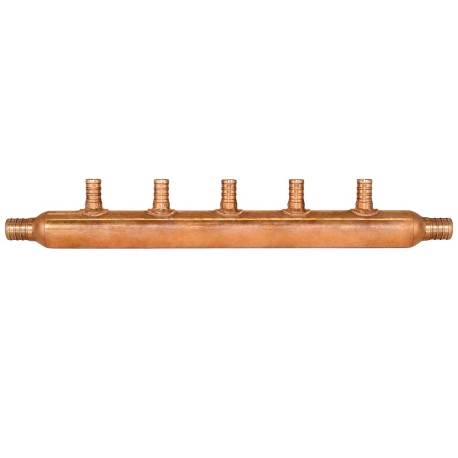

5-port Copper Manifold with 1/2" PEX branches, 3/4" PEX x Open
Brand: Sioux Chief
Part#: 672X0599
In Stock
Usually ships: within 1 business days

Sioux Chief BranchMaster manifolds feature PEX crimp-style outlets (F1807) and can be installed using crimp or clamp connection systems. Compatible with all PEX types.

  • No lead
  • Made from pure copper (L-type)
  • PEX crimp style inlet/outlets (F1807)
  • Compatible with crimp or cinch connection systems
  • Use as primary or secondary manifold
  • cUPC listed
  • Manufactured in the USA
Read more

Technical Specifications:
  • Trunk inlet: 3/4" PEX
  • Trunk outlet: 3/4" PEX
  • Trunk size (diameter): 1" copper pipe (CTS)
  • Branches: 1/2" PEX
  • Number of branches: 5
  • Branch spacing: 2" OC (On Center)
  • Manifold dimensions (L x H): 13" x 2"
Read more
Ask a Question
Is PEX measured by id or do?
Helpful? Yes 2 No
Its neither. PEX is measured by CTS (copper tubing size). This basically means that PEX and copper pipes have the same OD, the only difference being wall thickness. For all standard PEX tubing sizes (3/8" through 1"), CTS of PEX is 1/8" less then it's OD. For instance, 3/4" PEX has an OD of 7/8", and 1/2" PEX has an OD of 5/8". You can read more about this here.
By PexUniverse Customer Service on 11/02/2015
