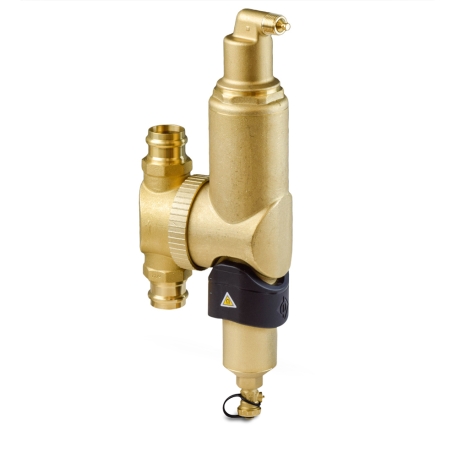

1-1/4" Press, Spirocombi Vertical Air & Dirt Magnetic Separator
Brand: Spirotherm
Part#: VDR125PFM
Spirocombi series 2-in-1 vertical style air eliminator and magnetic dirt separator. This model is most effective for systems containing cast iron components, including cast iron boilers, radiators, circulator pumps, etc. Patented Spirotube coalescing component effectively removes even the smallest air bubbles from the system, protecting it and extending life of installed components.

Technical Specifications:
  • System Connections: 1-1/4" Copper Press
  • Bottom Connection: 3/4" GHT (Garden Hose) w/ shut-off valve

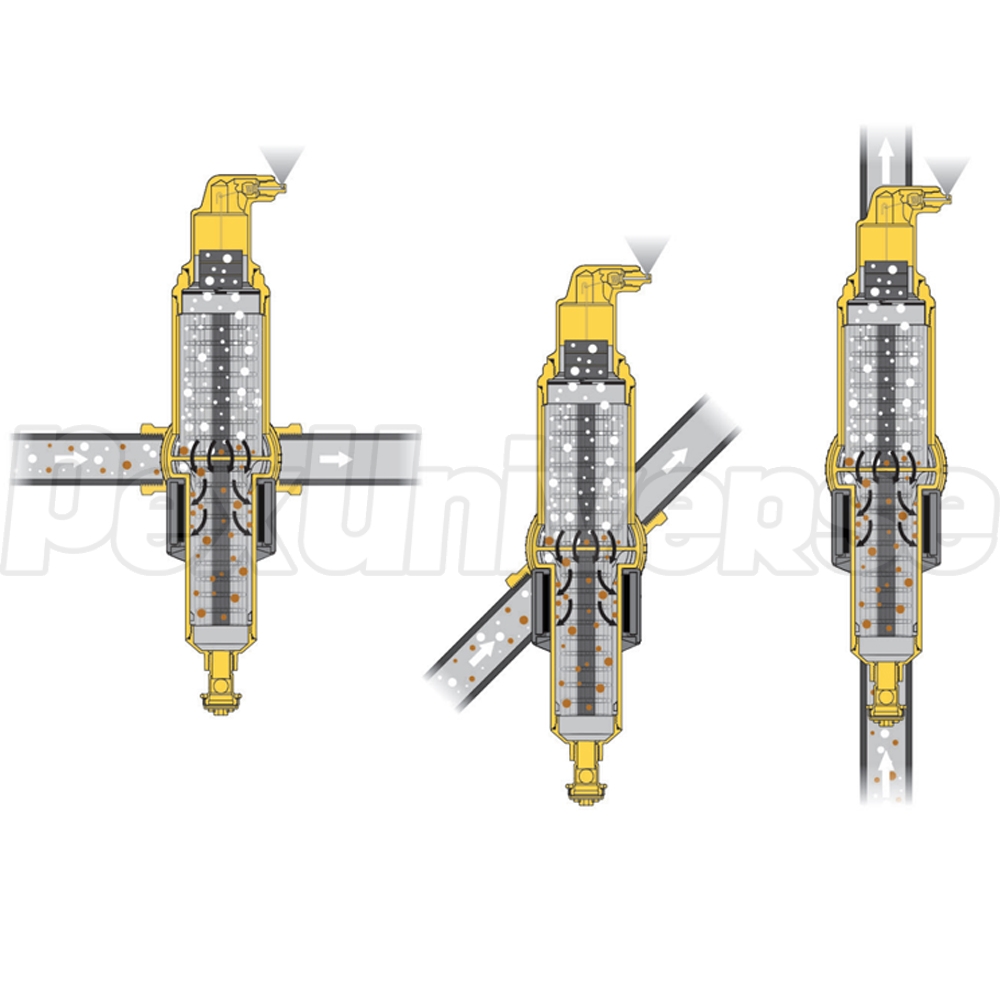

  • Installation: Vertical
  • Max Operating Pressure: 150 psi
  • Max Temperature: 270°F
  • Flow at 4ft/sec. Velocity: 15 GPM
  • Weight: 11.5 lbs

20 year limited warranty
