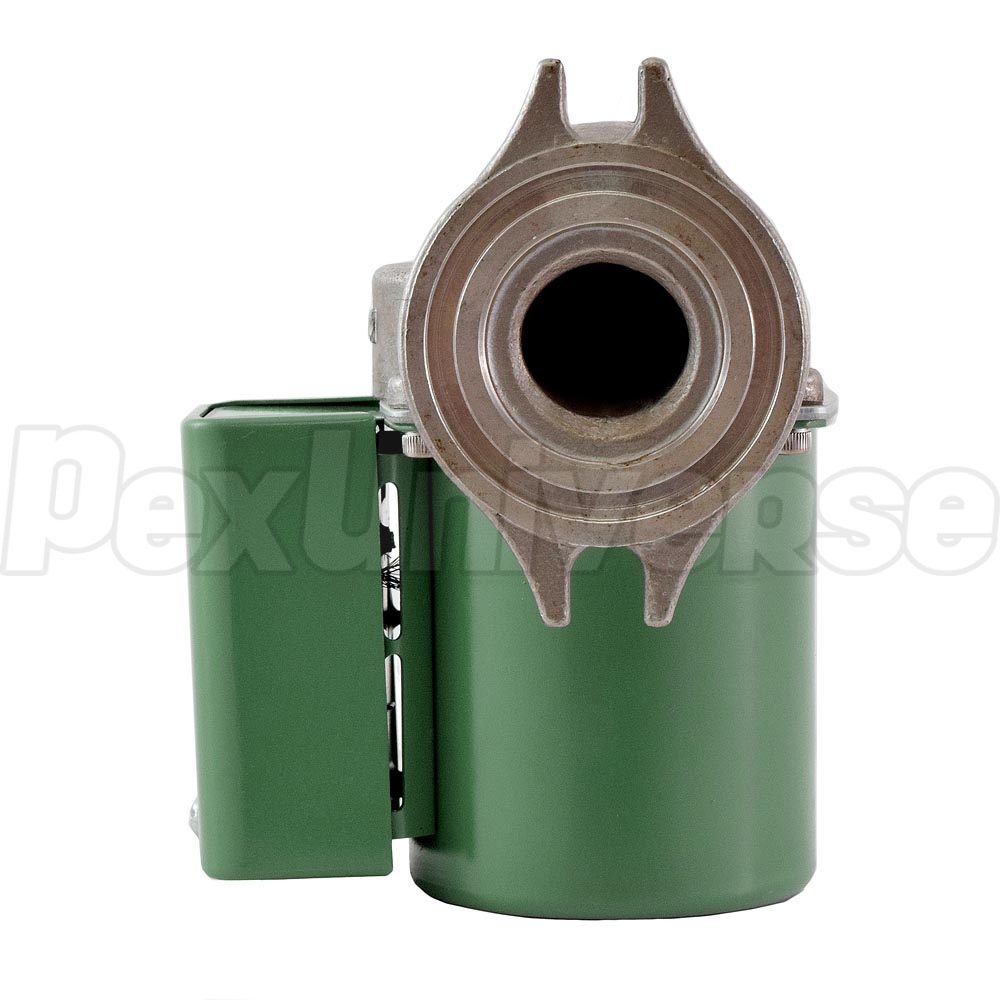

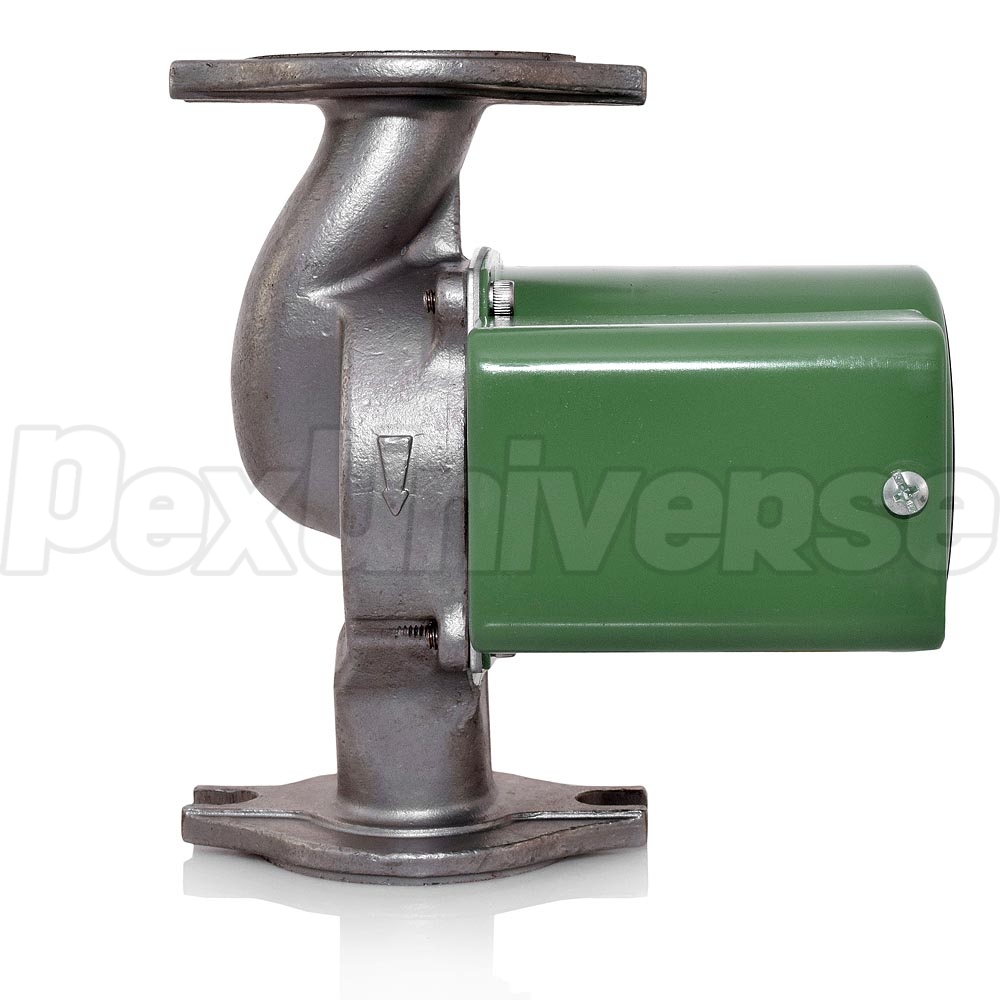

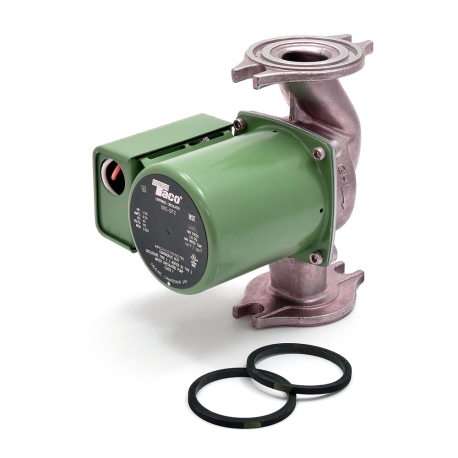

005 Stainless Steel Circulator Pump, 1/35 HP, 115V
Brand: Taco
Part#: 005-SF2
In Stock
Usually ships: within 1 business days

Taco 005-SF2 Stainless Steel circulator pump is designed for a wide range of residential and light commercial water circulating applications. Its unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design of the Taco 005-SF2 pump is ideal for high-efficiency jobs.

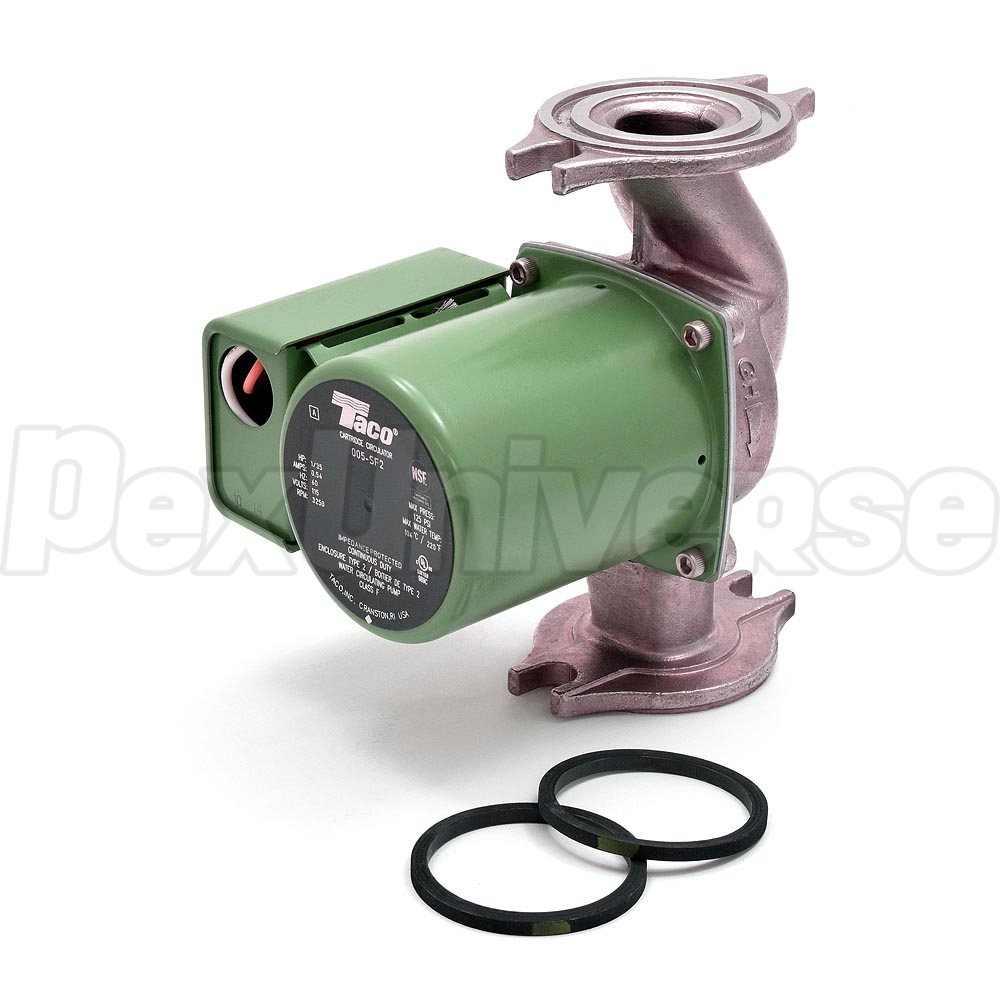

Gaskets (O-rings) included;


Applications:
  • Hydronic Heating/Cooling;
  • Radiant Heating;
  • Indirect Water Heaters;
  • Domestic Water Recirculation;
  • Solar Systems;
  • And many others.

Read more

Technical Specifications:

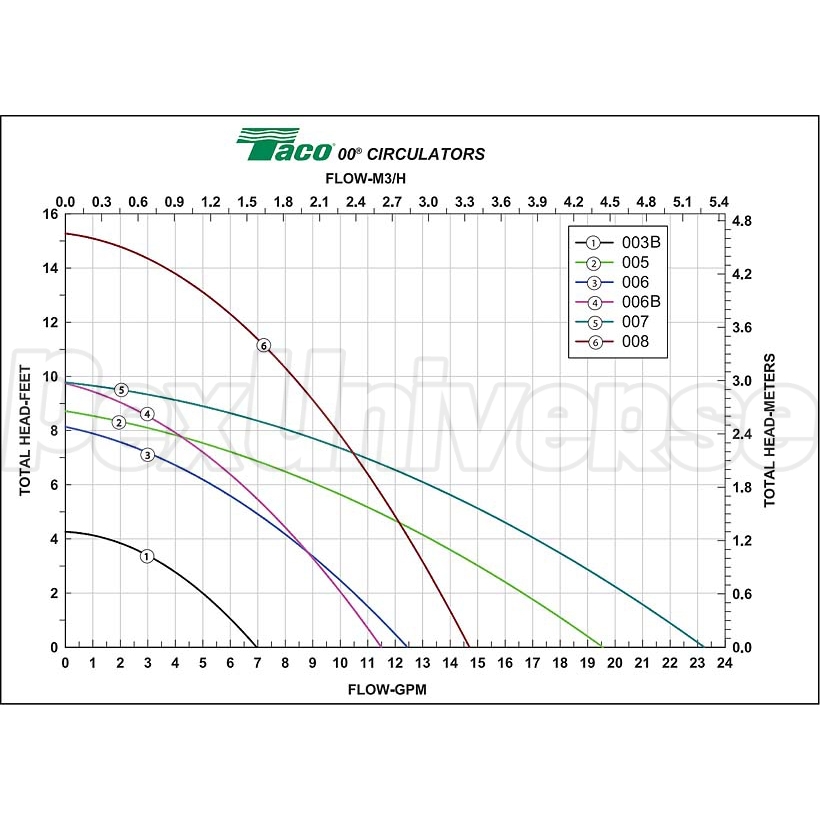

  • Flow Range: 0 – 19 GPM;
  • Head Range: 0 – 9 Feet;
  • Minimum Fluid Temperature: 40°F (4°C);
  • Maximum Fluid Temperature, Cast Iron: 230°F (110°C);
  • Maximum Working Pressure: 125 psi;
  • Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged;
  • Voltage: 115V;
  • Hertz: 60Hz;
  • Phase: 1;
  • Amps: 0.54A;
  • HP: 1/35HP;

Read more

Warranty:
3-year manufacturer's warranty.
Write a Review
Helpful? Yes No
Taco Circulating Pump
Pump used in hot water loop to master bathroom shower, tub and other fixtures.Works great. Instructions could be more clearer in stating that the direction of flow arrow is toward the hot water heater source.
By RJ (from San Antonio, TX) on 01/22/2014
Ask a Question
can the 110-251SF flange pairs for this pump be attached to brass 3/4" brass nipples? Are the metals compatible?
Helpful? Yes No
If used with regular water (for heating or plumbing), it would not be a problem. Just make sure to use teflon tape to seal the connection and prevent seizing.
By PexUniverse Customer Service on 07/17/2018
