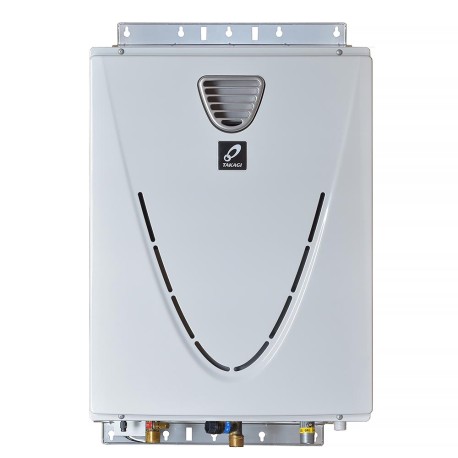

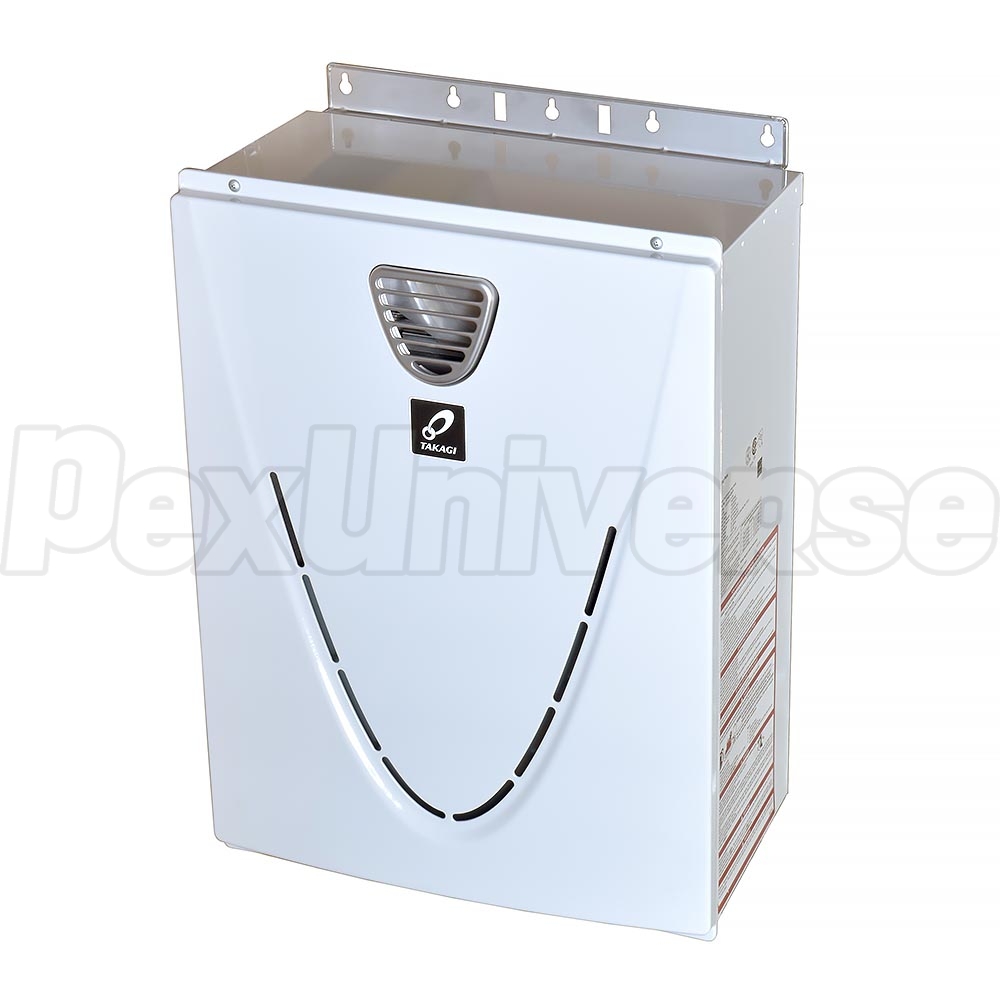

Takagi T-H3-OS Outdoor Tankless Water Heater, Natural Gas, 199KBTU
Brand: Takagi
Part#: T-H3-OS-NG
In Stock
Pick Up available - Save ${{ (Math.round(Math.abs(pickupPrice) * 100) / 100).toFixed(2) }} / each
Estimate delivery
Usually ships: within 14-16 business days

Description


Cross-References:
  • Rinnai: RU199e (SE+)
  • Noritz: NRC111-OD
  • State: GTS-540-NEH
  • American: GT-540-NEH

Features:
  • Easy-Link Up to 4 Units:
  • - With no additional parts or accessories needed
  • Ultra-Low NOx Condensing Technology
  • Durable Heat Exchanger:
  • - Primary Heat Exchanger is constructed of HRS35 Commercial-Grade Copper
  • - Secondary Heat Exchanger is made of Type 316L Stainless Steel
  • Continuous Maximum Flow Rates Up to 10.0 GPM
  • Easy-Link Up to 4 Units
  • Energy Star Qualified
  • Can be used in both Residential and Commercial applications
  • Electroni Ignition - No Pilot Light
  • Power Direct Vent Design:
  • - Exhaust, 3" PVC Venting up to 70 Feet or 4" PVC Venting up to 100 Feet
  • - Provides flexible venting with PVC, CPVC, or ABS Pipe for Intake and Exhaust (solid core only). Canadian Installations Require ULCS636 Listed PVC or CPVC Pipe for Venting.
  • - Category IV Stainless Steel venting can also be used

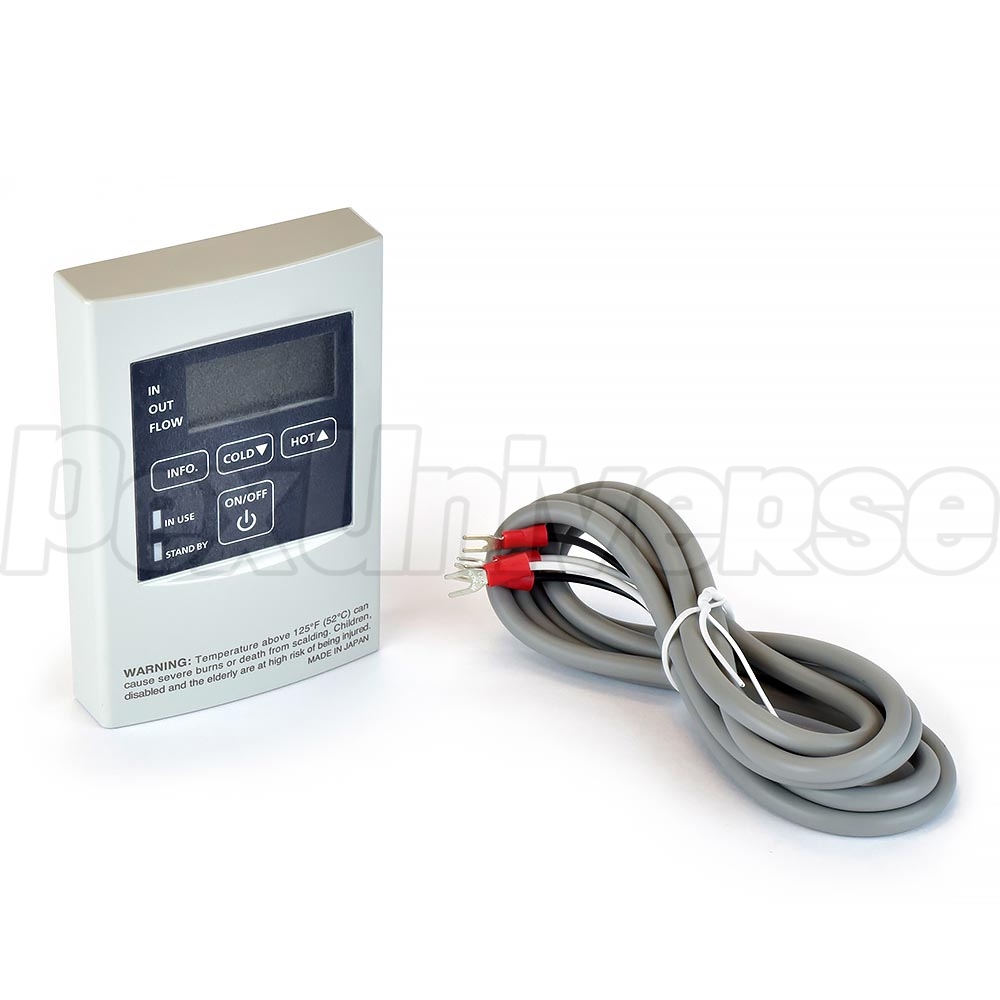

  • Includes a Wall Mount Temperature Remote Controller and Advanced Diagnostic to Simplify Troubleshooting
  • Multi-Link Up to 20 Units
  • Complies With Lead Free Standards
  • Safety:
  • - Air-Fuel Ratio (AFR) Sensor
  • - Exhaust & Water Temperature Safety Control
  • - Overheat Cut-Off Fuse
  • Internal Freeze Protection System.

Technical Specifications:
  • Weight: 59lbs
  • Dimensions: 22.4" x 17.7" x 10.7"
  • LPG Input: Min 15,000BTU/h - Max 199,000BTU/h
  • Ignition: Electronic Ignition

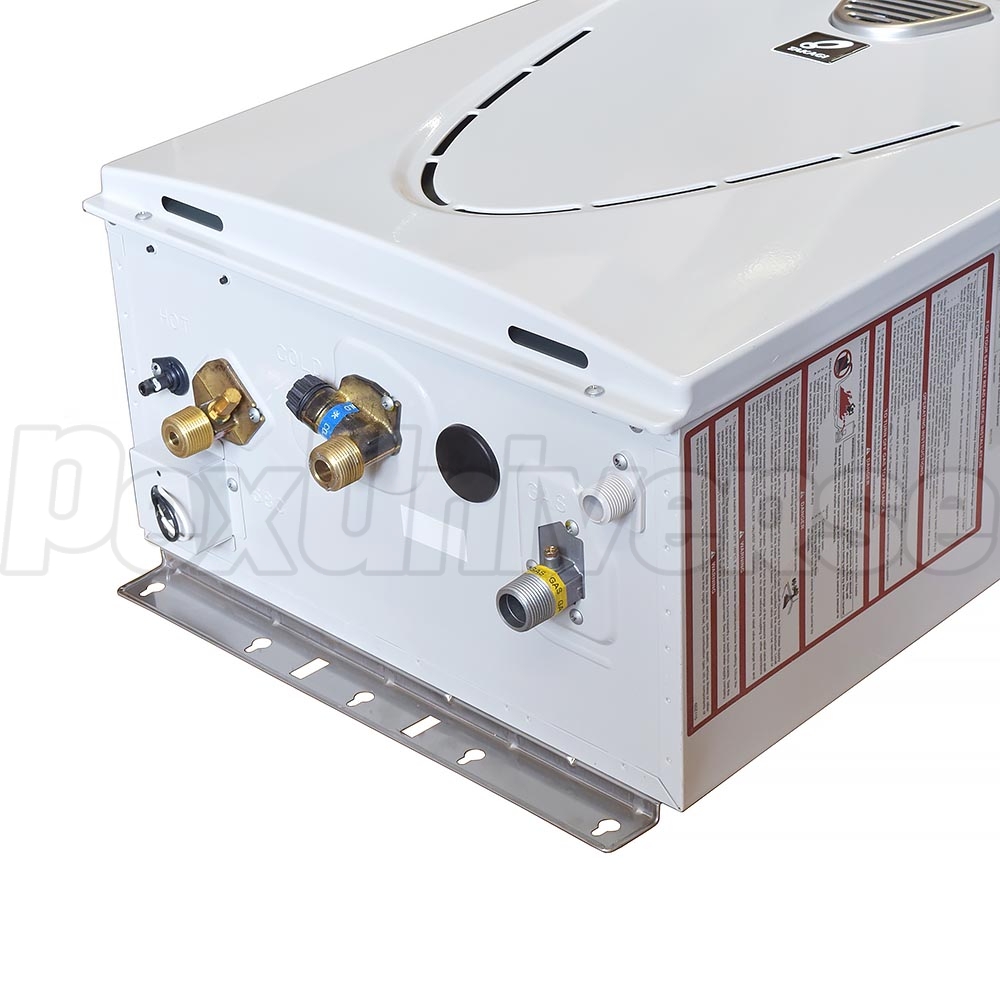

  • Gas Connection: 3/4" NPT
  • Water Connection: 3/4" NPT
  • NG Gas Pressure Inlet: Min 5.0" WC - Max 10.5" WC
  • Electrical Supply AC: 120V (60 Hz)
  • Water Pressure: Min 15PSI - Max 150PSI
