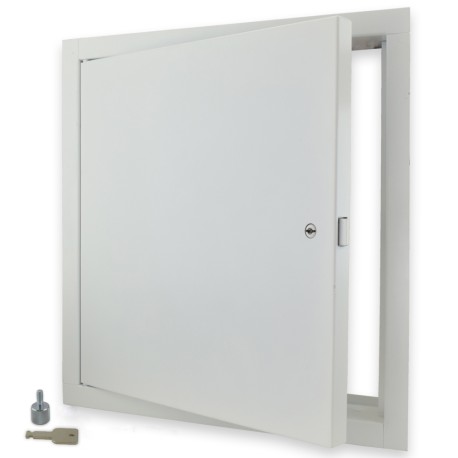

18" x 18" Fire Rated Access Door, Steel
Brand: Acudor
Part#: FB-5060-18X18
This product has been discontinued. No direct replacement is available at this time.
Acudor FB-5060 series, 18" x 18" metal access door design to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor. Comes with knurled knob/flush key operated self latching bolt. For wall installation only.

Features:
  • Designed to maintain continuity in a 2 hour fire rated wall, when temperature rise is not a factor
  • Self-closing & self-latching door mechanism
  • Comes with knurled knob and flush key for universal self-latching bolt
  • 1" wide door frame flange with reinforced edges
  • Concealed stainless steel pin hinge
  • Made in America.

Technical Specifications:
  • Fire rating: UL: 1.5 hour "B" label. ULC: 2 hour "B" label
  • Door and frame material: 16 gauge galvanized steel
  • Door finish: white baked enamel
  • Installation: Walls only
  • Access door size (W x H): 17.78" x 17.78"
  • Overall size (W x H): 20" x 20"
  • Mounting Depth: 2.56"
  • Inside Frame (W x H): 18.12" x 18.12"
  • Rough Opening (W x H): 18-3/8" x 18-3/8".
