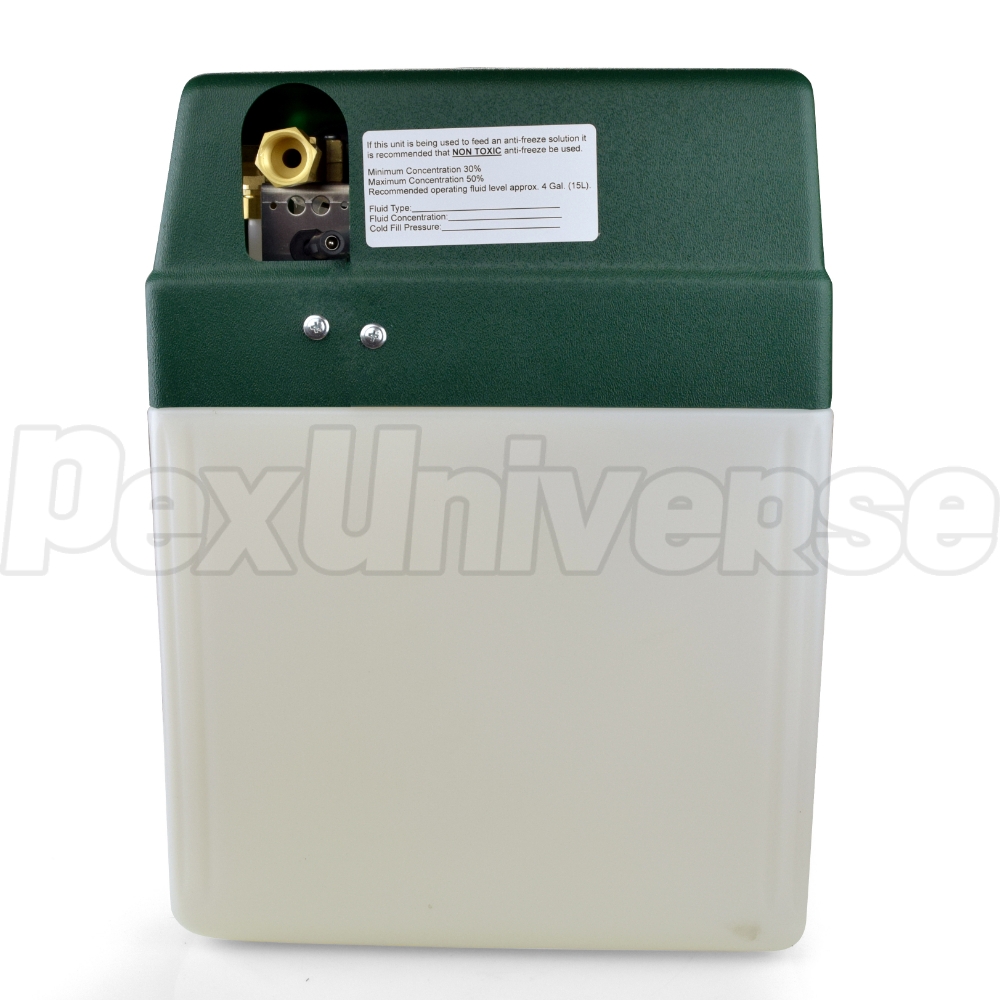

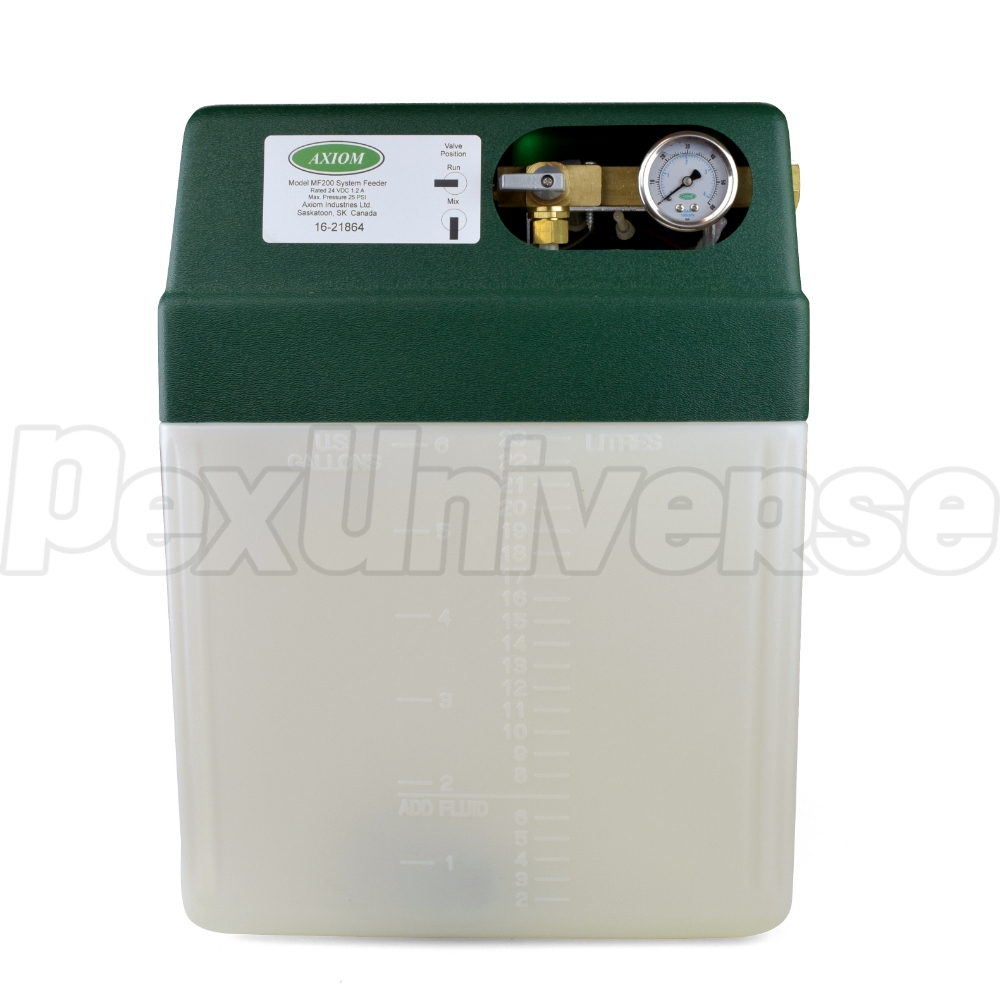

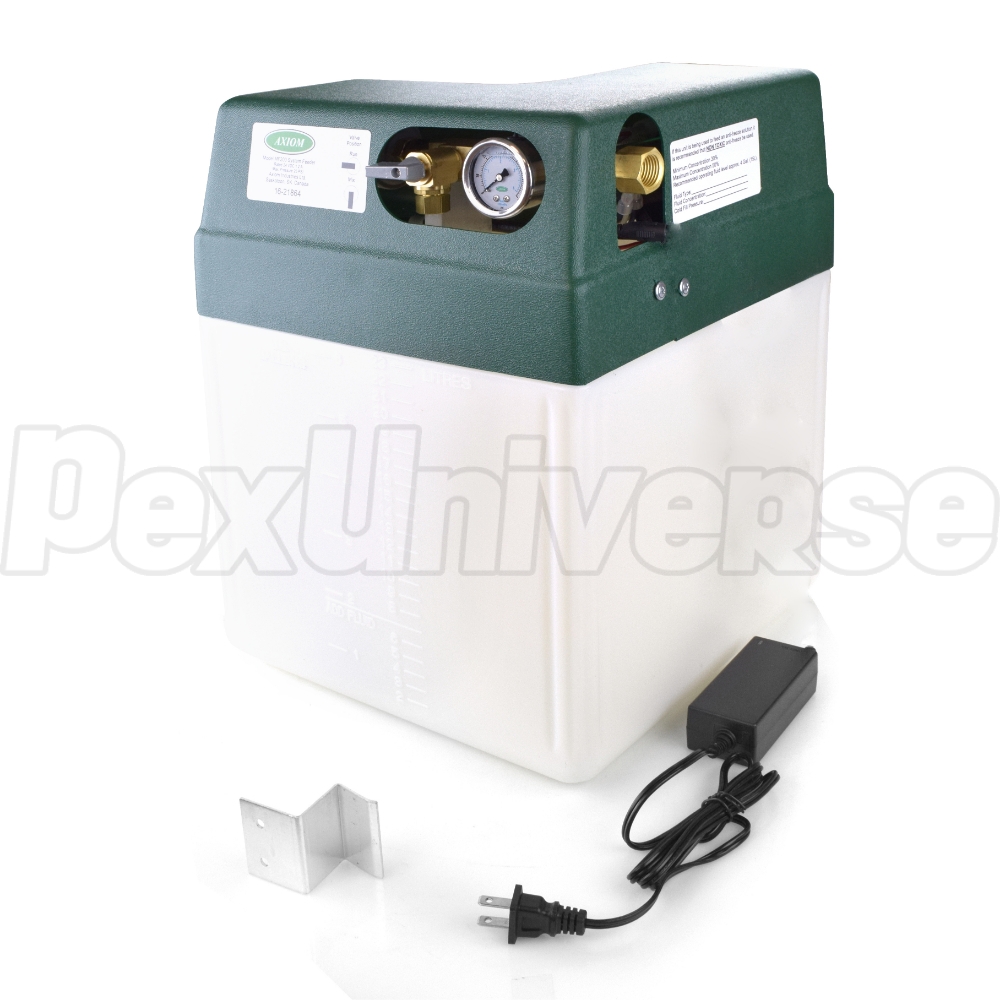

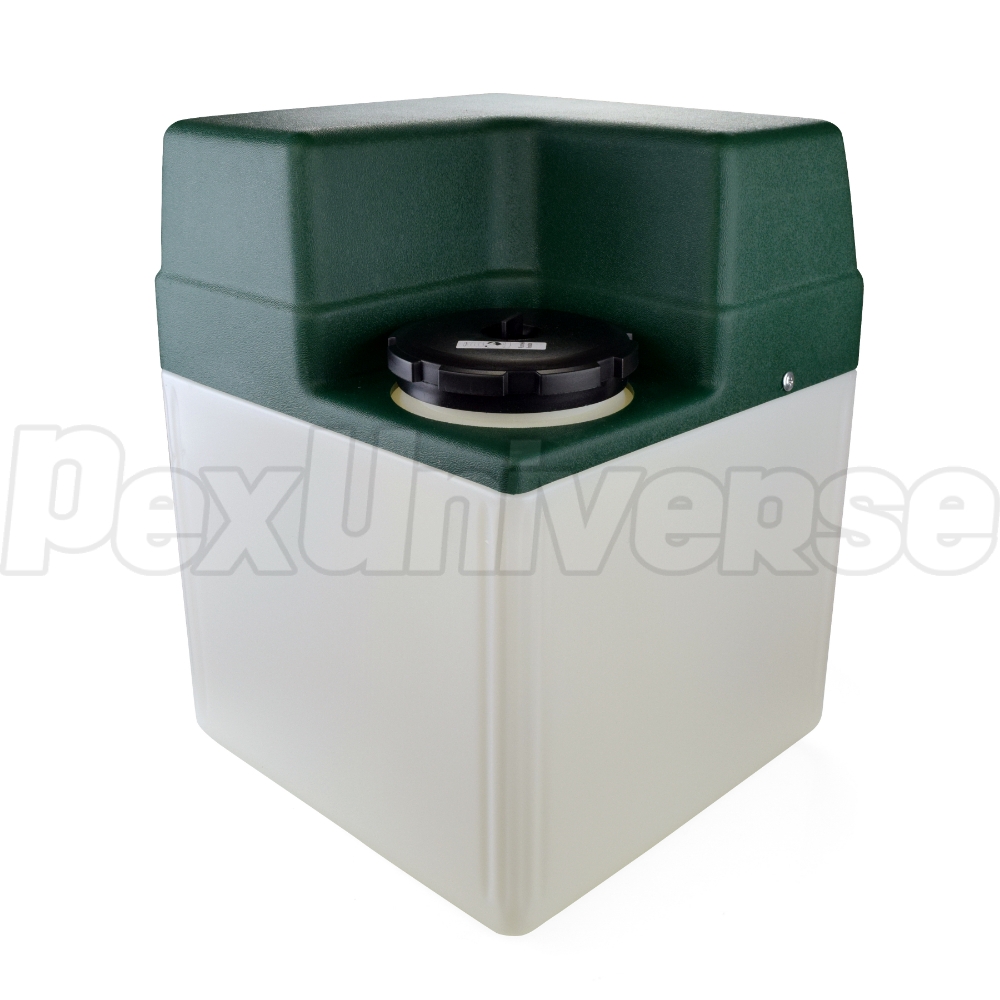

MF200 PressurePal Hydronic System Mini Feeder, 6 gallon
Brand: Axiom
Part#: MF200
MF200 PressurePal feeder (6.0 gal) is ideal for feeding and pressurizing closed-loop heating systems with operating pressure of 25 psi and below. It allows for installation of stand-alone hydronic heating, radiant heating, snow/ice melting systems and forced air coil heat exchangers - without the need for running a separate potable water supply line. Axiom hydronic feeders are compatible with water and up to 50% water/glycol mix solutions and plug directly into a US standard electrical wall outlet - no special wiring or control boxes needed. MF200 is easy to install & service, saves time & labor and helps to prevent major flooding caused by leaks and ruptured pipes.

  • Compatible with water & glycol (anti-freeze) mixes
  • Perfect for stand-alone hydronic and radiant heating, snow melting and heating/cooling coils
  • Plugs directly into a standard 115VAC outlet
  • No need for piping to a potable water supply - no need for backflow preventer
  • Built-in diaphragm pump can run dry without damage
  • Make-up fluid stored in the feeder tank can be pre-treated
  • Diverter valve allows for easy purging of air on start-up and manual agitation of solution
  • Major flood prevention - in the event of leakage or system rupture, only the tank contents will be pumped into the system
  • Early leak detection - dropping fluid level indicate that the system has developed a leak
  • Fluid drained for service can easily be re-used (put back into the system)
  • Fluid level switch shuts the pump off if fluid level in the tank gets too low
  • Auxiliary dry contacts for (optional) low-level alarm installation.

Technical Specifications:
  • Pressure switch range: 10-25 psig (70-170 kPa) - adjustable, factory set to 15 psig
  • Tank volume: 6.0 gallons (22.7 liters)
  • System connection: 1/2" FPT
  • Electrical: 115V, 60Hz, US standard 3-prong plug
  • Weight: 7.0 lbs (when empty) or 60.0 lbs (when full)
  • Dimensions (L x W x H): 11.75" (300mm) x 11.75" (300mm) x 16" (400mm)
  • Pump performance: up to 0.7 GPM @ free flow, self-priming up to 4ft (1.2m)
  • Max. glycol concentration: 50%.
