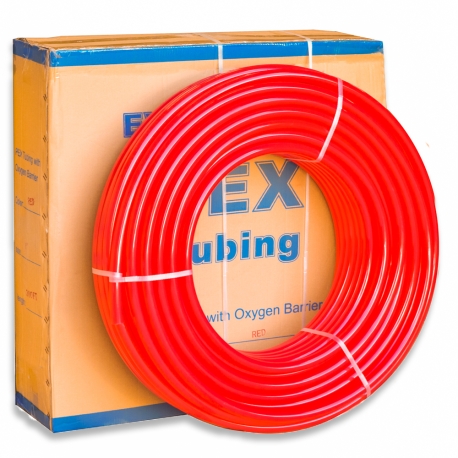

1" x 300ft Oxygen Barrier PEX Tubing
Brand: Everhot
Part#: BPR1030
In Stock
Usually ships: within 1 business days

300ft roll of 1" PEX Tubing with Oxygen Barrier for use in heating applications.

Meets/exceeds ASTM F876/877, CSA B137.5, DIN 4726 standards.
Certified for use in radiant floor heating applications. UPC listed by IAPMO.
PPI pressure rated at: 79psi @ 200F, 100psi @ 180F, 160psi @ 73F
Packing: Box, 36" x 36" x 10"; Weight: 60 lbs;


Everhot PEX Tubing with Oxygen Barrier:

  • Is manufactured to ASTM F876/F877 & CSA B137.5 standards.
  • Tested and Certified by NSF for use in floor radiant heating applications.
  • NSF Certified to the Uniform Plumbing Code.

Applications:

1" PEX Tubing with Oxygen Barrier can be used for the following applications:

  1. Boiler Supply and Return Lines. Replaces copper pipes when running tubing to PEX manifold stations. Commonly used in installation of outdoor wood boilers (PEX tubing is insulated, sleeved and buried below the ground freezing level).
  2. Fan coil units and air to water heat exchangers.
  3. Radiant heating and snow melting for large structural slab-on grade systems (commercial).

Compatibility:

Everhot Oxygen Barrier PEX Tubing can be installed using either Crimp type connection system (Crimp Tool, Crimp-style PEX Fittings and Copper Crimp Rings) or Clamp/Cinch type connection system (Clamp Tool, Crimp-style PEX Fittings and Stainless Steel Clamps). Also compatible with Push-Fit connection system (such as SharkBite), Viega Press type system and Compression type PEX fittings.


This product is a replacement for:

  • Watts (RadiantPEX): PB032161-300
  • Zurn (ZurnPEX): QHR5PC300FX
  • Same size (1") ViegaPEX oxygen barrier tubing of similar lengths.
PEX Tubing colors and packaging may vary by manufacturer.

1" PEX Tubing with Oxygen Barrier is the most popular size for installation of outdoor wood boilers.

If installed for radiant heating applications, according to RPA Standard Guidelines, circuit should not exceed 750ft (500ft for snow melt systems).

Write a Review
Helpful? Yes 1 No
Awesome price and fast delivery
This product meet all my expectations. Easy to work with.
By Mark (from Indiana) on 05/21/2012
Helpful? Yes 1 No
worked great also a awesome price
worked great it was just what a i needed to install my outdoor furnace pexuniverse did a quick and fast ship too. I am very pleased with them and the product and I am not someone who is paid to say this just happy I found them and this product.. I live in Pa my brother bought his pex @ local store cost him 197 for a 150ft roll I got 300ft here for less,lol I had to rib him,,,ha
By Bill (from Johnstown,Pa) on 10/05/2011
Helpful? Yes No
pex tubing
The operator was very helpfull in filling my order, Thank you. The order was recivied like said. I'am installing it now (after it heat up) so I can bend it to shape, then a test will be put on it. Once that is done Concrete can be poured over it. Then to next stage.
By Regis H. (from USA Madisonville, Tn.) on 05/01/2012
Ask a Question
Can this be used for potable water?
Helpful? Yes 2 No
No. Everhot Oxygen Barrier PEX is not approved for potable water applications. Only the Non-Barrier PEX is approved and certified for potable water use and meets low-lead requirements nationwide.
By PexUniverse Customer Service on 06/09/2016
Can you heat the tube for easier bending without damage the O2 barrier?If yes are do's/ dont's?
Helpful? Yes 2 No
Where possible, you can submerge the pipe in hot water (i.e. bathtub) or leave it outdoors for a couple hours if the weather is hot and sunny - just make sure to close off the pipe ends to prevent water/debris from getting inside. We do not recommend using heat gun.
By PexUniverse Customer Service on 04/27/2016
What is the Thermal Conductivity of PEX piping in BTU/in/hr/ft^2/F preferably?
Helpful? Yes 1 No
Thermal conductivity ("k factor") of PEX is determined in the PPI Test Report #48 from 2014 and indicates an average 2.8-2.9 (BTU x in)/(sqft x hr x F). This report also includes estimated R values of typical PEX pipe sizes.
By PexUniverse Customer Service on 12/11/2015
