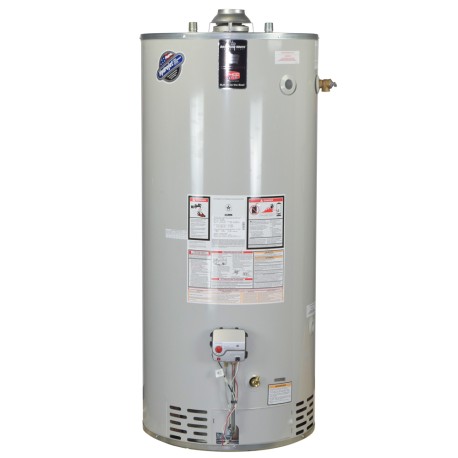

75 Gal, Defender Atmospheric Vent Water Heater (NG), 6-Yr Wrty
Brand: Bradford White
Part#: RG275H6N
Usually ships: within 3-5 business days
Bradford White RG275H6N model is a 75-gallon, high-input/high-recovery natural gas (NG) water heater with atmospheric vent. Comes with installed T&P relief valve.

Features:
  • Defender FVIR system w/ ScreenLok flame arrestor prevents ignition of flammable vapors outside the water heater
  • Vitraglas enamel lining helps to extend tank life
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
  • 4" Snap-Lock draft diverter
  • Non-CFC foam covers the sides and top of the tank, reducing heat loss
  • Hand hole cleanout allows to inspect the tank and remove sediment deposits
  • Protective magnesium anode rod
  • Pedestal base.

Technical Specifications:
  • Fuel: Natural Gas (NG)
  • Nominal Capacity (Gallons): 75
  • Rated Storage Volume (Gallons): 72
  • Input (BTU): 76,000
  • Uniform Energy Factor: 0.59
  • 1st Hour Rating (Gallons): 126
  • Recovery Rise @90° F (GPH): 82
  • NOx Emissions: less than 40ng/J
  • Water Connections: 3/4" NPT
  • Gas Connection: 1/2" NPT
  • Max Working Pressure: 150 PSI
  • Ignition Type: Piezo push button ignitor
  • R-Value: 16
  • Insulation Thickness: 2"
  • Vent Type: Atmospheric (Standard)
  • Vent Size: 4"
  • Vent Material: B-Vent
  • Dimensions (Diameter x Height): 26" x 62-5/8"
  • Weight (lbs): 249.

Warranty:
6-year limited tank warranties / 6-year limited warranty on components parts
