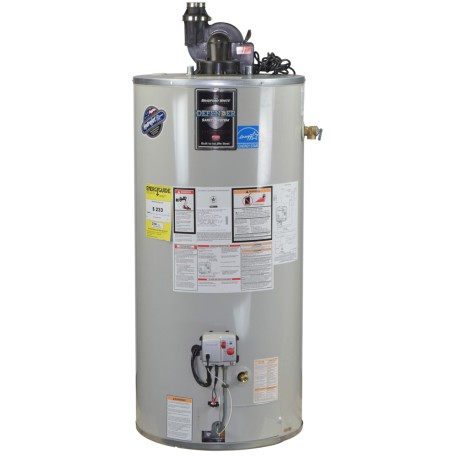

Bradford White RG2PDV75H6N model is a natural gas (NG), 75-gallon power direct vent water heater with 6-year warranty. Energy Star qualified. Comes with T&P relief valve.
Features:
Intelligent gas control with spark to pilot ignition eliminates standing pilot
Horizontal and vertical venting with PVC, CPVC or ABS
Defender FVIR system w/ ScreenLok flame arrestor prevents ignition of flammable vapors outside the water heater
Vitraglas enamel lining helps to extend tank life
Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
2" Non-CFC foam covers the sides of the tank, reducing heat loss
Factory-installed heat traps reduce stand-by heat loss
Protective magnesium anode rod.
Technical Specifications:
Fuel: Natural Gas (NG)
Nominal Capacity (Gallons): 75
Rated Storage Volume (Gallons): 72
Input (BTU): 80,000
Uniform Energy Factor: 0.59
Recovery Efficiency: 78%
1st Hour Rating (Gallons): 126
Recovery Rise @90° F (GPH): 86
NOx Emissions: less than 40ng/J
Water Connections: 3/4" NPT
Gas Connection: 1/2" NPT
Side Connections: 3/4" NPT
Max Working Pressure: 150 PSI
Ignition Type: Electronic
R-Value: 16
Vent Type: Power Direct
Vent Size: 3" or 4"
Vent Material: PVC, ABS, CPVC
Max Vent Run: 60ft (for 3")
100ft (for 4")
Power Supply: 110V, 60Hz
Dimensions (Diameter x Height): 26" x 70"
Weight (lbs): 291
Insulation System: 2".
Warranty:
6-year limited tank warranties / 6-year limited warranty on components parts
