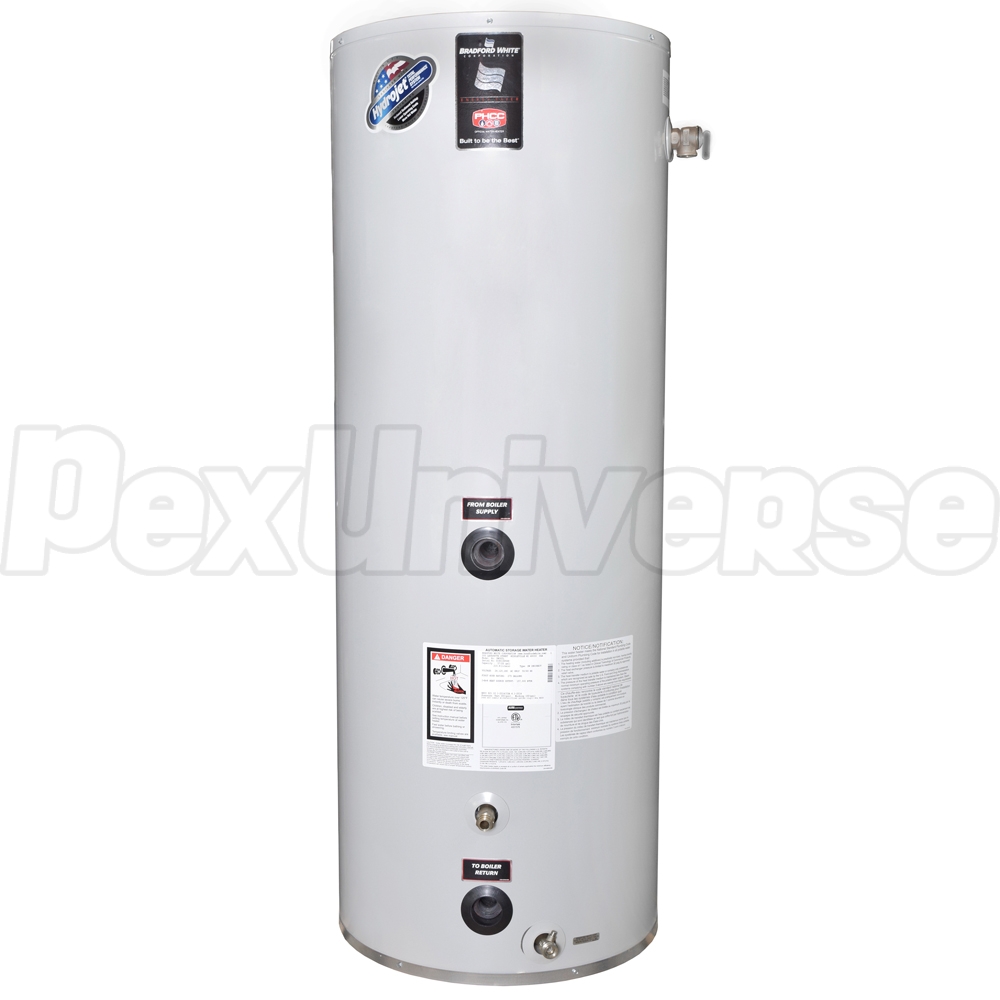

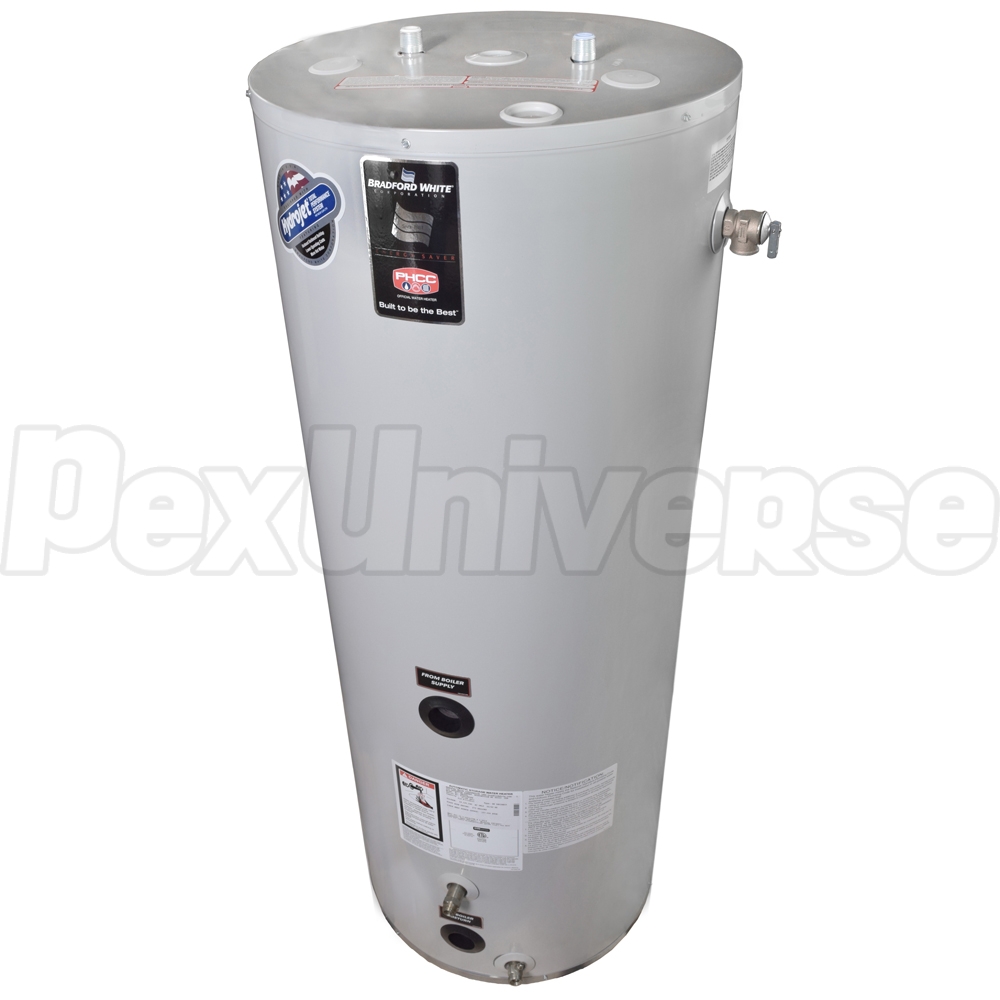

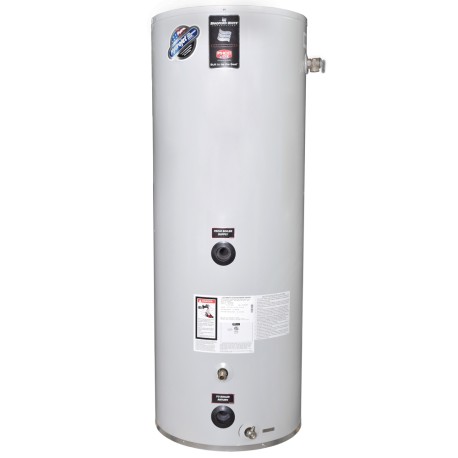

SW-2-30-L PowerStor Indirect Water Heater, 29.0 Gal
Brand: Bradford White
Part#: SW-2-30-L
Usually ships: within 3-5 business days

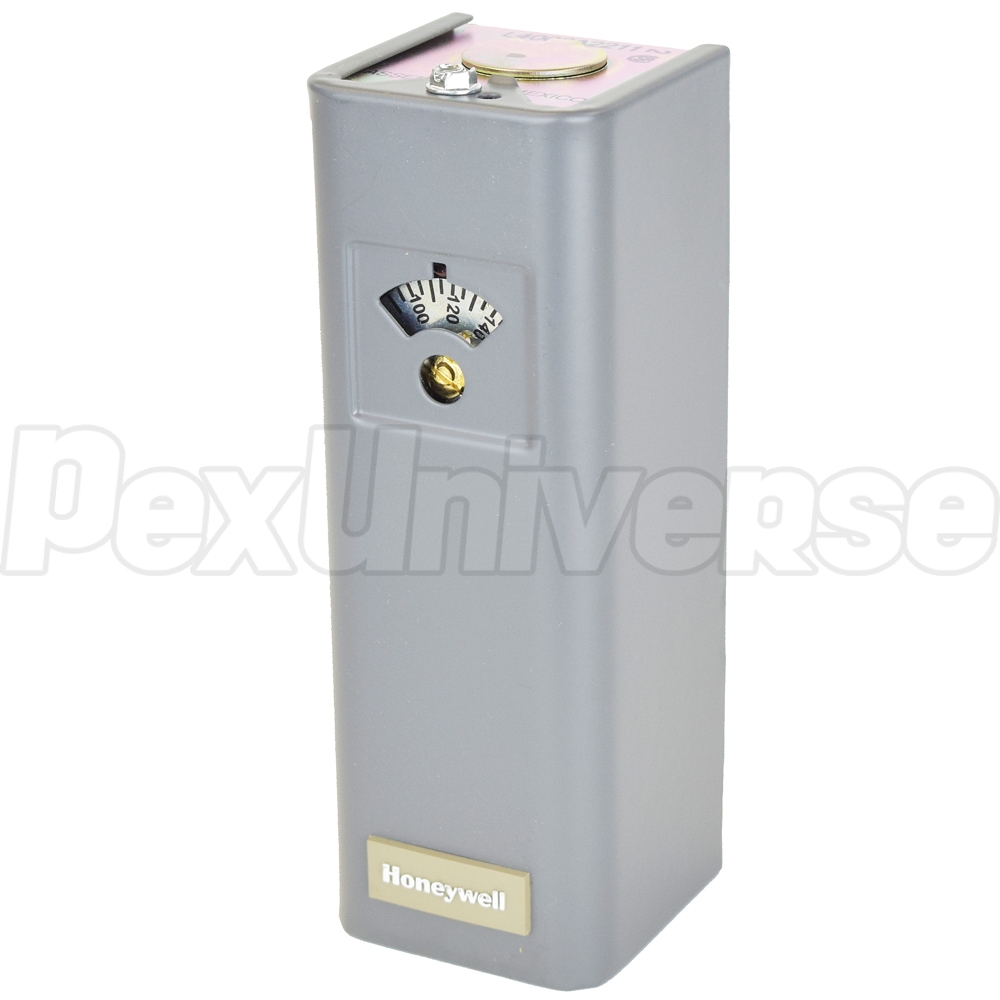

Bradford White SW-2-30-L is a 29-gallon, PowerStor (single-wall coil) series indirect domestic hot water heater model. Comes with immersed adjustable Honeywell aquastat, T&P relief valve and (3) aluminum anode rods. 2" non-CFC tank insulation ensures minimal heat loss @ only 1.2°F / hr.

Features:
  • Single-wall heat exchanger
  • Vitraglas enamel lining helps to extend tank and heat exchanger life
  • Hydrojet sediment reducing device increases 1st hour delivery and minimizes temperature build-up in tank
  • 2" Non-CFC foam covers the sides and top of the tank, reducing heat loss
  • (3) Protective magnesium anode rods.

Read more

Technical Specifications:
  • Domestic Water Capacity (Gallons): 29
  • Coil Water Volume (Gallons): 2.7
  • Heat Exchanger Type: Single Coil
  • 1st Hour Rating, AHRI (180°F Boiler water temp): 255 Gal @ 135°F
  • Continuous Draw Rating, AHRI (180°F Boiler water temp): 235 GPH @ 135°F
  • Standby Heat Loss Rating, AHRI (180°F Boiler water temp): 1.2 °F/Hr
  • Min. Heat Req. Rate, AHRI (180°F Boiler water temp): 175,000 BTU/Hr
  • Min. Heat Source Flow Rate, AHRI (180°F Boiler water temp): 13.7 GPM
  • 1st Hour Rating, DOE (200°F boiler water, 50°F potable water): 279 Gal @ 140°F
  • 429 Gal @ 115°F
  • Continuous Draw Rating, DOE (200°F boiler water, 50°F potable water): 4.2GPM @ 140°F
  • 6.7GPM @ 115°F
  • Anode(s): 3 Aluminum Rods
  • Max Supply Water Temperature: 240°F
  • Potable Water Connections: 3/4" NPT

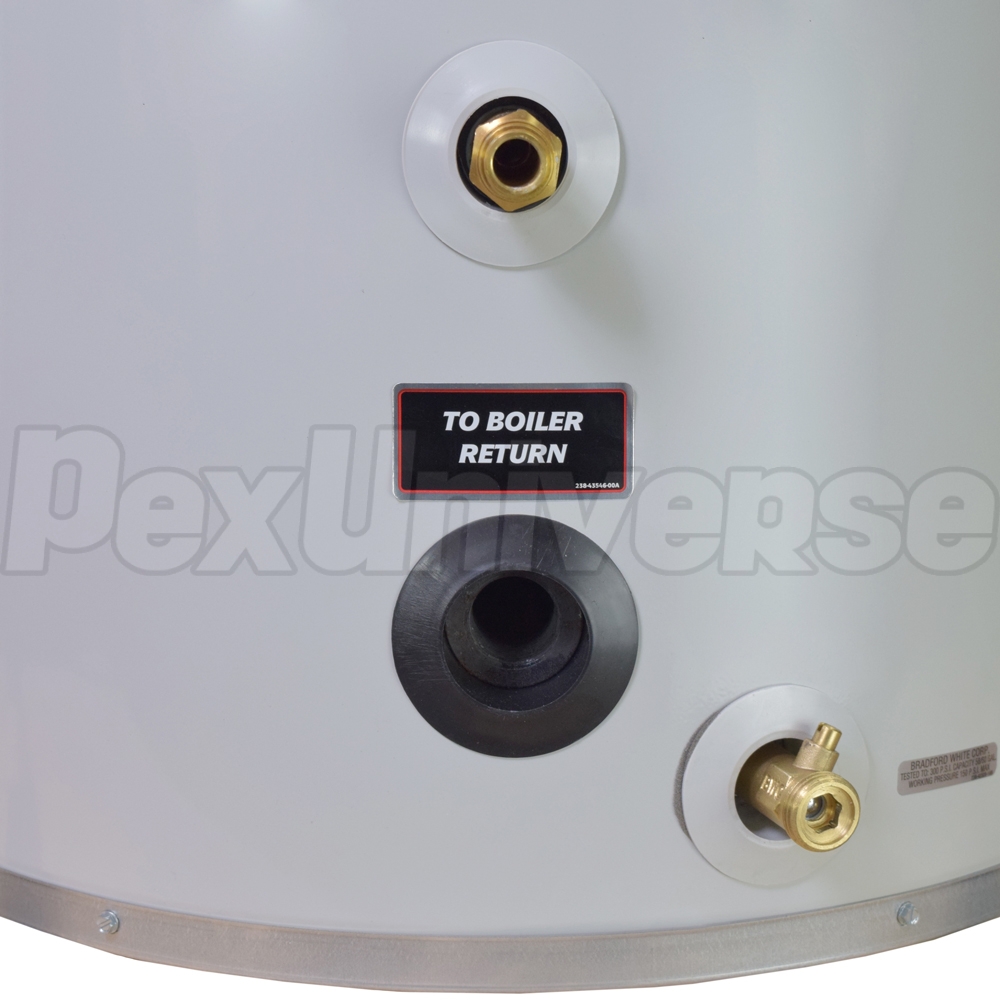

  • Boiler (Heat Exchanger) Supply and Return Connections: 3/4" NPT
  • Max Working Pressure: 150 psi
  • Dimensions (Diameter x Height): 22" x 33-5/8"
  • Insulation Thickness: 2"
  • Weight (lbs): 164.

Read more

Warranty:
Limited lifetime tank and heat exchanger warranties / 6-year limited warranty on component parts
