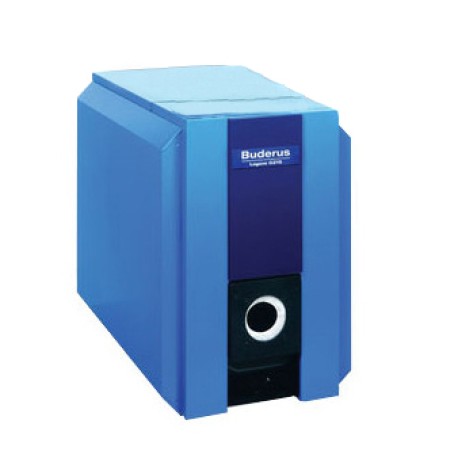

G215/6 Logano Thermostream Oil-Fired Boiler, 223,000 BTU
Brand: Buderus
Part#: 7738000114
Model: G215/6
Usually ships: within 2-3 business days
Buderus G215/6 Logano series model is Energy Star listed, floor-standing, 6-section, residential oil-fired boiler with 87% AFUE and 223,000 BTU (Net) rating. New Thermostream technology allows for unrestricted return water temperature and eliminates thermal shock.
Includes B-Kit comprised of burner mounting bolts set, supply manifold (1-1/2" x 1-1/2" x 1/4"), 1-1/4" x 3/4" black bushing, 1" black plug, 3/4" black 90° elbow, boiler drain, 30 psi relief valve and tridicator gauge.

Note: burner kit sold separately.

For use with part# 7738004867 chimney vent KP kit (includes Riello F10 oil burner, Grundfos circulator w/ IFC, Hydrolevel Hydrostat 3250 control and 3ft flexible oil line).

Note: if you are buying this boiler in conjunction with LT Series indirect water heater, make a note in the checkout and we will include mounting hardware free of charge.

Technical Specifications:
  • DOE Rating (BTU): 256,000
  • Net IBR Rating (BTU): 223,000
  • Oil Firing Rate (GPH): 2.1
  • Efficiency (AFUE): 86%
  • Boiler Type: Non-Condensing (cast-iron heat exchanger)
  • Number of Sections: 6
  • Fuel Type: #2 Oil
  • System Type: Hydronic (Hot Water)
  • Boiler Connections: 1-1/2" NPT
  • Max. Working Pressure: 58 psi
  • Max. Output Water Temperature: 194°F
  • Vent Size: 6"
  • Vent Material: Regular Chimney Pipe or Flexible Stainless Steel (see Literature for tips & details)
  • Mounting Type: Floor-standing
  • Dimensions (Depth x Width x Height): 40-1/2" x 23-1/2" x 34-3/4"
  • Recommended Clearance: 15" side, 20" rear
  • Weight (lbs): 700
  • Water Volume (gallons): 22.5.
