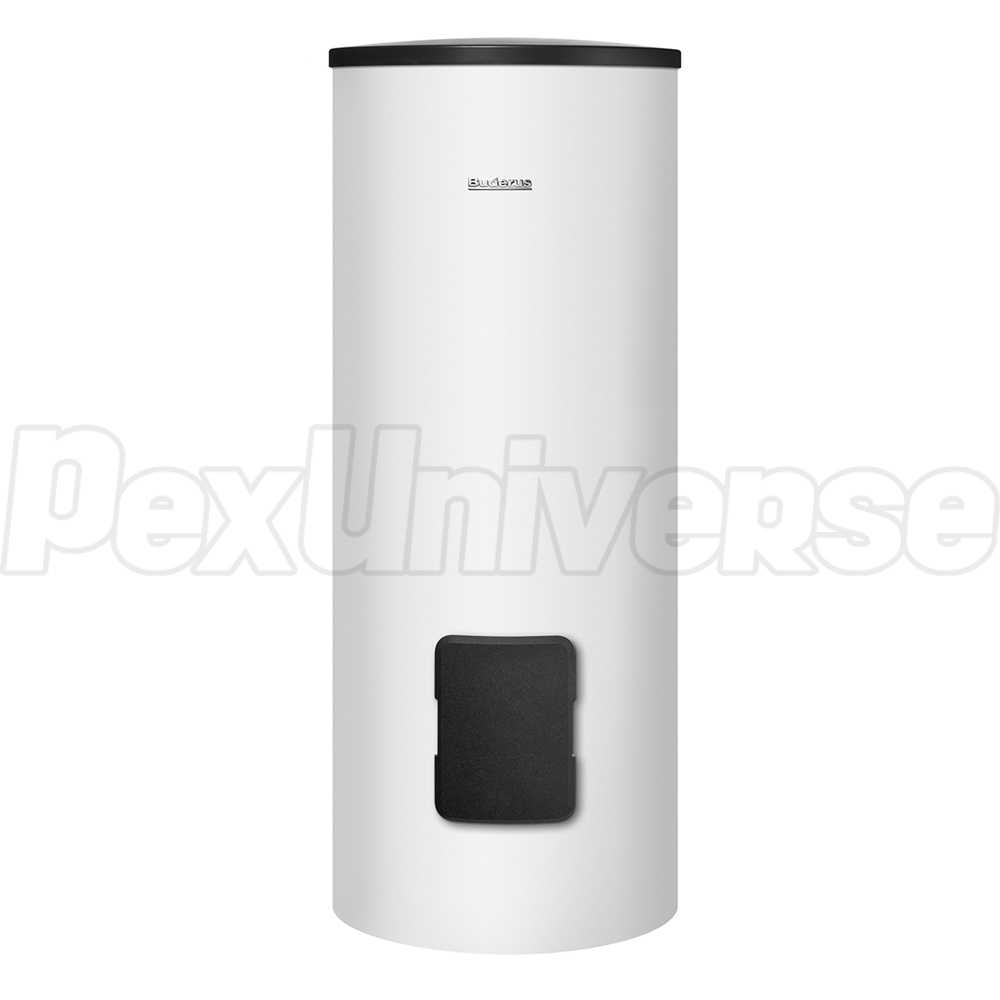

SM100 Dual-coil Indirect Hot Water Heater, 96.9 Gal
Brand: Bosch
Part#: 8718541322
Model: SM100
Usually ships: within 2-3 business days
Buderus SM100 is a vertical, dual-coil indirect hot water tank with 96.9-gallon DHW capacity. It features Thermoglaze ceramic coating (on both tank and coil), (2) magnesium anode rods for superior corrosion protection and large front clean-out for easy access and maintenance. Dual-coil design allows to use two heat sources (i.e. boiler and solar).

Technical Specifications:
  • Domestic Water Capacity (Gallons): 96.9
  • Heat Exchanger Type: Dual Coil
  • Domestic Hot Water (DHW) Connection: 1" NPT
  • Domestic Cold Water Connection: 1" NPT
  • Boiler (Heat Exchanger Coil) Connections: 1" NPT
  • Hot Water Recirculation Connection: 3/4" NPT
  • Max DHW Temperature: 203°F
  • Max DHW Operating Pressure: 150 psi
  • Max Boiler Water Temperature: 230°F
  • Max Boiler/Heat Exchanger Coil Side Pressure (psi): 232
  • Stand-by Heat Loss (°F/hr): 0.5
  • Continuous Domestic Hot Water Flow (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 265.0 - Lower Coil
  • 153.0 - Upper Coil
  • 376.0 - Dual Coil
  • 344.0 - Dual Coil (Parallel)
  • 1st Hour Rating (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 365.0 - Lower Coil
  • 153.0 - Upper Coil
  • 462.0 - Dual Coil
  • 434.0 - Dual Coil (Parallel)
  • Min. Boiler Output (BTU): 169.1 - Lower Coil
  • 87.9 - Upper Coil
  • 235.4 - Dual Coil
  • 202.9 - Dual Coil (Parallel)
  • Min. Boiler Water Flow Rate (GPM): 14.0
  • Dimensions (Diameter x Height): 36-3/8" x 72-1/4"
  • Empty Weight (lbs): 298.

Read more

Warranty:
6-year limited tank warranty for Residential Application / 2-year limited tank warranty for Commercial Application
