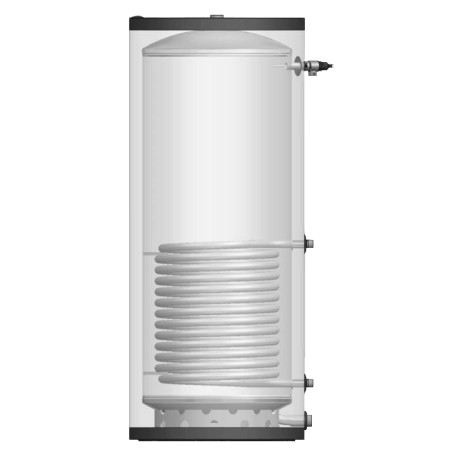

SST450-119 St. Steel Indirect Hot Water Heater, 113.4 Gal
Brand: Bosch
Part#: 7738001645
Model: SST450-119
Usually ships: within 2-3 business days

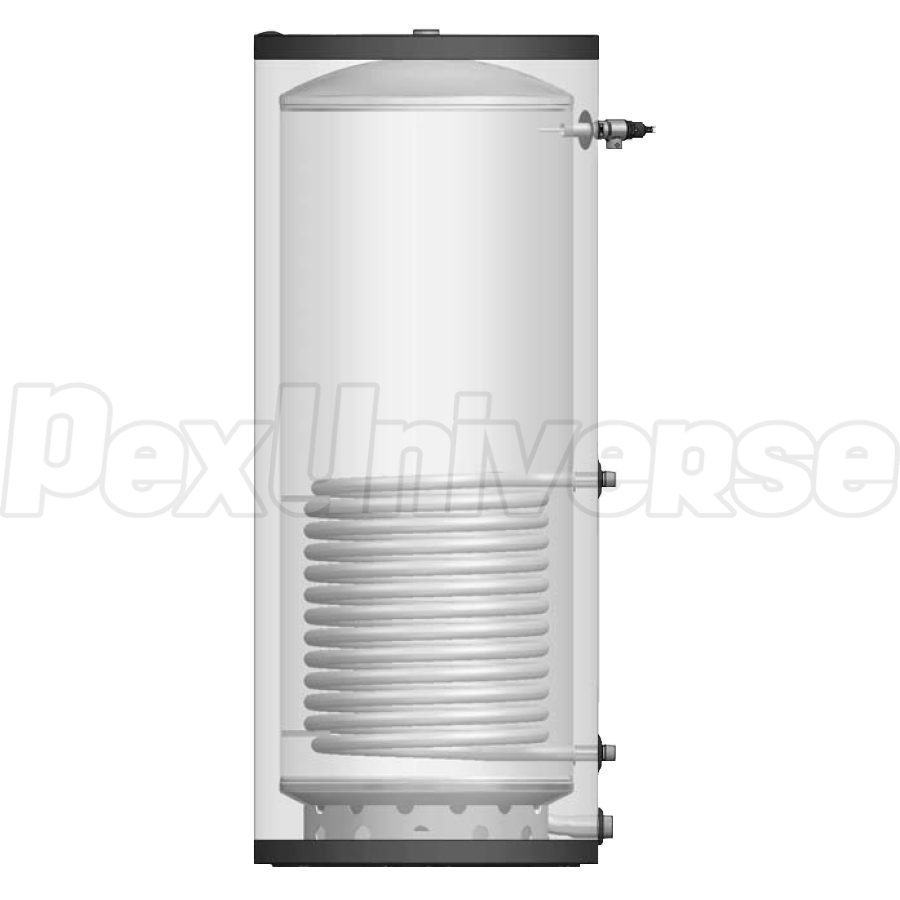

Buderus SST450-119 model is a vertical, single coil indirect hot water tank with 113.4-gallon capacity. It features 316L stainless steel tank and heat exchanger coil for superior corrosion protection.

Technical Specifications:
  • Domestic Water Capacity (Gallons): 113.4
  • Heat Exchanger Type: Single Coil
  • Domestic Hot Water (DHW) Connection: 1-1/2" NPT
  • Domestic Cold Water Connection: 1-1/2" NPT
  • Boiler (Heat Exchanger Coil) Connections: 1" NPT
  • Max DHW Temperature: 194°F
  • Max DHW Operating Pressure: 150 psi
  • Max Boiler Water Temperature: 210°F
  • Stand-by Heat Loss (°F/hr): 0.5
  • Continuous Domestic Hot Water Flow (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 322.0
  • 1st Hour Rating (77°F Rise, 180°F Boiler Temp.) (Gallons/hr): 431.0
  • Min. Boiler Output (BTU): 199,000
  • Min. Boiler Water Flow Rate (GPM): 14.0
  • Dimensions (Diameter x Height): 28" x 69"
  • Empty Weight (lbs): 213.

Read more

Warranty:
10-year limited tank and parts warranty, 11-12-years: 65% paid by purchaser, 13-14-years: 70% paid by purchaser, 15+ years: 75% paid by purchaser
